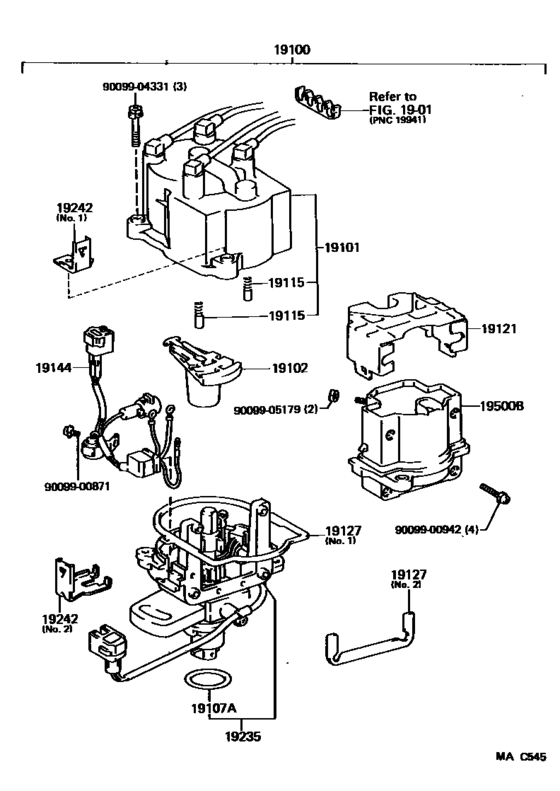

Distributor ([08.1989 - ] (8908- )3EE) Diagram Toyota TERCEL
- Year
- 1989 - 1990
- Sales region
- U.S.A.
- Frame
- EL31
- grade
- DX
- body
- SED
- ENGINE
- 3EE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1989
- To
- 09.1990
- Gear Shift Type
- 3FC
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19040-11020 Distributor Assy[08.1989 - 09.1990] 3EE..EL31 |
19040-11020 |
US $990.08 |
||
|
19101
|
19101
19101-11050 Cap Sub-Assy, DistributorDISTRIBUTOR [08.1989 - 09.1990] 3EE..EL31 |
19101-11050 |
US $135.41 |
||
|
19102
|
19102
19102-11031
Rotor Sub-Assy, Distributor
[08.1988 - 09.1990] 3E#..EL31 |
19102-11031 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-16010 Rotor Sub-Assy, Distributor[08.1988 - 09.1990] 3E#..EL31 |
19102-16010 |
from US $8.96 |
||
|
19107A
|
19107A
90099-14091 O-Ring, Distributor Housing[08.1989 - 09.1990] 3EE..EL31 |
90099-14091 |
from US $3.32 |
||
|
19115
|
19115
19115-63010 Piece, Distributor Cap, Center[08.1989 - 09.1990] 3E#..EL31 |
19115-63010 |
from US $1.40 |
||
|
19121
|
19121
19121-63040
Cover, Dust Proof
[08.1989 - 09.1990] 3EE..EL31 |
19121-63040 |
— | ||
|
19127
|
19127
19127-63010 Packing, Dust Proof[08.1989 - 09.1990] 3EE..EL31 NO.2 |
19127-63010 |
from US $7.34 |
||
|
19127
|
19127
19127-63020 Packing, Dust Proof[08.1989 - 09.1990] 3EE..EL31 NO.1 |
19127-63020 |
US $4.37 |
||
|
19144
|
19144
19144-11060
Lead, Distributor Breaker
[08.1989 - 09.1990] 3EE..EL31 |
19144-11060 |
— | ||
|
19235
|
19235
19235-11020 Housing, DistributorDISTRIBUTOR [08.1989 - 09.1990] 3EE..EL31 |
19235-11020 |
US $294.11 |
||
|
19242
|
19242
19242-11041 Clamp, Cord[08.1989 - 09.1990] 3EE..EL31 NO.1 |
19242-11041 |
US $14.56 |
||
|
19242
|
19242
19242-11060 Clamp, CordCORD [08.1989 - 09.1990] 3EE..EL31 NO.2 |
19242-11060 |
US $14.56 |
||
|
19500B
|
19500B
90919-02135 Coil Assy, Ignition[08.1989 - 09.1990] 3EE..EL31 |
90919-02135 |
US $157.25 |
||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009900942
|
9009900942
90099-00942 New Genuine Part |
90099-00942 |
US $1.75 |
||
|
9009904331
|
9009904331
90099-04331
New Genuine Part
|
90099-04331 |
— | ||
|
9009905179
|
9009905179
90099-05179
New Genuine Part
|
90099-05179 |
— | ||
