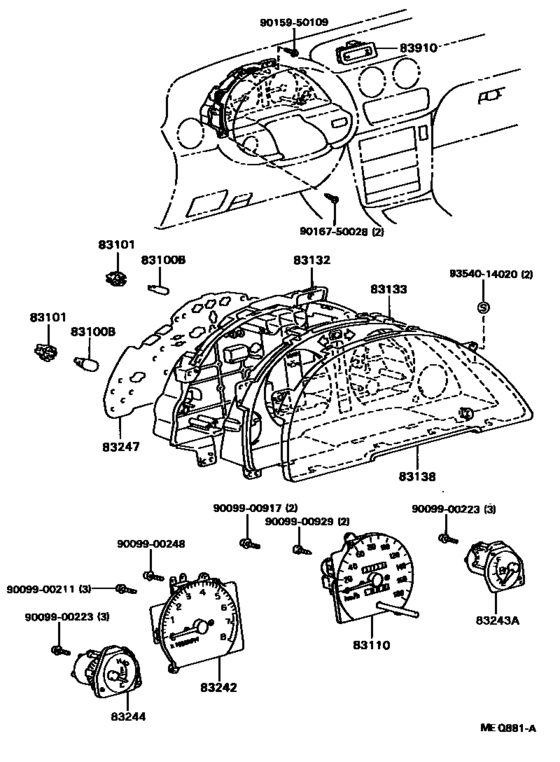

Meter ([09.1990 - ] W(TACHOMETER) (9009- )LHD) Diagram Toyota TERCEL
- Year
- 1990 - 1994
- Sales region
- General
- Frame
- EL40
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1990
- To
- 09.1994
- No.of Doors
- 4DS
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-24020 Bulb, Combination Meter, No.1[09.1990 - 09.1994] EL40 12V 3.4W W(GREEN CAP) |
83109-24020 |
from US $5.97 |
||
|
83100B
|
83100B
83119-32010 Bulb, Combination Meter, No.1[09.1990 - 09.1994] EL40..LHD 14V 3.0W |
83119-32010 |
from US $2.24 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1990 - 09.1994] EL40 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[09.1990 - 08.1992] EL40 12V 1.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[09.1990 - 08.1992] EL40..LHD 14V 3.4W,GREEN CAP |
83101-14040 |
US $2.93 |
||
|
83101
|
83101
83101-32020 Socket Sub-Assy, Combination Meter Bulb[09.1990 - 08.1992] EL40..LHD 14V 3.0W |
83101-32020 |
from US $2.22 |
||
|
83110
|
83110
83110-1G300 Speedometer Assy[09.1990 - 11.1993] EL40..LHD |
83110-1G300 |
US $388.75 |
||
|
83110
|
83110
83110-1G310 Speedometer Assy[09.1990 - 09.1994] EL40..LHD..GEN MILE & KM |
83110-1G310 |
US $388.75 |
||
|
83110
|
83110
83110-1G340 Speedometer Assy[09.1990 - 11.1993] EL40..LHD..GEN W(TACHOMETER) |
83110-1G340 |
US $388.75 |
||
| replacement | |||||
|
83110
|
83110
83110-1G341 Speedometer Assy[09.1990 - 11.1993] EL40..LHD..GEN W(TACHOMETER) |
83110-1G341 |
US $388.75 |
||
|
83110
|
83110
83110-1G341 Speedometer Assy[11.1993 - 09.1994] EL40..LHD..GEN W(TACHOMETER) |
83110-1G341 |
US $388.75 |
||
|
83110
|
83110
83110-1G350 Speedometer Assy[09.1990 - 09.1994] EL40..LHD..GEN MILE & KM & W(TACHOMETER) |
83110-1G350 |
US $388.75 |
||
|
83110
|
83110
83110-1G370 Speedometer Assy[11.1993 - 09.1994] EL40..LHD..GEN |
83110-1G370 |
US $381.47 |
||
|
83132
|
83132
83132-1G270
Case, Combination Meter
[09.1990 - 09.1994] EL40..LHD..GEN W(TACHOMETER) |
83132-1G270 |
— | ||
|
83132
|
83132
83132-1G390
Case, Combination Meter
[09.1990 - 08.1992] EL40..LHD |
83132-1G390 |
— | ||
|
83132
|
83132
83132-1G850
Case, Combination Meter
[08.1992 - 09.1994] EL40..LHD..GEN |
83132-1G850 |
— | ||
|
83133
|
83133
83133-1G230
Plate, Combination Meter, No.1
[09.1990 - 09.1994] EL40..LHD..GEN W(TACHOMETER) |
83133-1G230 |
— | ||
|
83133
|
83133
83133-1G250
Plate, Combination Meter, No.1
[09.1990 - 09.1994] EL40..LHD |
83133-1G250 |
— | ||
|
83138
|
83138
83138-16570
Glass, Speedometer
[09.1990 - 09.1994] EL40..LHD |
83138-16570 |
— | ||
|
83242
|
83242
83242-16750 Tachometer Assy, EngineENGINE [09.1990 - 08.1992] EL40..LHD |
83242-16750 |
US $483.39 |
||
|
83242
|
83242
83242-1G230 Tachometer Assy, EngineENGINE [08.1992 - 09.1994] EL40..LHD..GEN |
83242-1G230 |
US $484.85 |
||
|
83243A
|
83243A
83243-1G090 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [09.1990 - 09.1994] EL40..LHD..GEN |
83243-1G090 |
US $78.62 |
||
|
83243A
|
83243A
83243-1G110 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [09.1990 - 09.1994] EL40..LHD..GEN W(TACHOMETER) |
83243-1G110 |
US $122.30 |
||
|
83244
|
83244
83244-16630 Gauge Sub-Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [09.1990 - 09.1994] EL40..LHD..GEN |
83244-16630 |
US $90.27 |
||
|
83247
|
83247
83149-16290
Plate, Meter Circuit
[09.1990 - 08.1992] EL40..LHD |
83149-16290 |
— | ||
| replacement | |||||
|
83247
|
83247
83149-16270
Plate, Meter Circuit
[09.1990 - 08.1992] EL40..LHD |
83149-16270 |
— | ||
|
83247
|
83247
83149-16370
Plate, Meter Circuit
[09.1990 - 08.1992] EL40..LHD W(TACHOMETER) |
83149-16370 |
— | ||
| replacement | |||||
|
83247
|
83247
83149-16470
Plate, Meter Circuit
[09.1990 - 08.1992] EL40..LHD W(TACHOMETER) |
83149-16470 |
— | ||
|
83247
|
83247
83149-16570
Plate, Meter Circuit
[08.1992 - 09.1994] EL40..LHD..GEN |
83149-16570 |
— | ||
|
83247
|
83247
83149-16630
Plate, Meter Circuit
[08.1992 - 09.1994] EL40..LHD..GEN W(TACHOMETER) |
83149-16630 |
— | ||
|
83910
|
83910
83910-16170-01 Clock Assy[09.1990 - 08.1992] EL40..LHD BLACK,TRIM2# |
83910-16170-01 |
US $426.61 |
||
| replacement | |||||
|
83910
|
83910
83910-16170-22 Clock Assy[09.1990 - 08.1992] EL40..LHD BLACK,TRIM2# |
83910-16170-22 |
US $426.61 |
||
|
83910
|
83910
83910-16170-04 Clock Assy[09.1990 - 08.1992] EL40..LHD GRAISH BLUE,TRIM8# |
83910-16170-04 |
US $426.61 |
||
| replacement | |||||
|
83910
|
83910
83910-16170-W4 Clock Assy[09.1990 - 08.1992] EL40..LHD GRAISH BLUE,TRIM8# |
83910-16170-W4 |
US $426.61 |
||
|
83910
|
83910
83910-16170-22 Clock Assy[08.1992 - 09.1994] EL40..LHD BLACK,TRIM2# |
83910-16170-22 |
US $426.61 |
||
|
83910
|
83910
83910-16170-W4 Clock Assy[08.1992 - 09.1994] EL40..LHD EISEN BLUE,TRIM8# |
83910-16170-W4 |
US $426.61 |
||
|
9009900211
|
9009900211
90099-00211
New Genuine Part
|
90099-00211 |
— | ||
|
9009900223
|
9009900223
90099-00223
New Genuine Part
|
90099-00223 |
— | ||
|
9009900248
|
9009900248
90099-00248
New Genuine Part
|
90099-00248 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9015950109
|
9015950109
90159-50109 New Genuine Part |
90159-50109 |
US $2.33 |
||
|
9016750028
|
9016750028
90167-50028
Direct
|
90167-50028 |
— | ||
| replacement | |||||
|
9016750028
|
9016750028
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9354014020
|
9354014020
93540-14020 Screw |
93540-14020 |
US $1.92 |
||
