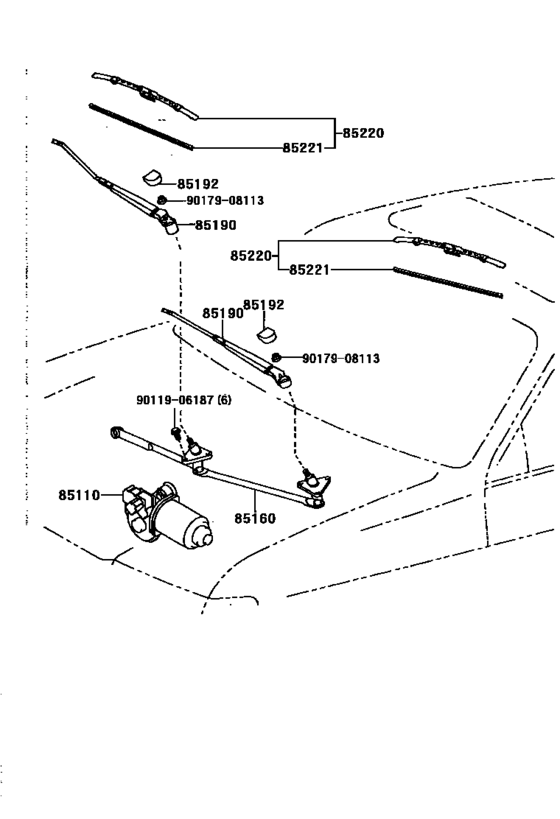

Windshield Wiper ([09.1990 - ] (9009- )LHD) Diagram Toyota TERCEL
- Year
- 1990 - 1994
- Sales region
- General
- Frame
- EL40
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1990
- To
- 09.1994
- No.of Doors
- 4DS
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-16390 Motor Assy, Windshield WiperWINDSHIELD WIPER [09.1990 - 08.1992] EL40..LHD |
85110-16390 |
US $349.44 |
||
|
85110
|
85110
85110-16511 Motor Assy, Windshield WiperWINDSHIELD WIPER [10.1992 - 09.1994] EL40..LHD |
85110-16511 |
US $384.38 |
||
| replacement | |||||
|
85110
|
85110
85110-16550 Motor Assy, Windshield WiperWINDSHIELD WIPER [10.1992 - 09.1994] EL40..LHD |
85110-16550 |
US $368.37 |
||
|
85110
|
85110
85110-16531 Motor Assy, Windshield WiperWINDSHIELD WIPER [08.1992 - 10.1992] EL40..LHD |
85110-16531 |
US $334.88 |
||
|
85160
|
85160
85150-16410 Link Assy, Windshield WiperWINDSHIELD WIPER [09.1990 - 08.1992] EL40..LHD |
85150-16410 |
US $133.95 |
||
|
85160
|
85160
85150-16411 Link Assy, Windshield WiperWINDSHIELD WIPER [08.1992 - 09.1994] EL40..LHD |
85150-16411 |
US $138.32 |
||
|
85190
|
85190
85211-16080
Arm Assy, Windshield Wiper
[09.1990 - 11.1991] EL40..LHD RH |
85211-16080 |
— | ||
|
85190
|
85190
85211-16081
Arm Assy, Windshield Wiper
[11.1991 - 09.1994] EL40..LHD RH |
85211-16081 |
— | ||
|
85190
|
85190
85221-16120
Arm Assy, Windshield Wiper
[09.1990 - 11.1991] EL40..LHD LH |
85221-16120 |
— | ||
| replacement | |||||
|
85190
|
85190
85221-16121
Arm Assy, Windshield Wiper
[09.1990 - 11.1991] EL40..LHD LH |
85221-16121 |
— | ||
|
85190
|
85190
85221-16121
Arm Assy, Windshield Wiper
[11.1991 - 09.1994] EL40..LHD LH |
85221-16121 |
— | ||
|
85192
|
85192
85192-12800 Cover, Windshield Wiper Arm[09.1990 - 11.1991] EL40 |
85192-12800 |
from US $2.07 |
||
| replacement | |||||
|
85192
|
85192
85292-12020 Cover, Windshield Wiper Arm[09.1990 - 11.1991] EL40 |
85292-12020 |
from US $1.52 |
||
|
85192
|
85192
85292-12020 Cover, Windshield Wiper Arm[11.1991 - 09.1994] EL40 |
85292-12020 |
from US $1.52 |
||
|
85220
|
85220
85212-16090 Blade Assy, Windshield WiperWINDSHIELD WIPER [09.1990 - 11.1991] EL40..LHD RH |
85212-16090 |
US $36.69 |
||
| replacement | |||||
|
85220
|
85220
85212-20301 Blade Assy, Windshield WiperWINDSHIELD WIPER [09.1990 - 11.1991] EL40..LHD RH |
85212-20301 |
US $36.55 |
||
|
85220
|
85220
85212-16091 Blade Assy, Windshield WiperWINDSHIELD WIPER [11.1991 - 11.1992] EL40..LHD RH |
85212-16091 |
US $36.55 |
||
| replacement | |||||
|
85220
|
85220
85212-30271 Blade Assy, Windshield Wiper[11.1991 - 11.1992] EL40..LHD RH |
85212-30271 |
US $36.55 |
||
|
85220
|
85220
85212-16092 Blade Assy, Windshield WiperWINDSHIELD WIPER [11.1992 - 09.1994] EL40..LHD RH |
85212-16092 |
US $36.55 |
||
| replacement | |||||
|
85220
|
85220
85212-30271 Blade Assy, Windshield Wiper[11.1992 - 09.1994] EL40..LHD RH |
85212-30271 |
US $36.55 |
||
|
85220
|
85220
85222-1G010 Blade Assy, Windshield WiperWINDSHIELD WIPER [09.1990 - 11.1991] EL40..LHD LH |
85222-1G010 |
US $36.55 |
||
| replacement | |||||
|
85220
|
85220
85222-60120 Blade Assy, Windshield Wiper[09.1990 - 11.1991] EL40..LHD LH |
85222-60120 |
from US $24.98 |
||
|
85220
|
85220
85222-1G011 Blade Assy, Windshield WiperWINDSHIELD WIPER [11.1991 - 11.1992] EL40..LHD LH |
85222-1G011 |
US $36.55 |
||
| replacement | |||||
|
85220
|
85220
85222-60120 Blade Assy, Windshield Wiper[11.1991 - 11.1992] EL40..LHD LH |
85222-60120 |
from US $24.98 |
||
|
85220
|
85220
85222-1G012 Blade Assy, Windshield WiperWINDSHIELD WIPER [11.1992 - 09.1994] EL40..LHD LH |
85222-1G012 |
US $36.55 |
||
| replacement | |||||
|
85220
|
85220
85222-60120 Blade Assy, Windshield Wiper[11.1992 - 09.1994] EL40..LHD LH |
85222-60120 |
from US $24.98 |
||
|
85221
|
85221
85213-16080 Blade, Windshield WiperWINDSHIELD WIPER [09.1990 - 12.1991] EL40..LHD RH |
85213-16080 |
US $15.29 |
||
| replacement | |||||
|
85221
|
85221
85214-20330 Rubber, Wiper, RhWIPER, RH [09.1990 - 12.1991] EL40..LHD RH |
85214-20330 |
from US $14.24 |
||
|
85221
|
85221
85213-16100 Blade, Windshield WiperWINDSHIELD WIPER [12.1991 - 11.1992] EL40..LHD RH |
85213-16100 |
US $15.29 |
||
| replacement | |||||
|
85221
|
85221
85214-20330 Rubber, Wiper, RhWIPER, RH [12.1991 - 11.1992] EL40..LHD RH |
85214-20330 |
from US $14.24 |
||
|
85221
|
85221
85213-30270 Blade, Windshield WiperWINDSHIELD WIPER [11.1992 - 09.1994] EL40..LHD RH |
85213-30270 |
US $15.29 |
||
| replacement | |||||
|
85221
|
85221
85214-20330 Rubber, Wiper, RhWIPER, RH [11.1992 - 09.1994] EL40..LHD RH |
85214-20330 |
from US $14.24 |
||
|
85221
|
85221
85213-60020
Blade, Windshield Wiper
[11.1992 - 09.1994] EL40..LHD LH |
85213-60020 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-20330 Rubber, Wiper, RhWIPER, RH [11.1992 - 09.1994] EL40..LHD LH |
85214-20330 |
from US $14.24 |
||
|
85221
|
85221
85223-1G030 Blade, Windshield WiperWINDSHIELD WIPER [09.1990 - 11.1992] EL40..LHD LH |
85223-1G030 |
US $15.29 |
||
| replacement | |||||
|
85221
|
85221
85214-20330 Rubber, Wiper, RhWIPER, RH [09.1990 - 11.1992] EL40..LHD LH |
85214-20330 |
from US $14.24 |
||
|
9011906187
|
9011906187
90119-06187
New Genuine Part
|
90119-06187 |
— | ||
| replacement | |||||
|
9011906187
|
9011906187
90119-06490 BOLT W-WASHER |
90119-06490 |
from US $1.40 |
||
|
9017908113
|
9017908113
90179-08113 Nut (For Front Wiper Arm Setting) |
90179-08113 |
from US $1.92 |
||
