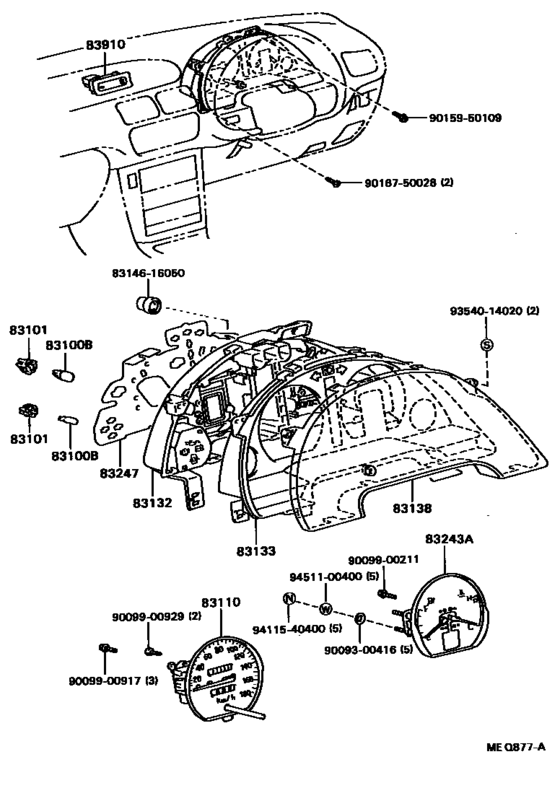

Meter ([09.1990 - ] W/O(TACHOMETER) (9009- )RHD) Diagram Toyota TERCEL
- Year
- 1990 - 1994
- Sales region
- General
- Frame
- EL40
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1990
- To
- 09.1994
- No.of Doors
- 4DS
- Vehicle Model
- TERCEL
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-24020 Bulb, Combination Meter, No.1[09.1990 - 09.1994] EL40 12V 3.4W W(GREEN CAP) |
83109-24020 |
from US $5.95 |
||
|
83100B
|
83100B
83119-24590
Bulb, Combination Meter, No.1
[08.1992 - 09.1994] EL40..RHD 14V 3.0W |
83119-24590 |
— | ||
|
83100B
|
83100B
84999-50010 Bulb, Indicator Lamp[09.1990 - 09.1994] EL40..RHD 12V 3.4W |
84999-50010 |
US $3.14 |
||
|
83100B
|
83100B
84999-50180 Bulb, Indicator Lamp[08.1992 - 09.1994] EL40..RHD 12V 1.2W |
84999-50180 |
US $6.24 |
||
|
83100B
|
83100B
90072-02001 Bulb, Combination Meter, No.1[09.1990 - 09.1994] EL40..RHD 12V 3.4W,GREEN CAP |
90072-02001 |
US $3.84 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1990 - 09.1994] EL40 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[09.1990 - 08.1992] EL40 12V 1.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[09.1990 - 08.1992] EL40..RHD 14V 3.4W,GREEN CAP |
83101-14040 |
US $2.93 |
||
|
83101
|
83101
84999-50110 Socket, Indicator Lamp[09.1990 - 09.1994] EL40..RHD 12V 3.4W |
84999-50110 |
US $7.57 |
||
|
83101
|
83101
90072-01001 Socket Sub-Assy, Combination Meter Bulb[09.1990 - 09.1994] EL40..RHD 12V 3.4W,GREEN CAP |
90072-01001 |
US $3.79 |
||
|
83110
|
83110
83110-1G210 Speedometer Assy[09.1990 - 11.1993] EL40..RHD |
83110-1G210 |
US $388.75 |
||
| replacement | |||||
|
83110
|
83110
83110-1G211 Speedometer Assy[09.1990 - 11.1993] EL40..RHD |
83110-1G211 |
US $388.75 |
||
|
83110
|
83110
83110-1G211 Speedometer Assy[11.1993 - 09.1994] EL40..RHD |
83110-1G211 |
US $388.75 |
||
|
83110
|
83110
83110-1G220 Speedometer Assy[09.1990 - 09.1994] EL40..RHD MILE & KM |
83110-1G220 |
US $388.75 |
||
|
83110
|
83110
83110-1G240 Speedometer Assy[09.1990 - 11.1993] EL40..RHD W(TACHOMETER) |
83110-1G240 |
US $388.75 |
||
| replacement | |||||
|
83110
|
83110
83110-1G360 Speedometer Assy[09.1990 - 11.1993] EL40..RHD W(TACHOMETER) |
83110-1G360 |
US $388.75 |
||
|
83110
|
83110
83110-1G250 Speedometer Assy[09.1990 - 09.1994] EL40..RHD MILE & KM & W(TACHOMETER) |
83110-1G250 |
US $388.75 |
||
|
83110
|
83110
83110-1G360 Speedometer Assy[11.1993 - 09.1994] EL40..RHD W(TACHOMETER) |
83110-1G360 |
US $388.75 |
||
|
83132
|
83132
83132-16300 Case, Combination Meter[09.1990 - 08.1992] EL40..RHD W(TACHOMETER) |
83132-16300 |
US $46.74 |
||
|
83132
|
83132
83132-1G550
Case, Combination Meter
[09.1990 - 08.1992] EL40..RHD |
83132-1G550 |
— | ||
|
83132
|
83132
83132-1G610
Case, Combination Meter
[08.1992 - 09.1994] EL40..RHD |
83132-1G610 |
— | ||
|
83132
|
83132
83132-1S010 Case, Combination Meter[08.1992 - 09.1994] EL40..RHD W(TACHOMETER) |
83132-1S010 |
US $59.55 |
||
|
83133
|
83133
83133-16100 Plate, Combination Meter, No.1[09.1990 - 09.1994] EL40..RHD W(TACHOMETER) |
83133-16100 |
US $55.18 |
||
|
83133
|
83133
83133-1G110
Plate, Combination Meter, No.1
[09.1990 - 09.1994] EL40..RHD |
83133-1G110 |
— | ||
|
83138
|
83138
83138-16220 Glass, Speedometer[09.1990 - 09.1994] EL40..RHD W(TACHOMETER) |
83138-16220 |
US $27.96 |
||
|
83138
|
83138
83138-16550
Glass, Speedometer
[09.1990 - 09.1994] EL40..RHD |
83138-16550 |
— | ||
|
83243A
|
83243A
83243-16180 Gauge Sub-Assy, Fuel Receiver[09.1990 - 08.1992] EL40..RHD W(TACHOMETER) |
83243-16180 |
US $70.47 |
||
|
83243A
|
83243A
83243-16200 Gauge Sub-Assy, Fuel Receiver[08.1992 - 09.1994] EL40..RHD W(TACHOMETER) |
83243-16200 |
US $70.47 |
||
|
83243A
|
83243A
83243-16870 Gauge Sub-Assy, Fuel Receiver[09.1990 - 09.1994] EL40..RHD |
83243-16870 |
US $78.62 |
||
|
83247
|
83247
83149-16130
Plate, Meter Circuit
[09.1990 - 08.1992] EL40..RHD |
83149-16130 |
— | ||
| replacement | |||||
|
83247
|
83247
83149-16030
Plate, Meter Circuit
[09.1990 - 08.1992] EL40..RHD |
83149-16030 |
— | ||
|
83247
|
83247
83149-16220 Plate, Meter CircuitMETER CIRCUIT [09.1990 - 08.1992] EL40..RHD W(TACHOMETER) |
83149-16220 |
US $57.95 |
||
|
83247
|
83247
83149-1G010
Plate, Meter Circuit
[08.1992 - 09.1994] EL40..RHD |
83149-1G010 |
— | ||
|
83247
|
83247
83149-1G270 Plate, Meter CircuitMETER CIRCUIT [08.1992 - 09.1994] EL40..RHD W(TACHOMETER) |
83149-1G270 |
US $57.95 |
||
|
83910
|
83910
83910-16160-01 Clock Assy[09.1990 - 08.1992] EL40..RHD BLACK,TRIM2# |
83910-16160-01 |
US $423.70 |
||
| replacement | |||||
|
83910
|
83910
83910-16160-22 Clock Assy[09.1990 - 08.1992] EL40..RHD BLACK,TRIM2# |
83910-16160-22 |
US $423.70 |
||
|
83910
|
83910
83910-16160-04 Clock Assy[09.1990 - 08.1992] EL40..RHD GRAISH BLUE,TRIM8# |
83910-16160-04 |
US $423.70 |
||
| replacement | |||||
|
83910
|
83910
83910-16160-W4 Clock Assy[09.1990 - 08.1992] EL40..RHD GRAISH BLUE,TRIM8# |
83910-16160-W4 |
US $423.70 |
||
|
83910
|
83910
83910-16160-22 Clock Assy[08.1992 - 09.1994] EL40..RHD BLACK,TRIM2# |
83910-16160-22 |
US $423.70 |
||
|
83910
|
83910
83910-16160-W4 Clock Assy[08.1992 - 09.1994] EL40..RHD EISEN BLUE,TRIM8# |
83910-16160-W4 |
US $423.70 |
||
|
8314616050
|
8314616050
83146-16050
Grommet, Meter Glass
|
83146-16050 |
— | ||
|
9009300416
|
9009300416
90093-00416
New Genuine Part
|
90093-00416 |
— | ||
|
9009900211
|
9009900211
90099-00211
New Genuine Part
|
90099-00211 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9015950109
|
9015950109
90159-50109 New Genuine Part |
90159-50109 |
US $2.33 |
||
|
9016750028
|
9016750028
90167-50028
Direct
|
90167-50028 |
— | ||
| replacement | |||||
|
9016750028
|
9016750028
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9354014020
|
9354014020
93540-14020 Screw |
93540-14020 |
US $1.92 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
