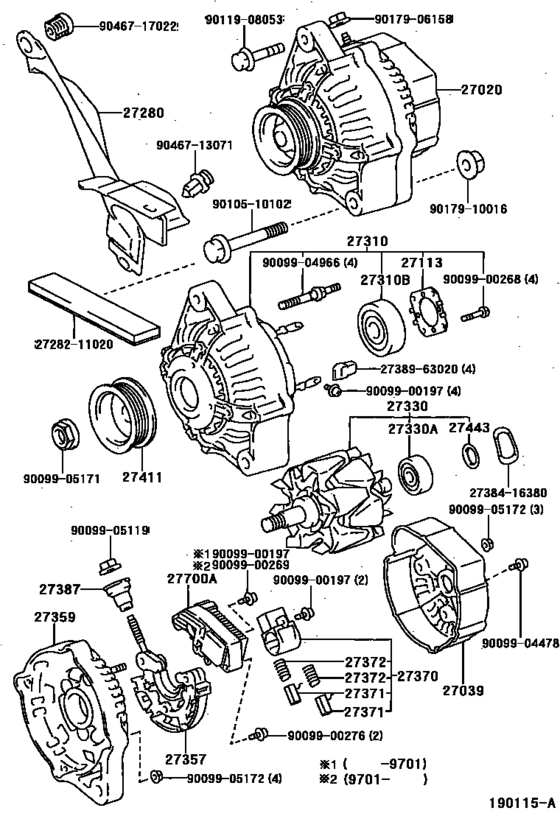

Alternator ([09.1994 - ] 12V 70A (9409- )5EFE..ATM) Diagram Toyota TERCEL
- Year
- 1994 - 1996
- Sales region
- U.S.A.
- Frame
- EL53
- grade
- STD
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1994
- To
- 08.1996
- Gear Shift Type
- 3FC
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-11340 Alternator Assy[09.1994 - 08.1996] 5EFE..EL53..ATM 12V 70A |
27060-11340 |
US $1,557.92 |
||
| replacement | |||||
|
27020
|
27020
27060-11270 Alternator Assy[09.1994 - 08.1996] 5EFE..EL53..ATM 12V 70A |
27060-11270 |
US $1,557.92 |
||
|
27039
|
27039
27039-73020
Cover, Alternator Rear End
[09.1994 - 08.1996] 5EFE..EL53..ATM 12V 70A |
27039-73020 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-16380
Cover, Alternator Rear End
[09.1994 - 08.1996] 5EFE..EL53..ATM 12V 70A |
27039-16380 |
— | ||
|
27113
|
27113
27312-70200
Plate, Bearing Retainer, Alternator
[09.1994 - 08.1996] 5EFE..EL53..ATM 12V 70A |
27312-70200 |
— | ||
|
27280
|
27280
27280-11010 Cover Assy, Alternator Splash GuardALTERNATOR SPLASH GUARD [09.1994 -] 5EFE..EL53 |
27280-11010 |
US $33.49 |
||
|
27310
|
27310
27310-11270
Frame Assy, Drive End, Alternator
[09.1994 - 08.1996] 5EFE..EL53..ATM 12V 70A |
27310-11270 |
— | ||
|
27310B
|
27310B
90099-10178 Bearing(For Alternator Drive End Frame)[09.1994 - 08.1996] 5EFE..EL53..ATM 12V 70A |
90099-10178 |
from US $17.65 |
||
|
27330
|
27330
27330-64570
Rotor Assy, Alternator
[09.1994 - 08.1996] 5EFE..EL53..ATM 12V 70A |
27330-64570 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[09.1994 - 08.1996] 5EFE..EL53..ATM |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-63020 Holder, Alternator, W/rectifier[09.1994 - 08.1996] 5EFE..EL53..ATM 12V 70A |
27357-63020 |
US $152.01 |
||
|
27359
|
27359
27359-16180
Frame, Alternator Rectifier End
[09.1994 - 01.1996] 5EFE..EL53..ATM |
27359-16180 |
— | ||
| replacements | |||||
|
27359
|
27359
27359-16181
Frame, Alternator Rectifier End
[09.1994 - 01.1996] 5EFE..EL53..ATM |
27359-16181 |
— | ||
|
27359
|
27359
27384-16380
Washer
[09.1994 - 01.1996] 5EFE..EL53..ATM |
27384-16380 |
— | ||
|
27359
|
27359
27359-16181
Frame, Alternator Rectifier End
[01.1996 - 08.1996] 5EFE..EL53..ATM 12V 70A |
27359-16181 |
— | ||
|
27370
|
27370
27370-54450
Holder Assy, Alternator Brush
[09.1994 - 01.1996] 5EFE..EL53 |
27370-54450 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-58320 Holder Assy, Alternator Brush[09.1994 - 01.1996] 5EFE..EL53 |
27370-58320 |
from US $16.97 |
||
|
27370
|
27370
27370-58320 Holder Assy, Alternator Brush[01.1996 - 08.1996] 5EFE..EL53..ATM 12V 70A |
27370-58320 |
from US $16.97 |
||
|
27371
|
27371
27371-70300 Brush, Alternator[09.1994 - 12.1997] 5EFE..EL53 |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-63020
Spring, Alternator Brush
[09.1994 - 12.1997] 5EFE..EL53 |
27372-63020 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[09.1994 - 12.1997] 5EFE..EL53 |
27372-87501 |
— | ||
|
27387
|
27387
27387-70170
Insulator, Terminal
[09.1994 - 08.1996] 5EFE..EL53..ATM 12V 70A |
27387-70170 |
— | ||
|
27411
|
27411
27411-65010
Pulley, Alternator
[09.1994 - 08.1996] 5EFE..EL53..ATM 12V 70A |
27411-65010 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[09.1994 -] 5EFE..EL53 |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-11080 Regulator Assy, Generator[09.1994 - 08.1996] 5EFE..EL53..ATM |
27700-11080 |
US $263.54 |
||
| replacement | |||||
|
27700A
|
27700A
27700-11070 Regulator Assy, Generator[09.1994 - 08.1996] 5EFE..EL53..ATM |
27700-11070 |
US $260.62 |
||
|
2728211020
|
2728211020
27282-11020 New Genuine Part |
27282-11020 |
US $3.49 |
||
|
2738416380
|
2738416380
27384-16380
Washer
|
27384-16380 |
— | ||
|
2738963020
|
2738963020
27389-63020
Insulator, Terminal
|
27389-63020 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009900269
|
9009900269
90099-00269
New Genuine Part
|
90099-00269 |
— | ||
|
9009900276
|
9009900276
90099-00276 New Genuine Part |
90099-00276 |
US $0.87 |
||
|
9009904478
|
9009904478
90099-04478
New Genuine Part
|
90099-04478 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9010510102
|
9010510102
90105-10102 BOLT |
90105-10102 |
US $4.02 |
||
|
9011908053
|
9011908053
90119-08053 New Genuine Part |
90119-08053 |
US $1.75 |
||
| replacement | |||||
|
9011908053
|
9011908053
91661-40825 New Genuine Part |
91661-40825 |
US $1.75 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9046713071
|
9046713071
90467-13071 New Genuine Part |
90467-13071 |
US $3.64 |
||
|
9046717022
|
9046717022
90467-17022 New Genuine Part |
90467-17022 |
US $3.06 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
