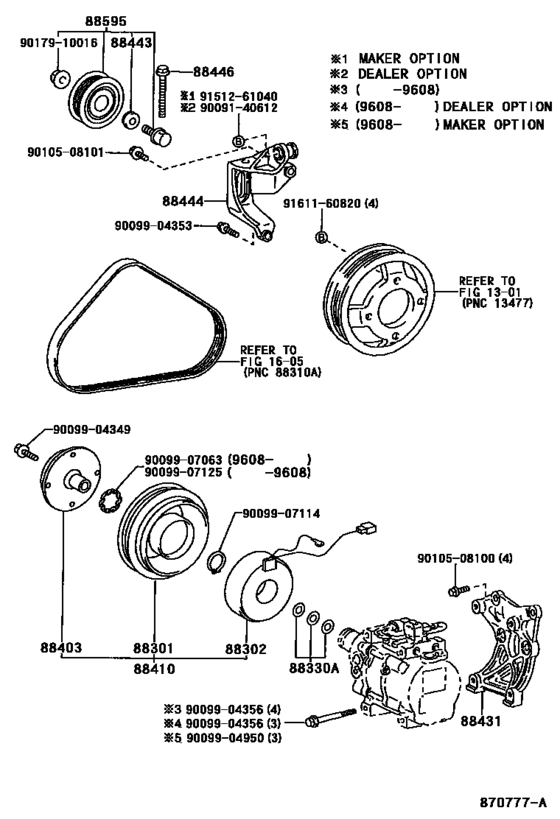

Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) Diagram Toyota TERCEL
- Year
- 1994 - 1996
- Sales region
- U.S.A.
- Frame
- EL53
- grade
- STD
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1994
- To
- 08.1996
- Gear Shift Type
- 3FC
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-16130
Rotor Sub-Assy, Magnet Clutch
[09.1994 - 08.1996] EL53..USA PUERTORICO SPEC |
88412-16130 |
— | ||
|
88301
|
88301
88412-16150
Rotor Sub-Assy, Magnet Clutch
[09.1994 - 08.1996] EL53 |
88412-16150 |
— | ||
|
88302
|
88302
88411-1A040
Stator Sub-Assy, Magnet Clutch
[09.1994 - 08.1996] EL53 |
88411-1A040 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[09.1994 -] EL53 |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-1A010
Hub Sub-Assy, Magnet Clutch
[09.1994 - 08.1996] EL53 |
88403-1A010 |
— | ||
|
88410
|
88410
88410-16181 Clutch Assy, Magnet[09.1994 - 08.1996] EL53..USA PUERTORICO SPEC |
88410-16181 |
US $551.82 |
||
|
88410
|
88410
88410-16270 Clutch Assy, MagnetMAGNET [09.1994 - 08.1996] EL53 |
88410-16270 |
US $380.31 |
||
|
88431
|
88431
88431-16060
Bracket, Compressor Mounting, No.1
[09.1994 - 08.1996] EL53..USA PUERTORICO SPEC |
88431-16060 |
— | ||
|
88431
|
88431
88431-16090
Bracket, Compressor Mounting, No.1
[09.1994 - 08.1996] EL53 |
88431-16090 |
— | ||
|
88443
|
88443
88443-36010 Collar, Idle Pulley[09.1994 - 12.1997] EL53 |
88443-36010 |
from US $1.67 |
||
|
88444
|
88444
88444-16030
Bracket, Idle Pulley
[09.1994 -] EL53 |
88444-16030 |
— | ||
|
88446
|
88446
88446-12030
Bolt, Idle Pulley
[09.1994 -] EL53 |
88446-12030 |
— | ||
|
88595
|
88595
88440-16050
Pulley, Cooler Compressor Idle
[09.1994 -] EL53 |
88440-16050 |
— | ||
|
9009140612
|
9009140612
90091-40612
New Genuine Part
|
90091-40612 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904353
|
9009904353
90099-04353
New Genuine Part
|
90099-04353 |
— | ||
|
9009904356
|
9009904356
90099-04356 BOLT |
90099-04356 |
US $2.77 |
||
| replacement | |||||
|
9009904356
|
9009904356
90099043561
Bolt
|
90099043561 |
— | ||
|
9009904950
|
9009904950
90099-04950 BOLT |
90099-04950 |
from US $1.89 |
||
|
9009907063
|
9009907063
90099-07063 RING SNAP |
90099-07063 |
from US $1.67 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.21 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
US $4 |
||
|
9010508100
|
9010508100
90105-08100 BOLT |
90105-08100 |
from US $1.19 |
||
|
9010508101
|
9010508101
90105-08101 New Genuine Part |
90105-08101 |
US $1.22 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9151261040
|
9151261040
91512-61040 New Genuine Part |
91512-61040 |
US $2.80 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
