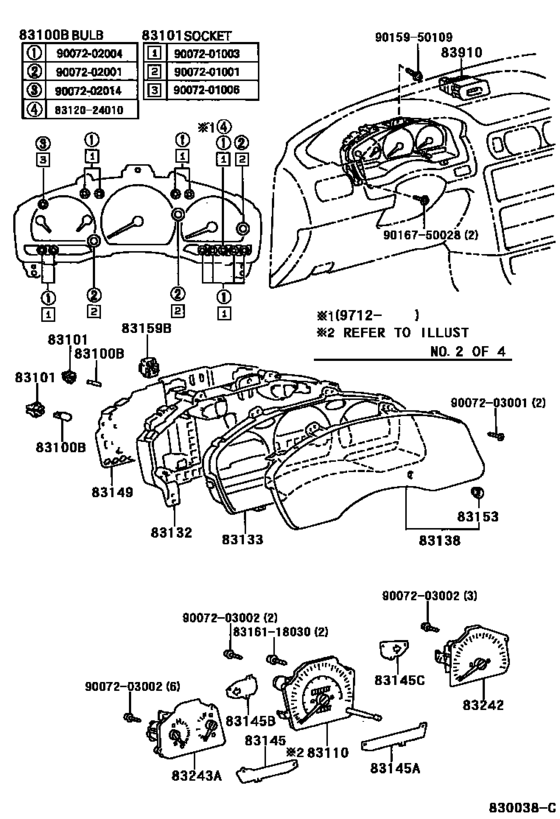

Meter ([09.1994 - ] W(TACHOMETER) (9409- )) Diagram Toyota TERCEL
- Year
- 1994 - 1996
- Sales region
- U.S.A.
- Frame
- EL53
- grade
- STD
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1994
- To
- 08.1996
- Gear Shift Type
- 3FC
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-24020 Bulb, Combination Meter, No.1[09.1994 - 08.1996] EL53 12V 3.4W W(GREEN CAP),NO.1 |
83109-24020 |
from US $5.97 |
||
|
83100B
|
83100B
83109-30070 Bulb, Combination Meter, No.1[09.1994 - 12.1997] EL53 14V 2.0W,W/O SOCKET,NO.3 |
83109-30070 |
US $2.45 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1994 -] EL53 12V 1.2W W/O SOCKET,NO.2 |
90981-11018 |
from US $2.07 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[09.1994 -] EL53 NO.1 |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[09.1994 - 12.1997] EL53 NO.2 |
83101-14040 |
US $2.93 |
||
|
83110
|
83110
83110-1G390 Speedometer Assy[09.1994 - 08.1995] EL53..STD..USA TYPE A:REFER TO ILLUSTRATION |
83110-1G390 |
US $400.40 |
||
|
83110
|
83110
83110-1G391
Speedometer Assy
[08.1995 - 08.1996] EL53..STD..USA TYPE B:REFER TO ILLUSTRATION |
83110-1G391 |
— | ||
|
83132
|
83132
83132-1S170
Case, Combination Meter
[09.1994 -] EL53..USA |
83132-1S170 |
— | ||
|
83133
|
83133
83133-1G330
Plate, Combination Meter, No.1
[09.1994 - 08.1996] EL53..STD |
83133-1G330 |
— | ||
| replacement | |||||
|
83133
|
83133
83811-10100
Plate, Combination Meter, No.1
[09.1994 - 08.1996] EL53..STD |
83811-10100 |
— | ||
|
83138
|
83138
83138-16650
Glass, Speedometer
[09.1994 - 08.1996] EL53..STD |
83138-16650 |
— | ||
|
83149
|
83149
83149-1G590
Plate, Meter Circuit
[09.1994 -] EL53 |
83149-1G590 |
— | ||
|
83159B
|
83159B
83159-22170 Switch, Meter, No.1[09.1994 - 12.1997] EL53 |
83159-22170 |
US $54.69 |
||
|
83243A
|
83243A
83243-1G230 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [09.1994 - 08.1995] EL53..USA |
83243-1G230 |
US $75.71 |
||
|
83243A
|
83243A
83243-1G231 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [08.1995 - 12.1997] EL53..USA |
83243-1G231 |
US $77.17 |
||
|
8316118030
|
8316118030
83161-18030 Case, Combination Meter Mirror, No.1 |
83161-18030 |
US $1.75 |
||
|
9007203001
|
9007203001
90072-03001 New Genuine Part |
90072-03001 |
US $0.87 |
||
|
9007203002
|
9007203002
90072-03002 New Genuine Part |
90072-03002 |
US $0.87 |
||
|
9015950109
|
9015950109
90159-50109 New Genuine Part |
90159-50109 |
US $2.33 |
||
|
9016750028
|
9016750028
90167-50028
Direct
|
90167-50028 |
— | ||
| replacement | |||||
|
9016750028
|
9016750028
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
