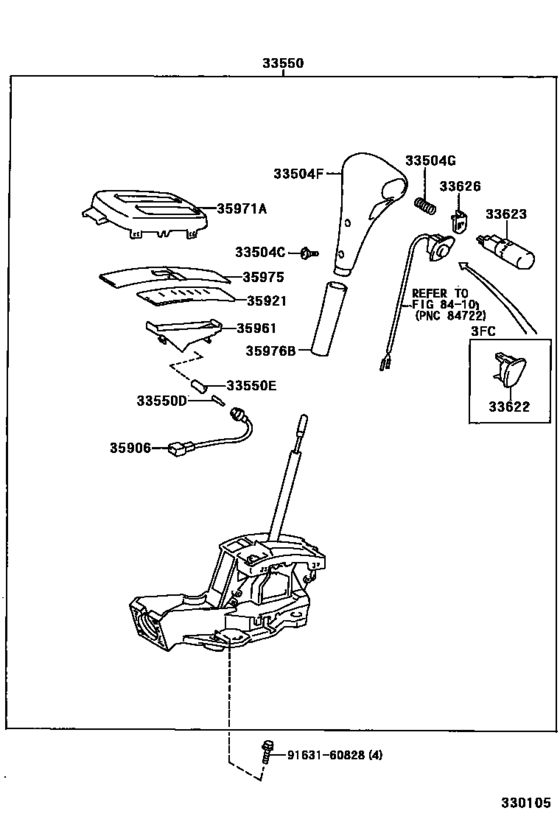

Shift Lever & Retainer ([09.1994 - ] (9409- )LHD..ATM) Diagram Toyota TERCEL
- Year
- 1994 - 1999
- Sales region
- General
- Frame
- EL53
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 4FC
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504C
|
33504C
90159-40221 Screw (For Shift Lever Knob Setting)[09.1994 -] EL5#..LHD..ATM |
90159-40221 |
from US $1.05 |
||
|
33504F
|
33504F
33542-16060-B0 Knob Sub-Assy, Shift LeverSHIFT LEVER [09.1994 - 08.1995] EL5#..LHD..ATM BLUISH GRAY,TRIM1# |
33542-16060-B0 |
US $72.80 |
||
|
33504F
|
33504F
33542-16060-B1 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.1995 -] EL5#..LHD..ATM SHADOW GRAY,TRIM1# |
33542-16060-B1 |
US $72.80 |
||
|
33504F
|
33504F
33542-16060-E0 Knob Sub-Assy, Shift LeverSHIFT LEVER [09.1994 - 12.1997] EL5#..LHD..ATM OAK,TRIM4# |
33542-16060-E0 |
US $72.80 |
||
|
33504F
|
33504F
33542-16060-E1 Knob Sub-Assy, Shift LeverSHIFT LEVER [12.1997 -] EL5#..LHD..ATM SANDAL WOOD,TRIM4# |
33542-16060-E1 |
US $72.80 |
||
|
33504G
|
33504G
90501-06082 Spring, Compression (For Shift Lever Knob Button)[09.1994 -] EL5#..LHD..ATM |
90501-06082 |
US $0.87 |
||
|
33550
|
33550
33550-16390-B0 Floor Shift Assy, TransmissionTRANSMISSION [09.1994 - 08.1995] EL53..4FC BLUISH GRAY,TRIM1# |
33550-16390-B0 |
US $723.63 |
||
|
33550
|
33550
33550-16390-B1 Floor Shift Assy, TransmissionTRANSMISSION [08.1995 - 08.1996] EL53..4FC SHADOW GRAY,TRIM1# |
33550-16390-B1 |
US $723.63 |
||
|
33550
|
33550
33550-16390-E0 Floor Shift Assy, TransmissionTRANSMISSION [08.1995 - 08.1996] EL53..4FC OAK,TRIM4# |
33550-16390-E0 |
US $723.63 |
||
|
33550
|
33550
33550-16391-B1 Floor Shift Assy, TransmissionTRANSMISSION [08.1996 -] EL53..4FC SHADOW GRAY,TRIM1# |
33550-16391-B1 |
US $726.54 |
||
|
33550
|
33550
33550-16391-E0 Floor Shift Assy, TransmissionTRANSMISSION [08.1996 - 12.1997] EL53..4FC OAK,TRIM4# |
33550-16391-E0 |
US $726.54 |
||
|
33550
|
33550
33550-16391-E1 Floor Shift Assy, TransmissionTRANSMISSION [12.1997 -] EL53..4FC SANDAL WOOD,TRIM4# |
33550-16391-E1 |
US $726.54 |
||
|
33550D
|
33550D
90981-11014 Bulb, Position Indicator Lamp[09.1994 -] EL5#..LHD..ATM 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
33550E
|
33550E
90339-04041 Cap, Position Indicator Lamp[09.1994 -] EL5#..LHD..ATM |
90339-04041 |
US $2.33 |
||
|
33623
|
33623
33623-16070-B0 Button, Shift Lever KnobSHIFT LEVER KNOB [09.1994 - 08.1995] EL5#..LHD..ATM BLUISH GRAY,TRIM1# |
33623-16070-B0 |
US $20.24 |
||
|
33623
|
33623
33623-16070-B1 Button, Shift Lever KnobSHIFT LEVER KNOB [08.1995 - 08.1996] EL5#..LHD..ATM SHADOW GRAY,TRIM1# |
33623-16070-B1 |
US $20.24 |
||
|
33623
|
33623
33623-16070-E0 Button, Shift Lever KnobSHIFT LEVER KNOB [08.1995 - 08.1996] EL5#..LHD..ATM OAK,TRIM4# |
33623-16070-E0 |
US $20.24 |
||
|
33623
|
33623
33623-16070-E1
Button, Shift Lever Knob
[11.1998 -] EL5#..LHD..ATM SANDAL WOOD,TRIM4# |
33623-16070-E1 |
— | ||
|
33623
|
33623
33623-16090-B0 Button, Shift Lever KnobSHIFT LEVER KNOB [08.1996 - 11.1998] EL5#..LHD..ATM SHADOW GRAY,TRIM1# |
33623-16090-B0 |
US $20.24 |
||
| replacement | |||||
|
33623
|
33623
33623-16070-E0 Button, Shift Lever KnobSHIFT LEVER KNOB [08.1996 - 11.1998] EL5#..LHD..ATM SHADOW GRAY,TRIM1# |
33623-16070-E0 |
US $20.24 |
||
|
33623
|
33623
33623-16090-E0 Button, Shift Lever KnobSHIFT LEVER KNOB [08.1996 - 12.1997] EL5#..LHD..ATM OAK,TRIM4# |
33623-16090-E0 |
US $20.24 |
||
| replacement | |||||
|
33623
|
33623
33623-16070-E0 Button, Shift Lever KnobSHIFT LEVER KNOB [08.1996 - 12.1997] EL5#..LHD..ATM OAK,TRIM4# |
33623-16070-E0 |
US $20.24 |
||
|
33623
|
33623
33623-16090-E1 Button, Shift Lever KnobSHIFT LEVER KNOB [12.1997 - 11.1998] EL5#..LHD..ATM SANDAL WOOD,TRIM4# |
33623-16090-E1 |
US $20.24 |
||
| replacement | |||||
|
33623
|
33623
33623-16070-E0 Button, Shift Lever KnobSHIFT LEVER KNOB [12.1997 - 11.1998] EL5#..LHD..ATM SANDAL WOOD,TRIM4# |
33623-16070-E0 |
US $20.24 |
||
|
33626
|
33626
33626-16010 Stopper, Shift Lever Button[09.1994 - 08.1996] EL5#..LHD..ATM |
33626-16010 |
US $1.89 |
||
|
35906
|
35906
35906-16060 Wire Sub-Assy, Indicator Lamp[09.1994 -] EL5#..LHD..ATM |
35906-16060 |
US $18.78 |
||
|
35921
|
35921
35921-16130
Plate, Control Position Indicator
[09.1994 -] EL5#..LHD..ATM |
35921-16130 |
— | ||
|
35961
|
35961
35961-16010 Housing, Position Indicator Lamp[09.1994 -] EL5#..LHD..ATM |
35961-16010 |
US $7.13 |
||
|
35971A
|
35971A
35971-16120 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [09.1994 - 08.1996] EL5#..LHD..ATM |
35971-16120 |
US $18.93 |
||
| replacement | |||||
|
35971A
|
35971A
35971-16121 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [09.1994 - 08.1996] EL5#..LHD..ATM |
35971-16121 |
US $18.78 |
||
|
35971A
|
35971A
35971-16121 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [08.1996 -] EL5#..LHD..ATM |
35971-16121 |
US $18.78 |
||
|
35975
|
35975
35975-16080
Cover, Slide (For Position Indicator)
[09.1994 -] EL5#..LHD..ATM |
35975-16080 |
— | ||
|
35976B
|
35976B
35976-16030-B0 Cover, Shift Lever Knob (For Floor Shift)SHIFT LEVER KNOB (FOR FLOOR SHIFT) [09.1994 - 08.1995] EL5#..LHD..ATM BLUISH GRAY,TRIM1# |
35976-16030-B0 |
US $33.63 |
||
|
35976B
|
35976B
35976-16030-B1 Cover, Shift Lever Knob (For Floor Shift)SHIFT LEVER KNOB (FOR FLOOR SHIFT) [08.1995 -] EL5#..LHD..ATM SHADOW GRAY,TRIM1# |
35976-16030-B1 |
US $33.63 |
||
|
35976B
|
35976B
35976-16030-E0 Cover, Shift Lever Knob (For Floor Shift)SHIFT LEVER KNOB (FOR FLOOR SHIFT) [09.1994 - 12.1997] EL5#..LHD..ATM OAK,TRIM4# |
35976-16030-E0 |
US $33.63 |
||
|
35976B
|
35976B
35976-16030-E1 Cover, Shift Lever Knob (For Floor Shift)SHIFT LEVER KNOB (FOR FLOOR SHIFT) [12.1997 -] EL5#..LHD..ATM SANDAL WOOD,TRIM4# |
35976-16030-E1 |
US $33.63 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.16 |
||
