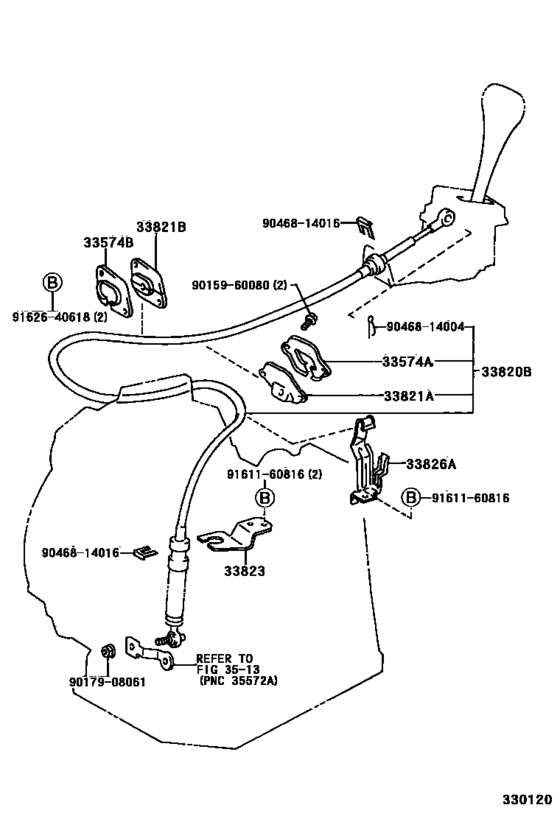

Shift Lever & Retainer ([09.1994 - ] (9409- )4FC) Diagram Toyota TERCEL
- Year
- 1994 - 1999
- Sales region
- General
- Frame
- EL53
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 4FC
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33574A
|
33574A
33574-10010 Retainer, Shift Cable Grommet, No.1[09.1994 - 08.1996] EL5# TYPE A:REFER TO ILLUSTRATION |
33574-10010 |
US $9.03 |
||
|
33574B
|
33574B
33574-10030
Retainer, Shift Cable Grommet, No.2
[09.1994 -] EL5# |
33574-10030 |
— | ||
|
33820B
|
33820B
33820-16180 Cable Assy, Transmission Control[09.1994 - 11.1994] EL53..4FC |
33820-16180 |
US $174.72 |
||
| replacement | |||||
|
33820B
|
33820B
33820-16181 Cable Assy, Transmission Control[09.1994 - 11.1994] EL53..4FC |
33820-16181 |
from US $171.70 |
||
|
33820B
|
33820B
33820-16181 Cable Assy, Transmission Control[11.1994 -] EL53..4FC |
33820-16181 |
from US $171.70 |
||
|
33821A
|
33821A
90480-01662
Grommet, No.1 (For Transmission Control Cable)
[09.1994 -] EL53..4FC; EL50..3FC TYPE A:REFER TO ILLUSTRATION |
90480-01662 |
— | ||
|
33821B
|
33821B
90480-01663
Grommet, No.2 (For Transmission Control Cable)
[09.1994 -] EL5#..ATM |
90480-01663 |
— | ||
|
33823
|
33823
33823-16050
Bracket, Transmission Control Cable, No.1
[09.1994 -] EL53..4FC |
33823-16050 |
— | ||
|
33826A
|
33826A
33826-16030 Bracket, Transmission Control Cable, No.2TRANSMISSION CONTROL CABLE, NO.2 [09.1994 - 10.1995] EL53..4FC |
33826-16030 |
US $11.50 |
||
|
9015960080
|
9015960080
90159-60080 SCREW |
90159-60080 |
US $3.52 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.78 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.68 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
|
9162640618
|
9162640618
91626-40618 BOLTWWASHER |
91626-40618 |
US $1.44 |
||
