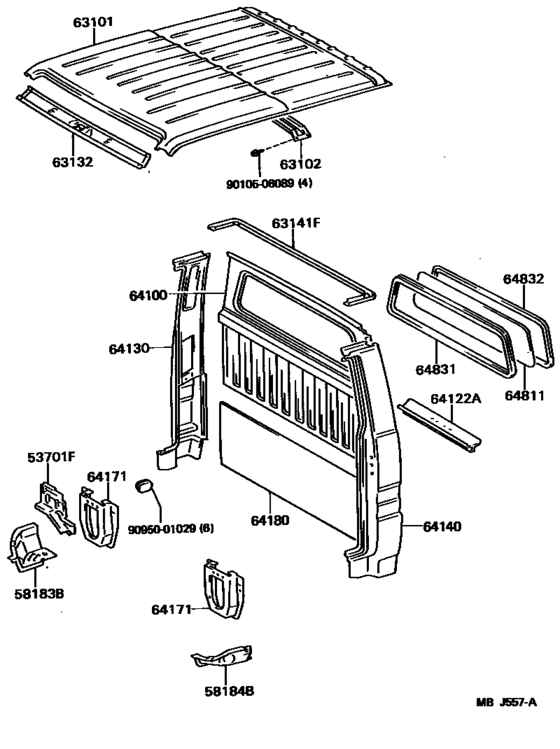

Roof Panel & Back Panel ([08.1985 - ] (8508- )TW) Diagram Toyota TOYOACE/ DYNA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LY60
- ENGINE
- 2L
- TRANSMISSION
- MTM
- CAB
- TW2
- Model
- DYNA
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- DYNA
- Deck,cab
- TW
- Loading Capacity
- 125
- Fuel Induction
- DSL
- Building Condition
- IV
- Deck(Material)
- TB
- Rear Tire
- WT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53701F
|
53701F
53717-95A04 Apron Sub-Assy, Front Fender, No.2 Rh[08.1985 - 08.1987] LY50,60,YY50,61..TW |
53717-95A04 |
US $47.76 |
||
|
58183B
|
58183B
58183-95402 Reinforcement, Rear Mounting, Rh[08.1985 - 08.1987] LY50,60,YY5#,61 |
58183-95402 |
US $55.62 |
||
| replacement | |||||
|
58183B
|
58183B
58183-95405 Reinforcement, Rear Mounting, Rh[08.1985 - 08.1987] LY50,60,YY5#,61 |
58183-95405 |
US $55.47 |
||
|
58184B
|
58184B
58184-95401 Reinforcement, Rear Mounting, Lh[08.1985 - 08.1987] LY50,60,YY5#,61 |
58184-95401 |
US $55.62 |
||
| replacement | |||||
|
58184B
|
58184B
58184-95404 Reinforcement, Rear Mounting, Lh[08.1985 - 08.1987] LY50,60,YY5#,61 |
58184-95404 |
US $55.47 |
||
|
63101
|
63101
63111-95A05 Panel Sub-Assy, Roof[08.1985 - 08.1987] LY50,60,YY50,61..TW |
63111-95A05 |
US $825.55 |
||
|
63102
|
63102
63021-95A00 Reinforcement Sub-Assy, Roof Panel, Front[08.1985 - 08.1987] LY50,60,YY50,61..TW |
63021-95A00 |
US $91.73 |
||
| replacement | |||||
|
63102
|
63102
63021-92600 Reinforcement Sub-Assy, Roof Panel, Front[08.1985 - 08.1987] LY50,60,YY50,61..TW |
63021-92600 |
US $91.73 |
||
|
63132
|
63132
63132-95417 Panel, Windshield Header, Inner[08.1985 - 01.1986] LY50,60,YY5#,61 |
63132-95417 |
US $91.73 |
||
| replacements | |||||
|
63132
|
63132
63132-37010 Panel Sub-Assy, Windshield Header[08.1985 - 01.1986] LY50,60,YY5#,61 |
63132-37010 |
from US $85.66 |
||
|
63132
|
63132
90950-06047 New Genuine Part[08.1985 - 01.1986] LY50,60,YY5#,61 |
90950-06047 |
US $3.49 |
||
|
63132
|
63132
63132-95418 Panel Sub-Assy, Windshield Header[01.1986 - 08.1987] LY50,60,YY5#,61 |
63132-95418 |
US $88.82 |
||
| replacement | |||||
|
63132
|
63132
63132-37010 Panel Sub-Assy, Windshield Header[01.1986 - 08.1987] LY50,60,YY5#,61 |
63132-37010 |
from US $85.66 |
||
|
63141F
|
63141F
63141-95401 Channel, Roof Drip, Rear[08.1985 - 08.1987] LY50,60,YY50,61..TW |
63141-95401 |
US $55.18 |
||
|
64100
|
64100
64101-95A08 Panel Assy, Back, Outer[08.1985 - 08.1987] LY50,60,YY50,61..TW |
64101-95A08 |
US $546 |
||
|
64122A
|
64122A
64122-95A06 Baffle, Dust Rear Body[08.1985 - 08.1987] LY50,60,YY50,61..TW |
64122-95A06 |
US $18.78 |
||
|
64130
|
64130
64130-95A02 Panel Assy, Back Corner, Rh[08.1985 - 08.1987] LY50,60,YY50,61..TW |
64130-95A02 |
US $298.48 |
||
|
64140
|
64140
64140-95A02 Panel Assy, Back Corner, Lh[08.1985 - 08.1987] LY50,60,YY50,61..TW |
64140-95A02 |
US $298.48 |
||
|
64171
|
64171
64171-95410 Bracket, Cab Rear Mounting[08.1985 - 08.1987] LY50,60,YY50,61..TW |
64171-95410 |
US $123.76 |
||
|
64180
|
64180
64141-95021-03 Silencer, Back Panel, No.1[08.1985 - 08.1987] LY50,60,YY50,61..TW GRAY,GRAY |
64141-95021-03 |
US $15.58 |
||
|
64811
|
64811
64811-95410 Glass, Back Window[08.1985 - 08.1987] LY50,60,YY50,61..TW ＊ＴＥＭ，厚さ＝３．５,*TEM,T=3.5 |
64811-95410 |
US $106.29 |
||
| replacement | |||||
|
64811
|
64811
64811-37080 Glass, Back Window[08.1985 - 08.1987] LY50,60,YY50,61..TW ＊ＴＥＭ，厚さ＝３．５,*TEM,T=3.5 |
64811-37080 |
US $264.99 |
||
|
64831
|
64831
64831-95016 Weatherstrip, Back Window Glass[08.1985 - 08.1987] LY50,60,YY50,61..TW |
64831-95016 |
US $26.35 |
||
| replacement | |||||
|
64831
|
64831
64831-37051 Weatherstrip, Back Window Glass[08.1985 - 08.1987] LY50,60,YY50,61..TW |
64831-37051 |
US $75.24 |
||
|
64832
|
64832
64832-95013
Key, Back Window Weatherstrip
[08.1985 - 08.1987] LY50,60,YY50,61..TW |
64832-95013 |
— | ||
| replacement | |||||
|
64832
|
64832
64832-37040 Key, Back Window Weatherstrip[08.1985 - 08.1987] LY50,60,YY50,61..TW |
64832-37040 |
US $11.36 |
||
|
9010506089
|
9010506089
90105-06089 New Genuine Part |
90105-06089 |
US $1.60 |
||
| replacement | |||||
|
9010506089
|
9010506089
91554-80614 New Genuine Part |
91554-80614 |
US $1.12 |
||
|
9095001029
|
9095001029
90950-01029
Plug, Hole, No.1(For Dash Panel)
|
90950-01029 |
— | ||
| replacement | |||||
|
9095001029
|
9095001029
90950-01882 Cover, Hole |
90950-01882 |
from US $2.24 |
||
