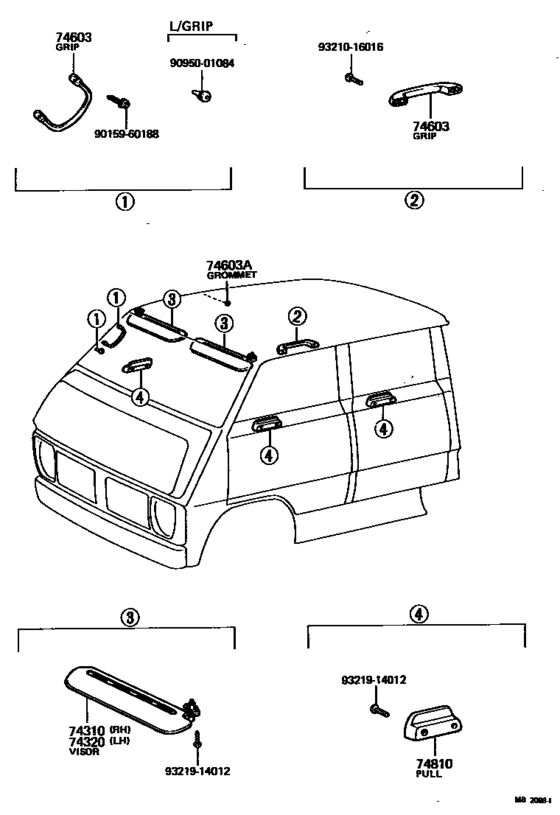

Armrest & Visor ([09.1971 - 02.1979] (7109-7902)) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1972 - 1979
- Sales region
- Europe
- Frame
- RY16
- body
- T1
- ENGINE
- 5R
- Model
- TOYO ACE
- From
- 07.1972
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Loading Capacity
- 20T
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74310
|
74310
74310-95016 Visor Assy, RhRH [09.1971 - 03.1975] JY16,RY1#..RHD |
74310-95016 |
US $47.17 |
||
| replacement | |||||
|
74310
|
74310
74310-95018
Visor Assy, Rh
[09.1971 - 03.1975] JY16,RY1#..RHD |
74310-95018 |
— | ||
|
74310
|
74310
74310-95017
Visor Assy, Rh
[11.1974 - 02.1979] RY16..RHD FOR AUSTRALIA |
74310-95017 |
— | ||
|
74310
|
74310
74310-95018
Visor Assy, Rh
[03.1975 - 02.1979] JY16,RY1#..RHD |
74310-95018 |
— | ||
|
74320
|
74320
74320-95011
Visor Assy, Lh
[11.1974 - 02.1979] RY16..RHD FOR AUSTRALIA |
74320-95011 |
— | ||
|
74603
|
74603
74610-95260 Grip Sub-Assy, Assist, FrontASSIST, FRONT [07.1972 - 02.1979] JY16,RY1# FOR DRIVE SIDE |
74610-95260 |
US $35.82 |
||
| replacement | |||||
|
74603
|
74603
74610-95260-01 Grip Sub-Assy, Assist, Front[07.1972 - 02.1979] JY16,RY1# FOR DRIVE SIDE |
74610-95260-01 |
US $38 |
||
|
74603
|
74603
74610-95700 Grip Sub-Assy, Assist, FrontASSIST, FRONT [09.1971 - 02.1976] JY16,RY1# FOR ASSISTANT SIDE |
74610-95700 |
US $18.20 |
||
| replacement | |||||
|
74603
|
74603
74611-95702-01
Grip Sub-Assy, Assist, Front
[09.1971 - 02.1976] JY16,RY1# FOR ASSISTANT SIDE |
74611-95702-01 |
— | ||
|
74603
|
74603
74611-95702
Grip Sub-Assy, Assist, Rear
[02.1976 - 02.1979] JY16,RY1# FOR ASSISTANT SIDE |
74611-95702 |
— | ||
| replacement | |||||
|
74603
|
74603
74611-95702-01
Grip Sub-Assy, Assist, Front
[02.1976 - 02.1979] JY16,RY1# FOR ASSISTANT SIDE |
74611-95702-01 |
— | ||
|
74603A
|
74603A
90034-80031 Clip (For Assist Grip)[09.1971 - 02.1979] JY16,RY1# OD=5.5 |
90034-80031 |
US $1.46 |
||
|
74810
|
74810
69151-95111 Pull Assy, Door, InsideDOOR, INSIDE [09.1971 - 02.1979] JY16,RY1# |
69151-95111 |
US $11.21 |
||
|
9015960188
|
9015960188
90159-60188 SCREW |
90159-60188 |
US $1.05 |
||
|
9095001084
|
9095001084
90950-01084 Plug, Hole(For Front Fender Apron) |
90950-01084 |
US $3.49 |
||
|
9321016016
|
9321016016
93210-16016 SCREW |
93210-16016 |
US $2.72 |
||
|
9321914012
|
9321914012
93219-14012 Screw(For Vacuum Lock Diaphragm Ring Set) |
93219-14012 |
US $1.31 |
||
