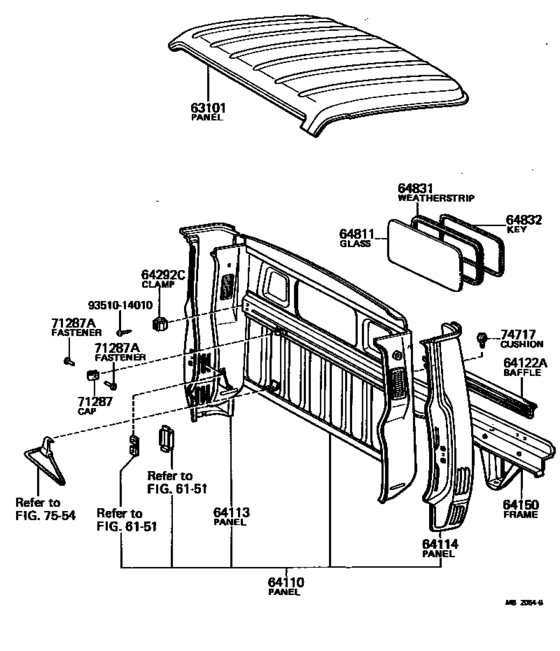

Roof Panel & Back Panel ([09.1971 - 02.1979] (7109-7902)) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1972 - 1979
- Sales region
- Europe
- Frame
- RY16
- body
- T1
- ENGINE
- 5R
- Model
- TOYO ACE
- From
- 07.1972
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Loading Capacity
- 20T
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63101
|
63101
63111-95012
Panel Sub-Assy, Roof
[09.1971 - 02.1979] JY16,RY1# |
63111-95012 |
— | ||
|
64110
|
64110
64100-95020
Panel Assy, Front Body Back
[09.1971 - 09.1973] JY16,RY1#..RHD |
64100-95020 |
— | ||
|
64113
|
64113
64113-95011
Panel, Back Corner, Outer Rh
[09.1971 - 02.1979] JY16,RY1# |
64113-95011 |
— | ||
|
64114
|
64114
64114-95011
Panel, Back Corner, Outer Lh
[09.1971 - 02.1979] JY16,RY1# |
64114-95011 |
— | ||
|
64122A
|
64122A
64122-95011
Baffle, Dust Rear Body
[09.1971 - 02.1979] JY16,RY1# |
64122-95011 |
— | ||
|
64150
|
64150
64150-95016
Frame Assy, Back
[09.1971 - 05.1976] JY16,RY1# |
64150-95016 |
— | ||
|
64150
|
64150
64150-95021
Frame Assy, Back
[05.1973 - 02.1979] RY16..RHD FOR AUSTRALIA |
64150-95021 |
— | ||
|
64292C
|
64292C
74716-95010
Clamp, Jack Handle
[09.1971 - 02.1979] JY16,RY1# |
74716-95010 |
— | ||
|
64811
|
64811
64811-95010
Glass, Back Window
[09.1971 - 02.1979] JY16,RY1# TP.T=3.2 |
64811-95010 |
— | ||
| replacement | |||||
|
64811
|
64811
64811-95015
Glass, Back Window
[09.1971 - 02.1979] JY16,RY1# TP.T=3.2 |
64811-95015 |
— | ||
|
64811
|
64811
64811-95015
Glass, Back Window
[09.1971 - 02.1979] JY16,RY1# *TEM,T=4.0,TP.T=4.0 |
64811-95015 |
— | ||
|
64831
|
64831
64831-95010 Weatherstrip, Back Window GlassBACK WINDOW GLASS [09.1971 - 02.1979] JY16,RY1# |
64831-95010 |
US $56.06 |
||
| replacement | |||||
|
64831
|
64831
64831-95015 Weatherstrip, Back Window Glass[09.1971 - 02.1979] JY16,RY1# |
64831-95015 |
US $26.06 |
||
|
64831
|
64831
64831-95015 Weatherstrip, Back Window Glass[09.1971 - 02.1979] JY16,RY1# FOR T=4.0 GLASS |
64831-95015 |
US $26.06 |
||
|
64832
|
64832
64832-95010 Key, Back Window Weatherstrip[09.1971 - 02.1979] JY16,RY1# |
64832-95010 |
US $14.56 |
||
| replacement | |||||
|
64832
|
64832
64832-37040 Key, Back Window Weatherstrip[09.1971 - 02.1979] JY16,RY1# |
64832-37040 |
US $11.36 |
||
|
74717
|
74717
90541-10052
Cushion (For Jack Handle)
[09.1971 - 02.1979] JY16,RY1# |
90541-10052 |
— | ||
|
9351014010
|
9351014010
93510-14010 New Genuine Part |
93510-14010 |
US $1.31 |
||
