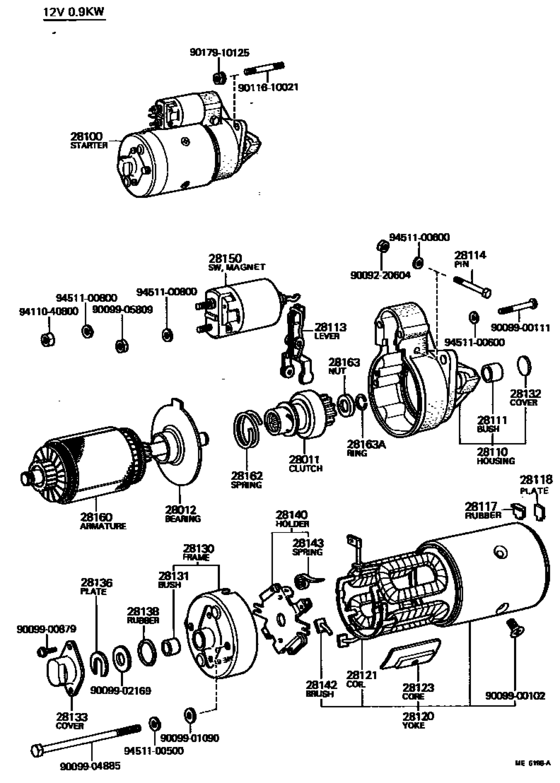

Starter ([07.1972 - 01.1976] (7207-7601)5R) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1972 - 1979
- Sales region
- General
- Frame
- RY16
- body
- T3
- ENGINE
- 5R
- Model
- TOYO ACE
- From
- 07.1972
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Loading Capacity
- 20T
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-34010 Clutch Sub-Assy, StarterSTARTER [07.1972 - 01.1976] 5R..RY16 12V 0.9KW |
28011-34010 |
US $65.08 |
||
|
28011
|
28011
28011-41011 Clutch Sub-Assy, Starter[09.1971 - 02.1979] 12R,5R..RY1# 12V 0.8KW |
28011-41011 |
US $90.27 |
||
|
28012
|
28012
28126-34011
Bearing Sub-Assy, Center
[07.1972 - 01.1976] 5R..RY16 12V 0.9KW |
28126-34011 |
— | ||
|
28100
|
28100
28100-33011 Starter Assy[07.1972 - 01.1976] 5R..RY16 12V 0.8KW |
28100-33011 |
US $856.13 |
||
| replacement | |||||
|
28100
|
28100
28100-37011 Starter Assy[07.1972 - 01.1976] 5R..RY16 12V 0.8KW |
28100-37011 |
US $1,084.72 |
||
|
28100
|
28100
28100-34010 Starter Assy[07.1972 - 01.1976] 5R..RY16 12V 0.9KW |
28100-34010 |
US $1,188.10 |
||
| replacement | |||||
|
28100
|
28100
28100-35110
Starter Assy
[07.1972 - 01.1976] 5R..RY16 12V 0.9KW |
28100-35110 |
— | ||
|
28100
|
28100
28100-36060 Starter Assy[01.1976 - 02.1979] 5R..RY16 12V 0.8KW |
28100-36060 |
US $1,033.76 |
||
| replacement | |||||
|
28100
|
28100
28100-34090 Starter Assy[01.1976 - 02.1979] 5R..RY16 12V 0.8KW |
28100-34090 |
US $1,033.76 |
||
|
28110
|
28110
28110-34010
Housing Assy, Starter Drive
[07.1972 - 01.1976] 5R..RY16 12V 0.9KW |
28110-34010 |
— | ||
|
28110
|
28110
28110-40045
Housing Assy, Starter Drive
[07.1972 - 02.1979] 5R..RY16 12V 0.8KW |
28110-40045 |
— | ||
|
28111
|
28111
28111-51011
Bush(For Starter Housing)
[09.1971 - 02.1979] 12R,5R..RY1# |
28111-51011 |
— | ||
|
28113
|
28113
28113-41011
Lever, Starter Pinion Drive
[09.1971 - 02.1979] 12R,5R..RY1# |
28113-41011 |
— | ||
|
28114
|
28114
28114-41011
Pin, Starter Drive Lever Set
[09.1971 - 02.1979] 12R,5R..RY1# |
28114-41011 |
— | ||
|
28117
|
28117
28117-34010
Rubber(For Starter Yoke)
[07.1972 - 01.1976] 5R..RY16 12V 0.9KW |
28117-34010 |
— | ||
|
28117
|
28117
28117-41012
Rubber(For Starter Yoke)
[07.1972 - 02.1979] 5R..RY16 12V 0.8KW |
28117-41012 |
— | ||
|
28118
|
28118
28118-41012
Plate(For Starter Yoke)
[09.1971 - 02.1979] 12R,5R..RY1# |
28118-41012 |
— | ||
| replacement | |||||
|
28118
|
28118
28118-41013
Plate(For Starter Yoke)
[09.1971 - 02.1979] 12R,5R..RY1# |
28118-41013 |
— | ||
|
28120
|
28120
28120-36040
Yoke Assy, Starter
[11.1975 - 02.1979] 12R,5R..RY1# 12V 0.8KW |
28120-36040 |
— | ||
|
28120
|
28120
28120-41011
Yoke Assy, Starter
[07.1972 - 01.1976] 5R..RY16 12V 0.9KW |
28120-41011 |
— | ||
| replacement | |||||
|
28120
|
28120
28120-40040
Yoke Assy, Starter
[07.1972 - 01.1976] 5R..RY16 12V 0.9KW |
28120-40040 |
— | ||
|
28120
|
28120
28120-89101
Yoke Assy, Starter
[09.1971 - 11.1975] 12R,5R..RY1# 12V 0.8KW |
28120-89101 |
— | ||
| replacement | |||||
|
28120
|
28120
28120-36040
Yoke Assy, Starter
[09.1971 - 11.1975] 12R,5R..RY1# 12V 0.8KW |
28120-36040 |
— | ||
|
28121
|
28121
28121-36040 Coil, Starter Field[11.1975 - 02.1979] 12R,5R..RY1# 12V 0.8KW |
28121-36040 |
US $100.46 |
||
|
28121
|
28121
28121-40014 Coil, Starter FieldSTARTER FIELD [09.1971 - 11.1975] 12R,5R..RY1# 12V 0.8KW |
28121-40014 |
US $78.62 |
||
| replacement | |||||
|
28121
|
28121
28121-36040 Coil, Starter Field[09.1971 - 11.1975] 12R,5R..RY1# 12V 0.8KW |
28121-36040 |
US $100.46 |
||
|
28121
|
28121
28121-41011
Coil, Starter Field
[07.1972 - 01.1976] 5R..RY16 12V 0.9KW |
28121-41011 |
— | ||
|
28123
|
28123
28123-40012
Core, Starter Pole
[09.1971 - 02.1979] 12R,5R..RY1# 12V 0.8KW |
28123-40012 |
— | ||
|
28123
|
28123
28123-41011
Core, Starter Pole
[07.1972 - 01.1976] 5R..RY16 12V 0.9KW |
28123-41011 |
— | ||
|
28130
|
28130
28130-21011
Frame Assy, Starter Commutator End
[09.1971 - 02.1979] 12R,5R..RY1# |
28130-21011 |
— | ||
|
28131
|
28131
28131-20010
Bush, Commutator End Frame
[09.1971 - 02.1979] 12R,5R..RY1# STD |
28131-20010 |
— | ||
|
28131
|
28131
90099-10039
Bush, Commutator End Frame
[09.1971 - 02.1979] 12R,5R..RY1# U/S 0.3 |
90099-10039 |
— | ||
|
28131
|
28131
90099-10040
Bush, Commutator End Frame
[09.1971 - 02.1979] 12R,5R..RY1# U/S 0.5 |
90099-10040 |
— | ||
|
28132
|
28132
28166-41011
Cover, Starter Bearing(For Drive Housing)
[07.1972 - 01.1976] 5R..RY16 |
28166-41011 |
— | ||
|
28133
|
28133
28132-41011
Cover, Bearing(For End Frame)
[09.1971 - 02.1979] 12R,5R..RY1# |
28132-41011 |
— | ||
|
28136
|
28136
28136-41011
Plate, Starter Lock
[09.1971 - 02.1979] 12R,5R..RY1# |
28136-41011 |
— | ||
|
28138
|
28138
28138-41011
Rubber(For Starter Bearing Cover)
[09.1971 - 02.1979] 12R,5R..RY1# |
28138-41011 |
— | ||
|
28140
|
28140
28140-41013
Holder Assy, Starter Brush
[07.1972 - 01.1976] 5R..RY16 |
28140-41013 |
— | ||
|
28142
|
28142
28142-21010
Brush, Starter
[09.1971 - 02.1979] 12R,5R..RY1# |
28142-21010 |
— | ||
|
28143
|
28143
28143-40010
Spring, Starter Brush
[07.1972 - 02.1979] 5R..RY16 |
28143-40010 |
— | ||
| replacement | |||||
|
28143
|
28143
28143-40040
Spring, Starter Brush
[07.1972 - 02.1979] 5R..RY16 |
28143-40040 |
— | ||
|
28150
|
28150
28150-22011
Switch Assy, Magnet Starter
[07.1972 - 01.1976] 5R..RY16 12V 0.8KW |
28150-22011 |
— | ||
|
28150
|
28150
28150-34011 Switch Assy, Magnet StarterMAGNET STARTER [07.1972 - 01.1976] 5R..RY16 12V 0.9KW |
28150-34011 |
US $147.06 |
||
| replacement | |||||
|
28150
|
28150
28150-34021
Switch Assy, Magnet Starter
[07.1972 - 01.1976] 5R..RY16 12V 0.9KW |
28150-34021 |
— | ||
|
28150
|
28150
28150-36050 Switch Assy, Magnet StarterMAGNET STARTER [01.1976 - 02.1979] 5R..RY16 12V 0.8KW |
28150-36050 |
US $128.13 |
||
| replacement | |||||
|
28150
|
28150
28150-60060 Switch Assy, Magnet StarterMAGNET STARTER [01.1976 - 02.1979] 5R..RY16 12V 0.8KW |
28150-60060 |
US $123.76 |
||
|
28160
|
28160
28160-34010
Armature Assy, Starter
[07.1972 - 01.1976] 5R..RY16 12V 0.9KW |
28160-34010 |
— | ||
|
28160
|
28160
28160-40014 Armature Assy, Starter[09.1971 - 02.1979] 12R,5R..RY1# 12V 0.8KW |
28160-40014 |
US $234.42 |
||
|
28162
|
28162
28162-41011
Spring, Starter Brake
[09.1971 - 02.1979] 12R,5R..RY1# |
28162-41011 |
— | ||
|
28163
|
28163
28163-40011
Nut Or Collar, Pinion Stop, Starter
[09.1971 - 02.1979] 12R,5R..RY1# |
28163-40011 |
— | ||
|
28163A
|
28163A
90099-07047
Ring, Snap(For Starter Pinion Stop Nut)
[09.1971 - 02.1979] 12R,5R..RY1# |
90099-07047 |
— | ||
|
9009220604
|
9009220604
90092-20604
Nut, Wire Adjusting, No.1
|
90092-20604 |
— | ||
| replacement | |||||
|
9009220604
|
9009220604
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $2.72 |
||
|
9009900102
|
9009900102
90099-00102
New Genuine Part
|
90099-00102 |
— | ||
|
9009900111
|
9009900111
90099-00111
New Genuine Part
|
90099-00111 |
— | ||
|
9009900879
|
9009900879
90099-00879
Screw, W/washer(For Bearing Cover Setting)
|
90099-00879 |
— | ||
|
9009901090
|
9009901090
90099-01090
New Genuine Part
|
90099-01090 |
— | ||
|
9009902169
|
9009902169
90099-02169
New Genuine Part
|
90099-02169 |
— | ||
|
9009904885
|
9009904885
90099-04885
New Genuine Part
|
90099-04885 |
— | ||
|
9009905809
|
9009905809
90099-05809
New Genuine Part
|
90099-05809 |
— | ||
|
9011610021
|
9011610021
90116-10021 Bolt, Stud(For Manifold To Cylinder Head) |
90116-10021 |
from US $3.14 |
||
|
9017910125
|
9017910125
90179-10125
Nut(For Counter Gear Shaft)
|
90179-10125 |
— | ||
| replacement | |||||
|
9017910125
|
9017910125
90179-10132 Nut |
90179-10132 |
from US $0.99 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
