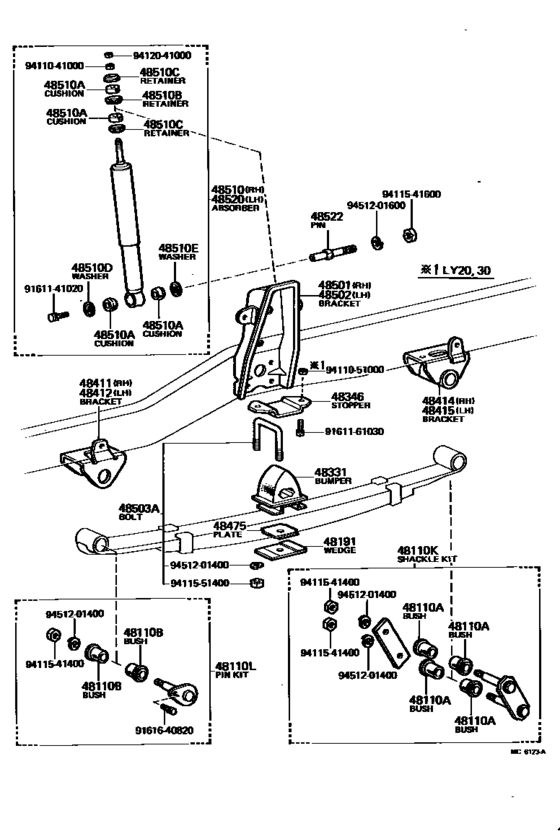

Front Spring & Shock Absorber ([03.1979 - ] (7903- )125,15T) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1979 - 1985
- Sales region
- General
- Frame
- RY20
- body
- T3
- ENGINE
- 12R
- DESTINATION
- GEN
- Model
- TOYO ACE
- From
- 03.1979
- To
- 07.1985
- Gear Shift Type
- 4H
- Vehicle Model
- TOYO ACE
- Loading Capacity
- 15T
- Driver's Position
- LHD
- Building Condition
- CBU
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48110A
|
48110A
90385-18005 Bush(For Front Spring Shackle)[03.1979 - 09.1979] LY20,30,RY20,3#..125,15T |
90385-18005 |
from US $3.61 |
||
|
48110B
|
48110B
90385-18005 Bush(For Front Spring Shackle)[03.1979 - 07.1985] LY20,3#,RY20,3#..125,15T |
90385-18005 |
from US $3.61 |
||
|
48110K
|
48110K
04481-25030 Shackle Kit, Front SpringFRONT SPRING [03.1979 - 12.1980] LY20,30,RY20,3#..125,15T |
04481-25030 |
US $68 |
||
| replacement | |||||
|
48110K
|
48110K
04481-25050 Shackle Kit, Front Spring[03.1979 - 12.1980] LY20,30,RY20,3#..125,15T |
04481-25050 |
US $65.17 |
||
|
48110K
|
48110K
04481-25031
Shackle Kit, Front Spring
[12.1980 - 07.1985] LY20,3#,RY20,3#..125,15T |
04481-25031 |
— | ||
| replacement | |||||
|
48110K
|
48110K
04481-25050 Shackle Kit, Front Spring[12.1980 - 07.1985] LY20,3#,RY20,3#..125,15T |
04481-25050 |
US $65.17 |
||
|
48110L
|
48110L
04482-25010
Pin Kit, Front Spring
[03.1979 - 12.1980] LY20,30,RY20,3#..125,15T |
04482-25010 |
— | ||
| replacement | |||||
|
48110L
|
48110L
04482-25020
Pin Kit, Front Spring
[03.1979 - 12.1980] LY20,30,RY20,3#..125,15T |
04482-25020 |
— | ||
|
48110L
|
48110L
04482-25011
Pin Kit, Front Spring
[12.1980 - 07.1985] LY20,3#,RY20,3#..125,15T |
04482-25011 |
— | ||
| replacement | |||||
|
48110L
|
48110L
04482-25020
Pin Kit, Front Spring
[12.1980 - 07.1985] LY20,3#,RY20,3#..125,15T |
04482-25020 |
— | ||
|
48191
|
48191
48191-25010 Wedge, Caster(For Front Leaf Spring)[03.1979 - 07.1985] LY20,3#,RY20,3#..ST..(125,15T)..CBU |
48191-25010 |
US $12.52 |
||
|
48331
|
48331
48304-36021 Bumper Sub-Assy, Front Spring, No.1[03.1979 - 07.1985] LY20,3#,RY20,3#..125,15T |
48304-36021 |
US $21.43 |
||
|
48346
|
48346
48346-25070
Stopper, Bumper, Front
[03.1979 - 07.1985] LY20,3#,RY20,3#..15T |
48346-25070 |
— | ||
|
48411
|
48411
48411-25050 Bracket, Front Spring(For Front Rh)[03.1979 - 07.1985] LY20,3#,RY20,3#..125,15T |
48411-25050 |
US $26.21 |
||
| replacement | |||||
|
48411
|
48411
48411-25051 Bracket Sub-Assy, Spring, No.1[03.1979 - 07.1985] LY20,3#,RY20,3#..125,15T |
48411-25051 |
US $27.08 |
||
|
48412
|
48412
48411-25050 Bracket, Front Spring(For Front Rh)[03.1979 - 07.1985] LY20,3#,RY20,3#..125,15T |
48411-25050 |
US $26.21 |
||
| replacement | |||||
|
48412
|
48412
48411-25051 Bracket Sub-Assy, Spring, No.1[03.1979 - 07.1985] LY20,3#,RY20,3#..125,15T |
48411-25051 |
US $27.08 |
||
|
48414
|
48414
48433-25040
Bracket, Front Spring(For Rear Rh)
[03.1979 - 07.1985] LY20,3#,RY20,3#..125,15T |
48433-25040 |
— | ||
|
48415
|
48415
48434-25030
Bracket, Front Spring(For Rear Lh)
[03.1979 - 07.1985] LY20,3#,RY20,3#..125,15T |
48434-25030 |
— | ||
|
48475
|
48475
48475-36070 Plate, Distance(For Front)[03.1979 - 07.1985] JY30,LY20,3#,RY20,3# |
48475-36070 |
US $15.29 |
||
|
48501
|
48501
48502-25010
Bracket Sub-Assy, Front Shock Absorber, Upper Rh
[03.1979 - 07.1985] LY20,3#,RY20,3#..125,15T |
48502-25010 |
— | ||
|
48502
|
48502
48502-25010
Bracket Sub-Assy, Front Shock Absorber, Upper Rh
[03.1979 - 07.1985] LY20,3#,RY20,3#..125,15T |
48502-25010 |
— | ||
|
48503A
|
48503A
90118-14170 Bolt, U(For Front Shock Absorber Bracket)U(FOR FRONT SHOCK ABSORBER BRACKET) [03.1979 - 07.1985] LY20,3#,RY20,3#..125,15T L=75 |
90118-14170 |
US $22.71 |
||
| replacement | |||||
|
48503A
|
48503A
90117-14013 Bolt, U(For Front Shock Absorber Bracket)U(FOR FRONT SHOCK ABSORBER BRACKET) [03.1979 - 07.1985] LY20,3#,RY20,3#..125,15T L=75 |
90117-14013 |
US $16.89 |
||
|
48503A
|
48503A
90118-14181 Bolt, U(For Front Shock Absorber Bracket)U(FOR FRONT SHOCK ABSORBER BRACKET) [03.1979 - 07.1985] LY20,3#,RY20,3#..125,15T L=81,W/DISTANCE PLATE |
90118-14181 |
US $20.09 |
||
| replacement | |||||
|
48503A
|
48503A
90117-14013 Bolt, U(For Front Shock Absorber Bracket)U(FOR FRONT SHOCK ABSORBER BRACKET) [03.1979 - 07.1985] LY20,3#,RY20,3#..125,15T L=81,W/DISTANCE PLATE |
90117-14013 |
US $16.89 |
||
|
48510
|
48510
48511-29125 Absorber Assy, Shock, Front Rh[03.1979 - 07.1985] LY20,3#,RY20,3#..ST..15T..CBU MARK 48511-25110 |
48511-29125 |
US $96.10 |
||
| replacement | |||||
|
48510
|
48510
48511-29127 Absorber Assy, Shock, Front Rh[03.1979 - 07.1985] LY20,3#,RY20,3#..ST..15T..CBU MARK 48511-25110 |
48511-29127 |
US $94.64 |
||
|
48510A
|
48510A
90385-16007 Cushion, Front Shock Absorber[03.1979 - 07.1985] JY30,LY20,3#,RY20,3# LWR |
90385-16007 |
from US $1.91 |
||
|
48510A
|
48510A
90948-01003 Rubber Cushion[03.1979 - 07.1985] JY30,LY20,3#,RY20,3# UPR |
90948-01003 |
from US $1.66 |
||
|
48510B
|
48510B
90948-02007 Retainer, Steering Damper Cushion[03.1979 - 05.1979] JY30,LY20,30,RY20,3# |
90948-02007 |
US $2.72 |
||
|
48510B
|
48510B
90948-02017 Retainer, Cushion, No.1(For Front Shock Absorber)[05.1979 - 07.1985] JY30,LY20,3#,RY20,3# |
90948-02017 |
from US $1.52 |
||
|
48510C
|
48510C
90948-02002 Retainer, Steering Damper Cushion[03.1979 - 07.1985] JY30,LY20,3#,RY20,3# |
90948-02002 |
from US $1.25 |
||
|
48510D
|
48510D
90948-03012 Washer, Front Shock Absorber Cushion, No.1[03.1979 - 07.1985] LY20,3#,RY20,3#..125,15T |
90948-03012 |
US $1.60 |
||
|
48510E
|
48510E
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[03.1979 - 07.1985] JY30,LY20,3#,RY20,3# |
90948-03004 |
from US $1.42 |
||
|
48520
|
48520
48511-29125 Absorber Assy, Shock, Front Rh[03.1979 - 07.1985] LY20,3#,RY20,3#..ST..15T..CBU MARK 48511-25110 |
48511-29125 |
US $96.10 |
||
| replacement | |||||
|
48520
|
48520
48511-29127 Absorber Assy, Shock, Front Rh[03.1979 - 07.1985] LY20,3#,RY20,3#..ST..15T..CBU MARK 48511-25110 |
48511-29127 |
US $94.64 |
||
|
48522
|
48522
48522-25010 Pin, Front Shock Absorber Lower Pivot[03.1979 - 07.1985] LY20,3#,RY20,3#..125,15T |
48522-25010 |
US $9.03 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.40 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $2.08 |
||
|
9411541400
|
9411541400
94115-41400 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-41400 |
US $2.62 |
||
|
9411541600
|
9411541600
94115-41600
Nut, Hexagon(for Sector Shaft To Pitman Arm Setting)
|
94115-41600 |
— | ||
| replacement | |||||
|
9411541600
|
9411541600
94130-61600 Nut, Hexagon(for Sector Shaft To Pitman Arm Setting) |
94130-61600 |
US $1.92 |
||
|
9411551400
|
9411551400
94115-51400 Nut, Lock |
94115-51400 |
US $3.20 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9451201400
|
9451201400
94512-01400 Washer(For Rear Spring U Bolt) |
94512-01400 |
US $1.60 |
||
|
9451201600
|
9451201600
94512-01600
Washer(For Center Arm Shaft)
|
94512-01600 |
— | ||
| replacement | |||||
|
9451201600
|
9451201600
90204-16001 Washer(For Center Arm Shaft) |
90204-16001 |
US $2.72 |
||
