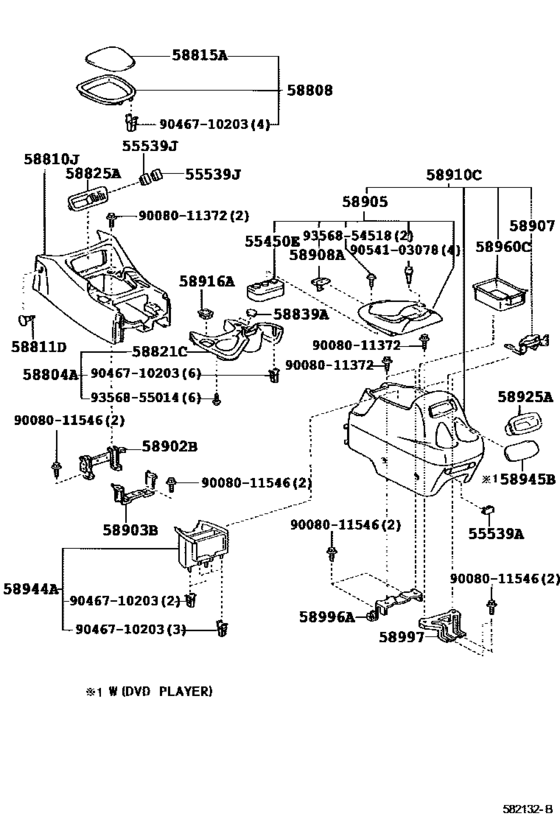

Console Box & Bracket ([08.2004 - ] (0408- )UCK31,41) Diagram Toyota TUNDRA
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- UCK41
- grade
- LIMD
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- DECK
- SD
- CAB
- DCB
- From
- 08.2004
- To
- 12.2006
- Gear Shift Type
- 5HC
- Vehicle Model
- TUNDRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55450E
|
55450E
55450-0C010
Box Assy, Coin
[08.2004 - 05.2006] UCK3#,4#..LIMD,SR5 |
55450-0C010 |
— | ||
|
55539A
|
55539A
55539-06010-B2
Cover, Spare Switch Hole
[08.2004 -] UCK31,41 DK.CHARCOAL,TRIM11 |
55539-06010-B2 |
— | ||
|
55539A
|
55539A
55539-06010-B4
Cover, Spare Switch Hole
[08.2004 -] UCK31,41 DK.GRAY,TRIM12 |
55539-06010-B4 |
— | ||
|
55539A
|
55539A
55539-06010-E2
Cover, Spare Switch Hole
[08.2004 -] UCK31,41 SANDAL WOOD,TRIM42,43 |
55539-06010-E2 |
— | ||
|
55539J
|
55539J
55539-AE010-C0
Cover, Spare Switch Hole
[08.2004 -] UCK31,41 BLACK |
55539-AE010-C0 |
— | ||
|
58804A
|
58804A
58804-0C011
Panel Sub-Assy, Console, Upper
[08.2004 -] UCK31,41 |
58804-0C011 |
— | ||
|
58804A
|
58804A
58804-0C051
Panel Sub-Assy, Console, Upper
[08.2004 -] UCK31,41..LIMD WOOD GRAIN |
58804-0C051 |
— | ||
|
58808
|
58808
58808-0C020
Cover Sub-Assy, Shifting Hole
[08.2004 -] UCK31,41 |
58808-0C020 |
— | ||
|
58810J
|
58810J
58810-0C040-B0
Box Assy, Console
[08.2004 -] UCK31,41 DK.CHARCOAL,TRIM11 |
58810-0C040-B0 |
— | ||
|
58810J
|
58810J
58810-0C040-B1
Box Assy, Console
[08.2004 -] UCK31,41 DK.GRAY,TRIM12 |
58810-0C040-B1 |
— | ||
|
58810J
|
58810J
58810-0C040-E1
Box Assy, Console
[08.2004 -] UCK31,41 SANDAL WOOD,TRIM42,43 |
58810-0C040-E1 |
— | ||
|
58811D
|
58811D
55346-04020-B0
Clip(For Console Box)
[08.2004 -] UCK31,41 DK.CHARCOAL,TRIM11 |
55346-04020-B0 |
— | ||
|
58811D
|
58811D
55346-04020-B1
Clip(For Console Box)
[08.2004 -] UCK31,41 DK.GRAY,TRIM12 |
55346-04020-B1 |
— | ||
|
58811D
|
58811D
55346-04020-E0
Clip(For Console Box)
[08.2004 -] UCK31,41 SANDAL WOOD,TRIM42,43 |
55346-04020-E0 |
— | ||
|
58815A
|
58815A
58815-0C020
Carpet, Console Box
[08.2004 -] UCK31,41 |
58815-0C020 |
— | ||
|
58821C
|
58821C
58821-0C070
Panel, Console, Upper
[08.2004 -] UCK31,41..LIMD WOOD GRAIN |
58821-0C070 |
— | ||
|
58825A
|
58825A
58825-0C021
Pocket, Console Box
[08.2004 -] UCK31,41 |
58825-0C021 |
— | ||
|
58839A
|
58839A
58839-0C010
Cover, Console Box Hole
[08.2004 -] UCK31,41 |
58839-0C010 |
— | ||
|
58902B
|
58902B
58902-0C021
Bracket Sub-Assy, Console Box Hinge, No.1
[08.2004 -] UCK31,41 |
58902-0C021 |
— | ||
|
58903B
|
58903B
58903-0C011
Bracket Sub-Assy, Console Box Hinge, No.2
[08.2004 -] UCK31,41 |
58903-0C011 |
— | ||
|
58905
|
58905
58905-0C020-B0
Door Sub-Assy, Console Compartment
[08.2004 - 05.2006] UCK3#,4#..LIMD,SR5 DK.CHARCOAL,TRIM11 |
58905-0C020-B0 |
— | ||
| replacement | |||||
|
58905
|
58905
58905-0C021-B0
Door Sub-Assy, Console Compartment
[08.2004 - 05.2006] UCK3#,4#..LIMD,SR5 DK.CHARCOAL,TRIM11 |
58905-0C021-B0 |
— | ||
|
58905
|
58905
58905-0C020-B1
Door Sub-Assy, Console Compartment
[08.2004 - 05.2006] UCK3#,4#..LIMD,SR5 DK.GRAY,TRIM12 |
58905-0C020-B1 |
— | ||
| replacement | |||||
|
58905
|
58905
58905-0C021-B1
Door Sub-Assy, Console Compartment
[08.2004 - 05.2006] UCK3#,4#..LIMD,SR5 DK.GRAY,TRIM12 |
58905-0C021-B1 |
— | ||
|
58905
|
58905
58905-0C020-E1
Door Sub-Assy, Console Compartment
[08.2004 - 05.2006] UCK3#,4#..LIMD,SR5 SANDAL WOOD,TRIM42,43 |
58905-0C020-E1 |
— | ||
| replacement | |||||
|
58905
|
58905
58905-0C021-E1
Door Sub-Assy, Console Compartment
[08.2004 - 05.2006] UCK3#,4#..LIMD,SR5 SANDAL WOOD,TRIM42,43 |
58905-0C021-E1 |
— | ||
|
58905
|
58905
58905-0C021-B0
Door Sub-Assy, Console Compartment
[06.2006 -] UCK3#,4#..LIMD,SR5 DK.CHARCOAL,TRIM11 |
58905-0C021-B0 |
— | ||
|
58905
|
58905
58905-0C021-B1
Door Sub-Assy, Console Compartment
[06.2006 -] UCK3#,4#..LIMD,SR5 DK.GRAY,TRIM12 |
58905-0C021-B1 |
— | ||
|
58905
|
58905
58905-0C021-E1
Door Sub-Assy, Console Compartment
[06.2006 -] UCK3#,4#..LIMD,SR5 SANDAL WOOD,TRIM4# |
58905-0C021-E1 |
— | ||
|
58907
|
58907
58907-0C010
Hinge Sub-Assy, Console Compartment Door
[08.2004 - 05.2006] UCK3#,4#..LIMD,SR5 |
58907-0C010 |
— | ||
|
58908A
|
58908A
58908-32050 Lock Sub-Assy, Console Compartment Door[08.2004 - 05.2006] UCK31,41 |
58908-32050 |
from US $9.18 |
||
|
58910C
|
58910C
58910-0C050-B0
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 DK.CHARCOAL,TRIM11 |
58910-0C050-B0 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-0C051-B0
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 DK.CHARCOAL,TRIM11 |
58910-0C051-B0 |
— | ||
|
58910C
|
58910C
58910-0C050-B1
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 DK.GRAY,TRIM12 |
58910-0C050-B1 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-0C051-B1
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 DK.GRAY,TRIM12 |
58910-0C051-B1 |
— | ||
|
58910C
|
58910C
58910-0C050-E1
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 SANDAL WOOD,TRIM42,43 |
58910-0C050-E1 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-0C051-E1
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 SANDAL WOOD,TRIM42,43 |
58910-0C051-E1 |
— | ||
|
58910C
|
58910C
58910-0C051-B0
Box Assy, Console, Rear
[06.2006 -] UCK31,41 DK.CHARCOAL,TRIM11 |
58910-0C051-B0 |
— | ||
|
58910C
|
58910C
58910-0C051-B1
Box Assy, Console, Rear
[06.2006 -] UCK31,41 DK.GRAY,TRIM12 |
58910-0C051-B1 |
— | ||
|
58910C
|
58910C
58910-0C051-E1
Box Assy, Console, Rear
[06.2006 -] UCK31,41 SANDAL WOOD,TRIM4# |
58910-0C051-E1 |
— | ||
|
58910C
|
58910C
58910-0C060-B0
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 W(REAR SEAT ENTERTAINMENT),DK.CHARCOAL,TRIM11 |
58910-0C060-B0 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-0C061-B0
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 W(REAR SEAT ENTERTAINMENT),DK.CHARCOAL,TRIM11 |
58910-0C061-B0 |
— | ||
|
58910C
|
58910C
58910-0C060-B1
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 W(REAR SEAT ENTERTAINMENT),DK.GRAY,TRIM12 |
58910-0C060-B1 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-0C061-B1
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 W(REAR SEAT ENTERTAINMENT),DK.GRAY,TRIM12 |
58910-0C061-B1 |
— | ||
|
58910C
|
58910C
58910-0C060-E1
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 W(REAR SEAT ENTERTAINMENT),SANDAL WOOD,TRIM42,43 |
58910-0C060-E1 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-0C061-E1
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 W(REAR SEAT ENTERTAINMENT),SANDAL WOOD,TRIM42,43 |
58910-0C061-E1 |
— | ||
|
58910C
|
58910C
58910-0C061-B0
Box Assy, Console, Rear
[06.2006 -] UCK31,41 W(REAR SEAT ENTERTAINMENT),DK.CHARCOAL,TRIM11 |
58910-0C061-B0 |
— | ||
|
58910C
|
58910C
58910-0C061-B1
Box Assy, Console, Rear
[06.2006 -] UCK31,41 W(REAR SEAT ENTERTAINMENT),DK.GRAY,TRIM12 |
58910-0C061-B1 |
— | ||
|
58910C
|
58910C
58910-0C061-E1
Box Assy, Console, Rear
[06.2006 -] UCK31,41 W(REAR SEAT ENTERTAINMENT),SANDAL WOOD,TRIM4# |
58910-0C061-E1 |
— | ||
|
58910C
|
58910C
58910-0C070-B0
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 W(REAR SEAT AUDIO SYSTEM),DK.CHARCOAL,TRIM11 |
58910-0C070-B0 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-0C071-B0
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 W(REAR SEAT AUDIO SYSTEM),DK.CHARCOAL,TRIM11 |
58910-0C071-B0 |
— | ||
|
58910C
|
58910C
58910-0C070-B1
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 W(REAR SEAT AUDIO SYSTEM),DK.GRAY,TRIM12 |
58910-0C070-B1 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-0C071-B1
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 W(REAR SEAT AUDIO SYSTEM),DK.GRAY,TRIM12 |
58910-0C071-B1 |
— | ||
|
58910C
|
58910C
58910-0C070-E1
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 W(REAR SEAT AUDIO SYSTEM),SANDAL WOOD,TRIM42,43 |
58910-0C070-E1 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-0C071-E1
Box Assy, Console, Rear
[08.2004 - 05.2006] UCK31,41 W(REAR SEAT AUDIO SYSTEM),SANDAL WOOD,TRIM42,43 |
58910-0C071-E1 |
— | ||
|
58910C
|
58910C
58910-0C071-B0
Box Assy, Console, Rear
[06.2006 -] UCK31,41 W(REAR SEAT AUDIO SYSTEM),DK.CHARCOAL,TRIM11 |
58910-0C071-B0 |
— | ||
|
58910C
|
58910C
58910-0C071-B1
Box Assy, Console, Rear
[06.2006 -] UCK31,41 W(REAR SEAT AUDIO SYSTEM),DK.GRAY,TRIM12 |
58910-0C071-B1 |
— | ||
|
58910C
|
58910C
58910-0C071-E1
Box Assy, Console, Rear
[06.2006 -] UCK31,41 W(REAR SEAT AUDIO SYSTEM),SANDAL WOOD,TRIM4# |
58910-0C071-E1 |
— | ||
|
58916A
|
58916A
58916-0C020
Insert, Console Box, Rear
[08.2004 -] UCK31,41 |
58916-0C020 |
— | ||
|
58925A
|
58925A
58925-0C010-B0
Pocket, Console Box, Rear
[08.2004 -] UCK31,41 DK.CHARCOAL,TRIM11 |
58925-0C010-B0 |
— | ||
|
58925A
|
58925A
58925-0C010-B1
Pocket, Console Box, Rear
[08.2004 -] UCK31,41 DK.GRAY,TRIM12 |
58925-0C010-B1 |
— | ||
|
58925A
|
58925A
58925-0C010-E1
Pocket, Console Box, Rear
[08.2004 -] UCK31,41 SANDAL WOOD,TRIM42,43 |
58925-0C010-E1 |
— | ||
|
58944A
|
58944A
58944-0C010
Cover, Console, Rear
[08.2004 -] UCK31,41 |
58944-0C010 |
— | ||
|
58945B
|
58945B
58945-0C030-B0
Garnish, Console, Rr
[08.2004 -] UCK31,41 DK.CHARCOAL,TRIM11 |
58945-0C030-B0 |
— | ||
|
58945B
|
58945B
58945-0C030-B1
Garnish, Console, Rr
[08.2004 -] UCK31,41 DK.GRAY,TRIM12 |
58945-0C030-B1 |
— | ||
|
58945B
|
58945B
58945-0C030-E1
Garnish, Console, Rr
[08.2004 -] UCK31,41 SANDAL WOOD,TRIM42,43 |
58945-0C030-E1 |
— | ||
|
58960C
|
58960C
58960-0C010
Holder Assy, Cassette Case
[08.2004 - 05.2006] UCK3#,4#..LIMD,SR5 |
58960-0C010 |
— | ||
|
58996A
|
58996A
58996-0C010
Bracket, Console Box Mounting, No.2
[08.2004 -] UCK31,41 |
58996-0C010 |
— | ||
|
58997
|
58997
58997-0C010
Bracket, Console Box Mounting, No.3
[08.2004 -] UCK31,41 |
58997-0C010 |
— | ||
|
9008011372
|
9008011372
90080-11372
New Genuine Part
|
90080-11372 |
— | ||
|
9008011546
|
9008011546
90080-11546
New Genuine Part
|
90080-11546 |
— | ||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9054103078
|
9054103078
90541-03078 Cushion(For Cup Holder) |
90541-03078 |
from US $1.66 |
||
|
9356854518
|
9356854518
93568-54518 New Genuine Part |
93568-54518 |
US $1.46 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
