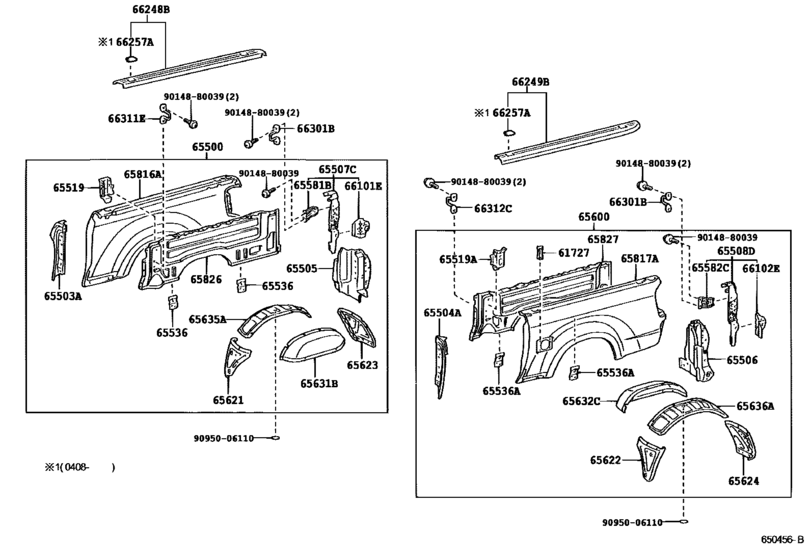

Rear Body Side Panel ([10.2003 - ] (0310- )UCK31,41) Diagram Toyota TUNDRA
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- UCK41
- grade
- LIMD
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- DECK
- SD
- CAB
- DCB
- From
- 08.2004
- To
- 12.2006
- Gear Shift Type
- 5HC
- Vehicle Model
- TUNDRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61727
|
61727
61727-34010 Plate, Fuel Inlet Box ShieldFUEL INLET BOX SHIELD [08.2004 -] GSK30,UCK3#,4#..SD |
61727-34010 |
US $5.24 |
||
|
65500
|
65500
65500-0C070
Panel Assy, Rear Body Side, Rh
[08.2004 -] UCK31,41 W(OVER FENDER) |
65500-0C070 |
— | ||
|
65503A
|
65503A
65503-0C040
Post Sub-Assy, Side Panel Front End, Rh
[08.2004 -] UCK31,41 |
65503-0C040 |
— | ||
|
65504A
|
65504A
65504-0C040
Post Sub-Assy, Side Panel Front End, Lh
[08.2004 -] UCK31,41 |
65504-0C040 |
— | ||
|
65505
|
65505
65505-0C901
Post Sub-Assy, Side Panel Rear End, Rh
[08.2004 -] UCK31,41 |
65505-0C901 |
— | ||
|
65506
|
65506
65506-0C901
Post Sub-Assy, Side Panel Rear End, Lh
[08.2004 -] UCK31,41 |
65506-0C901 |
— | ||
|
65507C
|
65507C
65507-0C020
Post Sub-Assy, Side Panel Rear End, Out Rh
[08.2004 -] UCK31,41 |
65507-0C020 |
— | ||
|
65508D
|
65508D
65508-0C010
Post Sub-Assy, Side Panel Rear End, Out Lh
[08.2004 -] UCK31,41 |
65508-0C010 |
— | ||
|
65519
|
65519
65519-34010 Bracket, Top RailTOP RAIL [08.2004 -] GSK30,UCK3#,4#..SD..(LIMD,SR5) |
65519-34010 |
US $27.08 |
||
|
65519A
|
65519A
65519-34010 Bracket, Top RailTOP RAIL [08.2004 -] GSK30,UCK3#,4#..SD..(LIMD,SR5) |
65519-34010 |
US $27.08 |
||
|
65536
|
65536
65536-0C020
Patch, Side Panel Reinforcement, No.1
[08.2004 -] UCK31,41 |
65536-0C020 |
— | ||
|
65536A
|
65536A
65536-0C020
Patch, Side Panel Reinforcement, No.1
[08.2004 -] UCK31,41 |
65536-0C020 |
— | ||
|
65581B
|
65581B
65581-34020 Reinforcement, Rear End Post, RhREAR END POST, RH [08.2004 -] GSK30,UCK3#,4#..SD |
65581-34020 |
US $24.02 |
||
|
65582C
|
65582C
65581-34020 Reinforcement, Rear End Post, RhREAR END POST, RH [08.2004 -] GSK30,UCK3#,4#..SD |
65581-34020 |
US $24.02 |
||
|
65600
|
65600
65600-0C060
Panel Assy, Rear Body Side, Lh
[08.2004 -] UCK31,41 W(OVER FENDER) |
65600-0C060 |
— | ||
|
65621
|
65621
65621-0C030
Skirt, Side Panel, Front Rh
[08.2004 -] UCK31,41 |
65621-0C030 |
— | ||
|
65622
|
65622
65622-0C030
Skirt, Side Panel, Front Lh
[08.2004 -] UCK31,41 |
65622-0C030 |
— | ||
|
65623
|
65623
65623-0C030
Skirt, Side Panel, Rr Rh
[08.2004 -] UCK31,41 |
65623-0C030 |
— | ||
|
65624
|
65624
65624-0C030
Skirt, Side Panel, Rr Lh
[08.2004 -] UCK31,41 |
65624-0C030 |
— | ||
|
65631B
|
65631B
65631-34030 Panel, Wheel House, RhWHEEL HOUSE, RH [08.2004 -] GSK30,UCK3#,4#..SD |
65631-34030 |
US $138.32 |
||
|
65632C
|
65632C
65632-34030 Panel, Wheel House, LhWHEEL HOUSE, LH [08.2004 -] GSK30,UCK3#,4#..SD |
65632-34030 |
US $138.32 |
||
|
65635A
|
65635A
65635-0C040
Panel, Wheel House, Rear Rh
[08.2004 -] UCK31,41 |
65635-0C040 |
— | ||
|
65636A
|
65636A
65636-0C040
Panel, Wheel House, Rear Lh
[08.2004 -] UCK31,41 |
65636-0C040 |
— | ||
|
65816A
|
65816A
65816-0C060
Panel, Rear Body Side, Rh
[08.2004 -] UCK31,41 W(OVER FENDER) |
65816-0C060 |
— | ||
|
65817A
|
65817A
65817-0C060
Panel, Rear Body Side, Lh
[08.2004 -] UCK31,41 W(OVER FENDER) |
65817-0C060 |
— | ||
|
65826
|
65826
65826-0C040
Panel, Rear Body Side, Inner Rh
[08.2004 -] UCK31,41 |
65826-0C040 |
— | ||
|
65827
|
65827
65827-0C040
Panel, Rear Body Side, Inner Lh
[08.2004 -] UCK31,41 |
65827-0C040 |
— | ||
|
66101E
|
66101E
66101-0C050
Hinge Sub-Assy, Tail Gate Male, Rh
[08.2004 -] UCK31,41 |
66101-0C050 |
— | ||
|
66102E
|
66102E
66102-0C050
Hinge Sub-Assy, Tail Gate Male, Lh
[08.2004 -] UCK31,41 |
66102-0C050 |
— | ||
|
66248B
|
66248B
66248-0C030
Protector, Rear Body Side Panel, Rh
[08.2004 -] UCK31,41 |
66248-0C030 |
— | ||
|
66249B
|
66249B
66249-0C030
Protector, Rear Body Side Panel, Lh
[08.2004 -] UCK31,41 |
66249-0C030 |
— | ||
|
66257A
|
66257A
66257-0C010 Plate, Rear Body Protector, RhREAR BODY PROTECTOR, RH [08.2004 -] GSK30,UCK3#,4#..SD..(LIMD,SR5) |
66257-0C010 |
US $5.24 |
||
|
66301B
|
66301B
66312-34010 Hook Sub-Assy, Rope[08.2004 -] UCK31,41;UCK30,40..SSD |
66312-34010 |
US $12.48 |
||
|
66311E
|
66311E
66312-34010 Hook Sub-Assy, Rope[08.2004 -] UCK31,41;UCK30,40..SSD |
66312-34010 |
US $12.48 |
||
|
66312C
|
66312C
66312-34010 Hook Sub-Assy, Rope[08.2004 -] UCK31,41;UCK30,40..SSD |
66312-34010 |
US $12.48 |
||
|
9014880039
|
9014880039
90148-80039 Screw Hex Lobular |
90148-80039 |
US $1.46 |
||
|
9095006110
|
9095006110
90950-06110 New Genuine Part |
90950-06110 |
US $0.58 |
