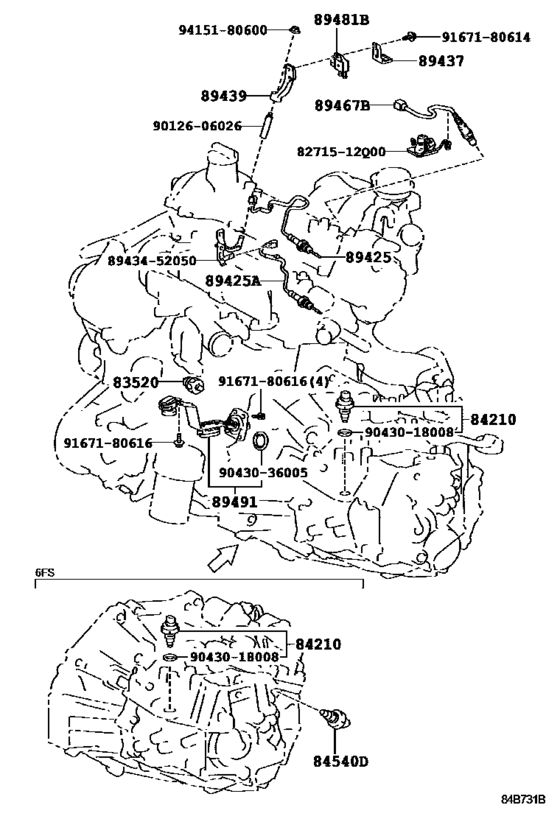

Switch & Relay & Computer ([11.2010 - ] ENGINE & TRANSMISSION (1011- )NLP121) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NLP121
- grade
- LUNA
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83520
|
83520
83520-60060 Gage Assy, Oil Pressure Sender[11.2010 - 05.2014] NLP121 |
83520-60060 |
from US $37.54 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[11.2010 - 04.2012] NLP121,NSP120..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[11.2010 - 04.2012] NLP121,NSP120..MTM |
84210-52050 |
from US $20.67 |
||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[05.2012 - 05.2014] NLP121,NSP120..MTM |
84210-52050 |
from US $20.67 |
||
|
89425
|
89425
89425-52030 Sensor, Exhaust Gas Temperature[11.2010 - 10.2011] NLP121 |
89425-52030 |
US $224.22 |
||
| replacement | |||||
|
89425
|
89425
89425-52031
Sensor, Exhaust Gas Temperature
[11.2010 - 10.2011] NLP121 |
89425-52031 |
— | ||
|
89425
|
89425
89425-52031
Sensor, Exhaust Gas Temperature
[10.2011 - 05.2014] NLP121 |
89425-52031 |
— | ||
|
89425A
|
89425A
89425-52021 Sensor, Exhaust Gas Temperature, No.2EXHAUST GAS TEMPERATURE NO.2 [11.2010 - 05.2014] NLP121 |
89425-52021 |
US $218.40 |
||
|
89437
|
89437
89437-12110 Cover, SensorSENSOR [11.2010 - 05.2014] NLP121 |
89437-12110 |
US $3.93 |
||
|
89439
|
89439
89439-52010 Bracket, SensorSENSOR [11.2010 - 05.2014] NLP121 |
89439-52010 |
US $20.82 |
||
|
89467B
|
89467B
89467-02080
Sensor, Air Fuel Ratio
[07.2011 - 05.2014] NLP121 (L) |
89467-02080 |
— | ||
|
89467B
|
89467B
89467-12130 Sensor, Air Fuel Ratio[07.2011 - 05.2014] NLP121 (J) |
89467-12130 |
US $147.06 |
||
|
89467B
|
89467B
89467-12170 Sensor, Air Fuel RatioAIR FUEL RATIO [11.2010 - 06.2011] NLP121 |
89467-12170 |
US $174.72 |
||
| replacement | |||||
|
89467B
|
89467B
89467-12130 Sensor, Air Fuel Ratio[11.2010 - 06.2011] NLP121 |
89467-12130 |
US $147.06 |
||
|
89481B
|
89481B
89481-12050 Sensor, Differential PressureDIFFERENTIAL PRESSURE [11.2010 - 05.2014] NLP121 |
89481-12050 |
US $162.72 |
||
|
89491
|
89491
89491-52050 Sensor, Engine Oil Level[11.2010 - 12.2011] NLP121 |
89491-52050 |
US $161.62 |
||
| replacement | |||||
|
89491
|
89491
89491-52051 Sensor, Engine Oil Level[11.2010 - 12.2011] NLP121 |
89491-52051 |
US $190.44 |
||
|
89491
|
89491
89491-52051 Sensor, Engine Oil Level[12.2011 - 05.2014] NLP121 |
89491-52051 |
US $190.44 |
||
|
8271512Q00
|
8271512Q00
82715-12Q00 Bracket,wiring Harness Clamp |
82715-12Q00 |
US $12.08 |
||
|
8943452050
|
8943452050
89434-52050 Bracket, Manifold Temperature Sensor |
89434-52050 |
US $2.62 |
||
|
9012606026
|
9012606026
90126-06026 Bolt, Stud(Manifold To Throttle Body) |
90126-06026 |
from US $0.70 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9043036005
|
9043036005
90430-36005 Gasket, Engine Oil Level Sensor |
90430-36005 |
US $1.54 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
