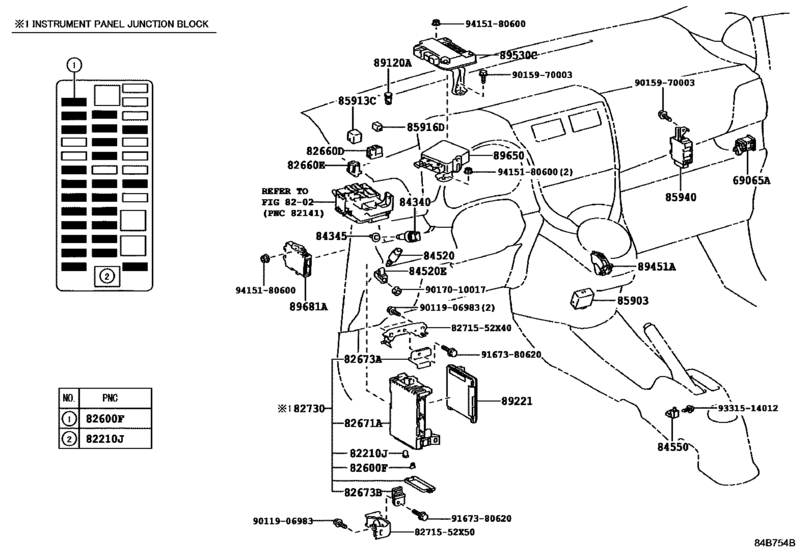

Switch & Relay & Computer ([11.2010 - ] COWL (1011- )LHD) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NLP121
- grade
- LUNA
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69065A
|
69065A
69065-12460 Cylinder Sub-Assy, Air Bag Cut Off Switch[08.2012 - 05.2014] NLP121,NSP120 |
69065-12460 |
US $38.88 |
||
|
69065A
|
69065A
69065-52040 Cylinder Sub-Assy, Air Bag Cut Off Switch[11.2010 - 07.2012] NLP121,NSP120 |
69065-52040 |
US $42.81 |
||
|
69065A
|
69065A
69065-52050 Cylinder Sub-Assy, Air Bag Cut Off Sw[11.2010 - 08.2012] NLP121,NSP120..LUNA HI GRADE(WITH/PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO); NLP121..6F..LUNA HI GRADE 1.4 DIESEL COLD S(W/O PANORAMA)&COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY); NLP121..6F..LUNA HI |
69065-52050 |
US $42.81 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[11.2010 - 05.2014] NLP121,NSP120 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[11.2010 - 05.2014] NLP121,NSP120 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08300 Fusible Link[11.2010 - 05.2014] NLP121,NSP120 50A-30A-30A,FEMALE |
90982-08300 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08305 Fusible Link[11.2010 - 12.2012] NLP121..6F 80A,TERMINAL:FEMALE,TURKEY SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT |
90982-08305 |
US $6.24 |
||
|
82210J
|
82210J
90982-08306 Fusible Link[11.2010 - 05.2014] NLP121,NSP120 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[11.2010 - 12.2012] NSP120..LHD 5A,MINI FUSE,UKRAINE SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT; NLP121..6F;NSP120..LHD 5A,MINI FUSE,TURKEY SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT; NSP120..LHD 5A,MINI FUSE,RUSSIA SPEC&COLD SPEC |
90982-09019 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[11.2010 - 12.2012] NSP120..LHD 7.5A,MINI FUSE,UKRAINE SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT; NLP121..6F;NSP120..LHD 7.5A,MINI FUSE,TURKEY SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT; NSP120..LHD 7.5A,MINI FUSE,RUSSIA SPEC&COLD |
90982-09020 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[11.2010 - 12.2012] NSP120..LHD 10A,MINI FUSE,UKRAINE SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT; NLP121..6F;NSP120..LHD 10A,MINI FUSE,TURKEY SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT; NSP120..LHD 10A,MINI FUSE,RUSSIA SPEC&COLD SP |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[11.2010 - 12.2012] NSP120..LHD 15A,MINI FUSE,UKRAINE SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT; NLP121..6F;NSP120..LHD 15A,MINI FUSE,TURKEY SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT; NSP120..LHD 15A,MINI FUSE,RUSSIA SPEC&COLD SP |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[11.2010 - 12.2012] NSP120..LHD 20A,MINI FUSE,UKRAINE SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT; NLP121..6F;NSP120..LHD 20A,MINI FUSE,TURKEY SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT; NSP120..LHD 20A,MINI FUSE,RUSSIA SPEC&COLD SP |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[11.2010 - 12.2012] NSP120..LHD 25A,MINI FUSE,UKRAINE SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT; NLP121..6F;NSP120..LHD 25A,MINI FUSE,TURKEY SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT; NSP120..LHD 25A,MINI FUSE,RUSSIA SPEC&COLD SP |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[11.2010 - 05.2014] NLP121,NSP120 30A,MINI FUSE |
90982-09025 |
from US $0.92 |
||
|
82660D
|
82660D
82660-48020 Block Assy, Relay, Engine RoomRELAY [11.2010 - 05.2014] NLP121,NSP120 |
82660-48020 |
from US $7.68 |
||
|
82660E
|
82660E
82660-52100 Block Assy, Relay[11.2010 - 05.2014] NLP121,NSP120 |
82660-52100 |
US $5.82 |
||
|
82671A
|
82671A
82732-52200 Block, Junction[11.2010 - 05.2014] NLP121,NSP120 |
82732-52200 |
US $96.10 |
||
|
82671A
|
82671A
82732-52210 Block, Junction[11.2010 - 05.2014] NLP121,NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
82732-52210 |
US $96.10 |
||
|
82673A
|
82673A
82673-52150 Bracket, Junction Block[11.2010 - 05.2014] NLP121,NSP120 |
82673-52150 |
US $5.97 |
||
|
82673B
|
82673B
82673-52160 Bracket, Junction Block[11.2010 - 05.2014] NLP121,NSP120 |
82673-52160 |
US $5.97 |
||
|
82730
|
82730
82730-52L70
Block Assy, Instrument Panel Junction
[11.2010 - 05.2014] NLP121,NSP120 |
82730-52L70 |
— | ||
|
82730
|
82730
82730-52N60 Block Assy, Instrument Panel Junction[11.2010 - 05.2014] NLP121,NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
82730-52N60 |
US $195.10 |
||
|
84340
|
84340
84340-19025
Switch Assy, Stop Lamp
[11.2010 - 05.2014] NLP121,NSP120 |
84340-19025 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-19026 SWITCH ASSY, STOP[11.2010 - 05.2014] NLP121,NSP120 |
84340-19026 |
from US $21.12 |
||
|
84340
|
84340
84340-39015 Switch Assy, Stop Lamp[05.2014 - 04.2015] NLP121,NSP120 |
84340-39015 |
from US $24.16 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[11.2010 - 05.2014] NLP121,NSP120 |
84345-51010 |
from US $3.49 |
||
|
84520
|
84520
88280-42010 Switch Assy, ClutchCLUTCH [11.2010 - 05.2014] NLP121,NSP120..LHD..6F |
88280-42010 |
from US $15.52 |
||
|
84520E
|
84520E
84520-42010 Switch Assy, Clutch Start[11.2010 - 05.2014] NLP121,NSP120..6F |
84520-42010 |
from US $34.13 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[11.2010 - 05.2014] NLP121,NSP120 |
84550-33010 |
from US $18.39 |
||
|
85913C
|
85913C
90987-04010 Relay Assy (For Heater Blower Motor)[11.2010 - 05.2014] NLP121,NSP120; NLP121,NSP120..LUNA FRONT AIR CONDITIONER-WITH(AUTO) |
90987-04010 |
from US $42.71 |
||
|
85916D
|
85916D
90987-02027 Relay[11.2010 - 05.2014] NLP121,NSP120..LUNA; NLP121,NSP120..LUNA FRONT FOG LAMP-WITHOUT |
90987-02027 |
from US $44.54 |
||
|
85940
|
85940
85940-52010 Relay Assy, Windshield Wiper[11.2010 - 05.2014] NLP121,NSP120..LUNA HI GRADE(WITH/PANORAMA); NLP121..6F..LUNA HI GRADE 1.4 DIESEL COLD S(W/O PANORAMA); NLP121,NSP120..LUNA HI GRADE (WITHOUT PANORAMA) |
85940-52010 |
US $154.34 |
||
|
89120A
|
89120A
89121-52010 Sensor, Automatic Light Control[11.2010 - 05.2014] NSP120..RHD..LUNA HI GRADE(WITH/PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO); NLP121..6F..LUNA HI GRADE 1.4 DIESEL COLD S(W/O PANORAMA)&FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONL Y); NLP121..6F..LUNA HI GRADE 1.4 DIESEL COLD S(W/O PANORAM |
89121-52010 |
US $119.88 |
||
|
89221
|
89221
89220-52050 Computer, Multiplex Network Body[11.2010 - 04.2011] NLP121,NSP120..LHD..MTM; NSP120..LHD..6F RUSSIA SPEC&COLD SPEC & WITH(REAR HEATER DUCT) |
89220-52050 |
US $602.78 |
||
| replacement | |||||
|
89221
|
89221
89220-52051 Computer, Multiplex Network Body[11.2010 - 04.2011] NLP121,NSP120..LHD..MTM; NSP120..LHD..6F RUSSIA SPEC&COLD SPEC & WITH(REAR HEATER DUCT) |
89220-52051 |
US $602.78 |
||
|
89221
|
89221
89220-52051 Computer, Multiplex Network Body[05.2011 - 11.2011] NLP121,NSP120..LHD..MTM; NSP120..LHD..6F RUSSIA SPEC&COLD SPEC & WITH(REAR HEATER DUCT) |
89220-52051 |
US $602.78 |
||
|
89221
|
89221
89220-52052 Computer, Multiplex Network Body[11.2011 - 05.2014] NLP121,NSP120..LHD..MTM |
89220-52052 |
US $502.32 |
||
|
89221
|
89221
89220-52070 Computer, Multiplex Network Body[11.2010 - 04.2011] NLP121,NSP120..LHD..MTM COLD SPEC & WITH(REAR HEATER DUCT) |
89220-52070 |
US $602.78 |
||
| replacement | |||||
|
89221
|
89221
89220-52071 Computer, Multiplex Network Body[11.2010 - 04.2011] NLP121,NSP120..LHD..MTM COLD SPEC & WITH(REAR HEATER DUCT) |
89220-52071 |
US $602.78 |
||
|
89221
|
89221
89220-52071 Computer, Multiplex Network Body[05.2011 - 11.2011] NLP121,NSP120..LHD..MTM COLD SPEC & WITH(REAR HEATER DUCT) |
89220-52071 |
US $602.78 |
||
|
89221
|
89221
89220-52072 Computer, Multiplex Network Body[11.2011 - 05.2014] NLP121,NSP120..LHD..MTM COLD SPEC & WITH(REAR HEATER DUCT) |
89220-52072 |
US $502.32 |
||
|
89221
|
89221
89220-52830
Computer, Multiplex Network Body
[05.2014 - 04.2015] NLP121,NSP120..LHD..6F |
89220-52830 |
— | ||
|
89650
|
89650
89650-52600 Computer Assy, Power Steering[11.2010 - 01.2012] NLP121..6F;NSP120..LHD |
89650-52600 |
US $553.28 |
||
| replacement | |||||
|
89650
|
89650
89650-52601 Computer Assy, Power Steering[11.2010 - 01.2012] NLP121..6F;NSP120..LHD |
89650-52601 |
US $460.10 |
||
|
89650
|
89650
89650-52601 Computer Assy, Power Steering[02.2012 - 05.2014] NLP121..6F;NSP120..LHD |
89650-52601 |
US $460.10 |
||
|
89650
|
89650
89650-52602
Computer Assy, Power Steering
[05.2014 - 04.2015] NLP121,NSP120..LHD |
89650-52602 |
— | ||
|
89681A
|
89681A
89690-52050 Computer, Power Management Control[11.2010 - 05.2014] NLP121,NSP120; NLP121..6F;NSP120..LHD WITH(STOP & START SYSTEM) |
89690-52050 |
US $264.99 |
||
|
8271552X40
|
8271552X40
82715-52X40 Bracket,wiring Harness Clamp |
82715-52X40 |
US $8.44 |
||
|
8271552X50
|
8271552X50
82715-52X50 Bracket,wiring Harness Clamp |
82715-52X50 |
US $11.94 |
||
|
9011906983
|
9011906983
90119-06983 New Genuine Part |
90119-06983 |
US $0.96 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.60 |
||
|
9167380620
|
9167380620
91673-80620 Bolt |
91673-80620 |
US $0.96 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.80 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
