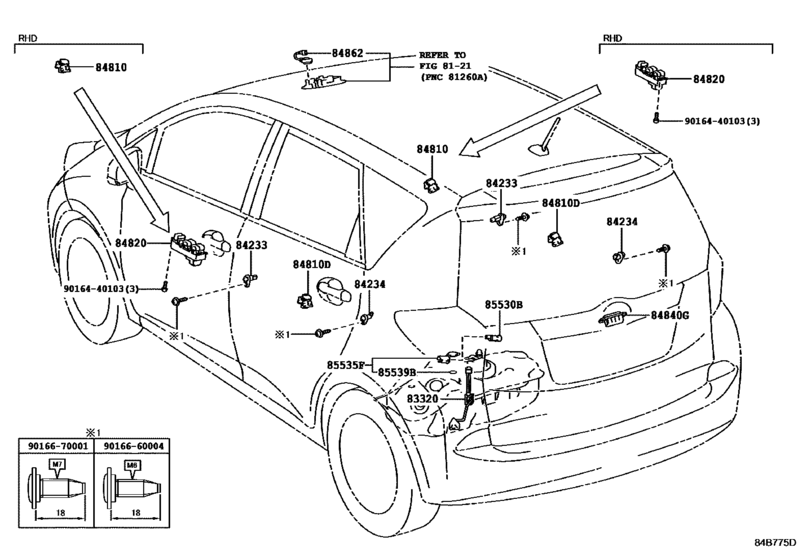

Switch & Relay & Computer ([11.2010 - ] DOOR,ROOF,FLOOR & BACK DOOR (1011- )) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NLP121
- grade
- LUNA
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-0D051
Gage Assy, Fuel Sender
[11.2010 - 02.2014] NLP121 |
83320-0D051 |
— | ||
| replacement | |||||
|
83320
|
83320
83320-52261 Gage Assy, Fuel Sender[11.2010 - 02.2014] NLP121 |
83320-52261 |
from US $63.38 |
||
|
83320
|
83320
83320-52261 Gage Assy, Fuel Sender[03.2014 - 05.2014] NLP121 |
83320-52261 |
from US $63.38 |
||
|
84233
|
84233
84231-52010 Switch Assy, Courtesy Lamp (For Front Door)[11.2010 - 05.2014] NLP121,NSP120 |
84231-52010 |
US $10.56 |
||
|
84233
|
84233
84231-52230 Switch Assy, Courtesy Lamp (For Front Door)[11.2014 - 04.2015] NLP121,NSP120 |
84231-52230 |
US $46.06 |
||
|
84234
|
84234
84231-52020 Switch Assy, Courtesy Lamp (For Front Door)[11.2010 - 05.2014] NLP121,NSP120 |
84231-52020 |
from US $10.56 |
||
|
84810
|
84810
84810-52030 Switch Assy, Power Window Regulator[11.2010 - 05.2014] NLP121,NSP120 |
84810-52030 |
from US $37.54 |
||
|
84810D
|
84810D
84810-52030 Switch Assy, Power Window Regulator[11.2010 - 05.2014] NLP121,NSP120..LUNA POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
84810-52030 |
from US $37.54 |
||
|
84820
|
84820
84820-52440 Master Switch Assy, Power Window Regulator[11.2010 - 05.2014] NLP121,NSP120..LHD..LUNA POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
84820-52440 |
US $242.48 |
||
|
84820
|
84820
84820-52460 Master Switch Assy, Power Window Regulator[11.2010 - 05.2014] NLP121,NSP120..LHD |
84820-52460 |
US $109.20 |
||
|
84840G
|
84840G
84840-28030 Switch Assy, Luggage Compartment Door Opening[11.2010 - 05.2014] NLP121,NSP120 |
84840-28030 |
from US $38.91 |
||
|
84840G
|
84840G
84840-28040 Switch Assy, Back Door Opener[11.2010 - 05.2014] NLP121..LUNA HI GRADE(WITH/PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START); NSP120..LUNA HI GRADE(WITH/PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) &FRONT AIR CONDITIONER-WITH(AUTO); NLP121. |
84840-28040 |
from US $64.60 |
||
|
84862
|
84862
84862-52010-B0 Switch, Slide Roof Motor[11.2010 - 05.2014] NLP121,NSP120..LUNA MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE),LT.GRAY,TRIM1#,2#,4# |
84862-52010-B0 |
US $34.36 |
||
|
85530B
|
85530B
85530-42010 Socket Assy, Power Outlet, No.1[11.2010 - 05.2014] NLP121,NSP120 |
85530-42010 |
from US $26.60 |
||
|
85535F
|
85535F
85535-35080-C0 Cover, Power Outlet Socket, No.1POWER OUTLET SOCKET, REAR [11.2010 - 05.2014] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..TERRA BLACK,TRIM2# |
85535-35080-C0 |
US $6.88 |
||
|
85539B
|
85539B
85539-60020 Label, Power Outlet Notice[11.2010 - 05.2014] NLP121,NSP120 |
85539-60020 |
US $1.41 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016660004
|
9016660004
90166-60004 New Genuine Part |
90166-60004 |
US $0.96 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
