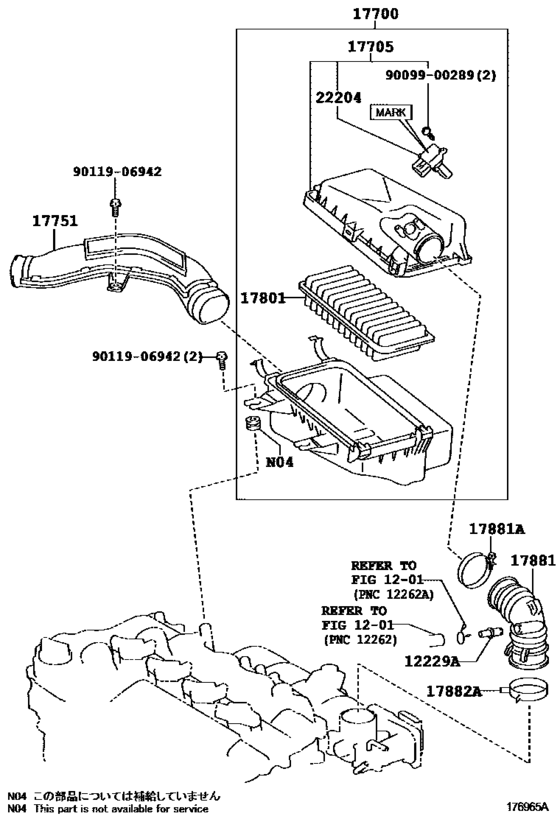

Air Cleaner ([11.2010 - ] (1011- )1NRFE) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12229A
|
12229A
12229-21010 Pipe, VentilationVENTILATION [11.2010 - 05.2014] 1NRFE..NSP120 |
12229-21010 |
US $8.48 |
||
|
17700
|
17700
17700-47150 Cleaner Assy, Air[11.2010 - 03.2011] 1NRFE..NSP120 |
17700-47150 |
US $279.55 |
||
| replacement | |||||
|
17700
|
17700
17700-47151 Cleaner Assy, Air[11.2010 - 03.2011] 1NRFE..NSP120 |
17700-47151 |
US $211.12 |
||
|
17700
|
17700
17700-47151 Cleaner Assy, Air[04.2011 - 05.2014] 1NRFE..NSP120 |
17700-47151 |
US $211.12 |
||
|
17705
|
17705
17705-47101
Cap Sub-Assy, Air Cleaner
[11.2010 - 03.2011] 1NRFE..NSP120 |
17705-47101 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-47102
Cap Sub-Assy, Air Cleaner
[11.2010 - 03.2011] 1NRFE..NSP120 |
17705-47102 |
— | ||
|
17705
|
17705
17705-47102
Cap Sub-Assy, Air Cleaner
[04.2011 - 05.2014] 1NRFE..NSP120 |
17705-47102 |
— | ||
|
17751
|
17751
17751-47060 Inlet, Air Cleaner, No.1[11.2010 - 05.2014] 1NRFE..NSP120 |
17751-47060 |
US $33.05 |
||
|
17801
|
17801
17801-21030 Element Sub-Assy, Air Cleaner Filter[11.2010 - 05.2014] 1NRFE..NSP120 |
17801-21030 |
from US $31.10 |
||
|
17881
|
17881
17881-47060 Hose, Air Cleaner, No.1[11.2010 - 05.2014] 1NRFE..NSP120 |
17881-47060 |
US $27.81 |
||
|
17881A
|
17881A
96111-10690 Clamp, Hose[11.2010 - 05.2014] 1NRFE..NSP120 |
96111-10690 |
from US $2.56 |
||
|
17882A
|
17882A
90466-62002 Clamp(For Air Cleaner Hose, No.1)[11.2010 - 05.2014] 1NRFE..NSP120 |
90466-62002 |
from US $5.12 |
||
|
22204
|
22204
22204-0T040 Meter Sub-Assy, Intake Air Flow[04.2011 - 05.2014] 1NRFE..NSP120 MARK 22204-0T040 |
22204-0T040 |
US $221.31 |
||
| replacement | |||||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [04.2011 - 05.2014] 1NRFE..NSP120 MARK 22204-0T040 |
22204-28010 |
from US $178.56 |
||
|
22204
|
22204
22204-0V010
Meter Sub-Assy, Intake Air Flow
[04.2011 - 05.2014] 1NRFE..NSP120 MARK 22204-0V010 |
22204-0V010 |
— | ||
|
22204
|
22204
22204-0V020 Meter Sub-Assy, Intake Air Flow[04.2011 - 05.2014] 1NRFE..NSP120 MARK 22204-0V020 |
22204-0V020 |
US $143.87 |
||
| replacement | |||||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [04.2011 - 05.2014] 1NRFE..NSP120 MARK 22204-0V020 |
22204-28010 |
from US $178.56 |
||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [04.2011 - 05.2014] 1NRFE..NSP120 MARK 22204-28010 |
22204-28010 |
from US $178.56 |
||
|
22204
|
22204
22204-37010
Meter Sub-Assy, Intake Air Flow
[11.2010 - 03.2011] 1NRFE..NSP120 |
22204-37010 |
— | ||
| replacement | |||||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [11.2010 - 03.2011] 1NRFE..NSP120 |
22204-28010 |
from US $178.56 |
||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.70 |
||
|
9011906942
|
9011906942
90119-06942 BOLT WWASHER |
90119-06942 |
from US $0.96 |
||
