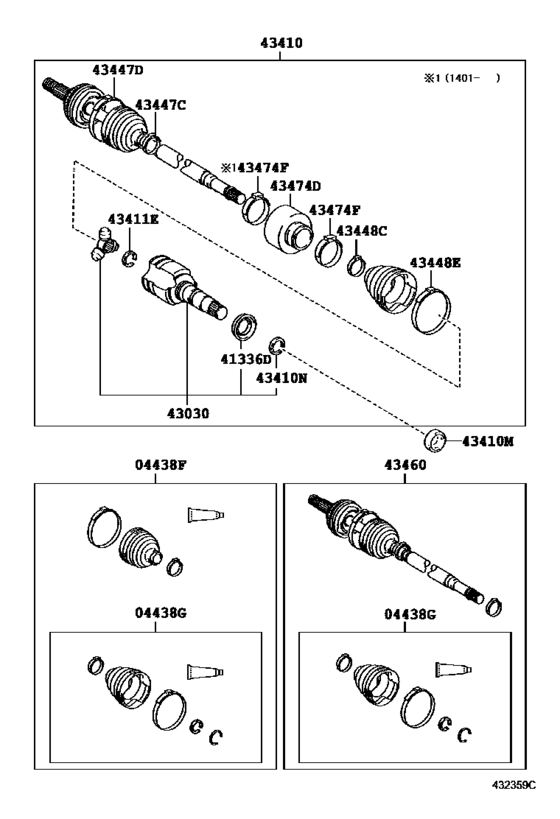

Front Drive Shaft ([11.2010 - ] RH (1011- )NSP120..6F) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04427-52890
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[11.2010 - 05.2014] NSP120..6F |
04427-52890 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04427-52897 BOOT KIT FR DRIVE[11.2010 - 05.2014] NSP120..6F |
04427-52897 |
from US $102.80 |
||
|
04438F
|
04438F
04427-52891
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[08.2014 - 04.2015] NSP120..6F |
04427-52891 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04427-52897 BOOT KIT FR DRIVE[08.2014 - 04.2015] NSP120..6F |
04427-52897 |
from US $102.80 |
||
|
04438G
|
04438G
04437-52191 Boot Kit, Front Drive Shaft Inboard Joint[11.2010 - 05.2014] NSP120 |
04437-52191 |
from US $75.70 |
||
|
41336D
|
41336D
41336-12010 Cover, Dust(For Differential Side Gear Shaft)[11.2010 - 05.2014] NSP120 |
41336-12010 |
from US $1.54 |
||
|
43030
|
43030
43403-10011
Joint Assy, Front Drive Inboard
[11.2010 - 05.2014] NSP120 |
43403-10011 |
— | ||
| replacement | |||||
|
43030
|
43030
43403-0W031 JOINT SET, FR AXLE[11.2010 - 05.2014] NSP120 |
43403-0W031 |
US $283.92 |
||
|
43410
|
43410
43410-52290 Shaft Assy, Front Drive, RhFRONT DRIVE, RH [11.2010 - 05.2014] NSP120..6F |
43410-52290 |
US $773.14 |
||
|
43410M
|
43410M
90311-34041
Oil Seal, Front Drive Shaft, Rh
[11.2010 - 05.2014] NSP120..6F |
90311-34041 |
— | ||
| replacement | |||||
|
43410M
|
43410M
90311-34054 SEAL, TYPE T OIL[11.2010 - 05.2014] NSP120..6F |
90311-34054 |
US $5.60 |
||
|
43410N
|
43410N
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[11.2010 - 05.2014] NSP120 |
90521-26004 |
from US $1.60 |
||
|
43411E
|
43411E
90520-22001 Ring, Shaft Snap (For Front Drive Inner Shaft Inner)[11.2010 - 05.2014] NSP120 |
90520-22001 |
US $1.02 |
||
|
43447C
|
43447C
42345-52260 Clamp (For Front Axle Outboard Joint Boot Rh)[11.2010 - 05.2014] NSP120 |
42345-52260 |
US $3.52 |
||
|
43447D
|
43447D
42345-52250 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[11.2010 - 05.2014] NSP120 |
42345-52250 |
US $5.28 |
||
|
43448C
|
43448C
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[11.2010 - 05.2014] NSP120 |
90949-01078 |
US $0.61 |
||
|
43448E
|
43448E
90949-01146 Clamp, No.2 (For Front Axle Inboard Joint Boot Setting)[11.2010 - 05.2014] NSP120 |
90949-01146 |
US $4.54 |
||
|
43460
|
43460
43460-59416 Shaft Assy, Front Drive Outboard Joint, RhFRONT DRIVE OUTBOARD JOINT, RH [11.2010 - 05.2014] NSP120..6F |
43460-59416 |
US $521.25 |
||
| replacement | |||||
|
43460
|
43460
43460-59666 Shaft Assy, Front Drive Outboard Joint, RhFRONT DRIVE OUTBOARD JOINT, RH [11.2010 - 05.2014] NSP120..6F |
43460-59666 |
US $509.60 |
||
|
43460
|
43460
43460-59666 Shaft Assy, Front Drive Outboard Joint, RhFRONT DRIVE OUTBOARD JOINT, RH [08.2014 - 04.2015] NSP120..6F |
43460-59666 |
US $509.60 |
||
|
43474D
|
43474D
43474-52090 Damper, Front Drive Shaft, RhFRONT DRIVE SHAFT, RH [11.2010 - 05.2014] NSP120 |
43474-52090 |
US $36.69 |
||
| replacement | |||||
|
43474D
|
43474D
43474-52110 Damper, Front Drive Shaft, Rh[11.2010 - 05.2014] NSP120 |
43474-52110 |
US $20.38 |
||
|
43474D
|
43474D
43474-52110 Damper, Front Drive Shaft, Rh[11.2014 - 04.2015] NSP120 |
43474-52110 |
US $20.38 |
||
|
43474F
|
43474F
42345-14010 Clamp, Rear Drive Shaft Boot[11.2010 - 05.2014] NSP120 |
42345-14010 |
US $11.20 |
||
