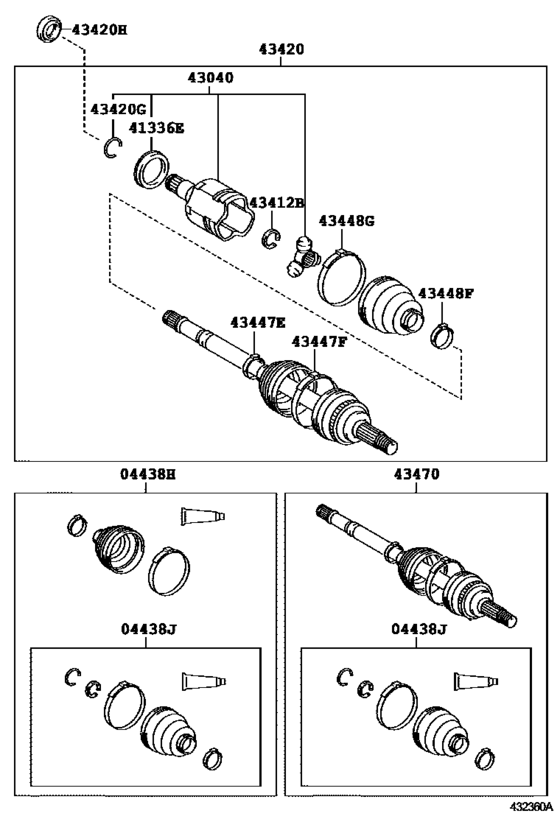

Front Drive Shaft ([11.2010 - ] LH (1011- )NSP120) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04427-52890
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[11.2010 - 05.2014] NSP120 |
04427-52890 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04427-52897 BOOT KIT FR DRIVE[11.2010 - 05.2014] NSP120 |
04427-52897 |
from US $102.80 |
||
|
04438J
|
04438J
04437-52191 Boot Kit, Front Drive Shaft Inboard Joint[11.2010 - 05.2014] NSP120 |
04437-52191 |
from US $75.70 |
||
|
41336E
|
41336E
41336-12010 Cover, Dust(For Differential Side Gear Shaft)[11.2010 - 05.2014] NSP120 |
41336-12010 |
from US $1.54 |
||
|
43040
|
43040
43403-10011
Joint Assy, Front Drive Inboard
[11.2010 - 05.2014] NSP120 |
43403-10011 |
— | ||
| replacement | |||||
|
43040
|
43040
43403-0W031 JOINT SET, FR AXLE[11.2010 - 05.2014] NSP120 |
43403-0W031 |
US $283.92 |
||
|
43412B
|
43412B
90520-22001 Ring, Shaft Snap (For Front Drive Inner Shaft Inner)[11.2010 - 05.2014] NSP120 |
90520-22001 |
US $1.02 |
||
|
43420
|
43420
43420-52210 Shaft Assy, Front Drive, Lh[11.2010 - 05.2014] NSP120..6F |
43420-52210 |
US $636.27 |
||
|
43420G
|
43420G
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[11.2010 - 05.2014] NSP120 |
90521-26004 |
from US $1.60 |
||
|
43420H
|
43420H
90311-34034
Oil Seal, Front Drive Shaft, Lh
[11.2010 - 12.2010] NSP120..6F |
90311-34034 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-34042 Oil Seal, Front Drive Shaft, Lh[11.2010 - 12.2010] NSP120..6F |
90311-34042 |
from US $7.52 |
||
|
43420H
|
43420H
90311-34042 Oil Seal, Front Drive Shaft, Lh[12.2010 - 05.2014] NSP120..6F |
90311-34042 |
from US $7.52 |
||
|
43447E
|
43447E
42345-52260 Clamp (For Front Axle Outboard Joint Boot Rh)[11.2010 - 05.2014] NSP120 |
42345-52260 |
US $3.52 |
||
|
43447F
|
43447F
42345-52250 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[11.2010 - 05.2014] NSP120 |
42345-52250 |
US $5.28 |
||
|
43448F
|
43448F
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[11.2010 - 05.2014] NSP120 |
90949-01078 |
US $0.61 |
||
|
43448G
|
43448G
90949-01146 Clamp, No.2 (For Front Axle Inboard Joint Boot Setting)[11.2010 - 05.2014] NSP120 |
90949-01146 |
US $4.54 |
||
|
43470
|
43470
43470-59696 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [11.2010 - 05.2014] NSP120..6F |
43470-59696 |
US $583.86 |
||
