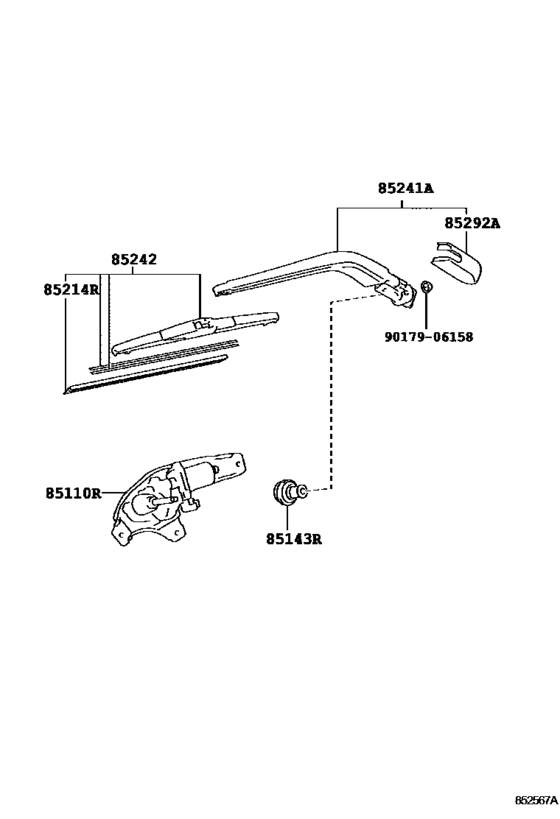

Rear Wiper ([11.2010 - ] (1011- )) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110R
|
85110R
85130-52210 Motor Assy, Rear Wiper[11.2010 - 05.2014] NLP121,NSP120 |
85130-52210 |
US $205.30 |
||
|
85143R
|
85143R
85143-52040
Grommet, Rear Wiper Motor
[11.2010 - 05.2014] NLP121,NSP120 |
85143-52040 |
— | ||
|
85214R
|
85214R
85214-42040 Rubber, Rear Wiper[11.2010 - 05.2014] NLP121,NSP120 |
85214-42040 |
from US $6.94 |
||
|
85241A
|
85241A
85241-52170 Arm, Rear Wiper[11.2010 - 05.2014] NLP121,NSP120 |
85241-52170 |
US $24.02 |
||
|
85242
|
85242
85242-42030 Blade Assy, Rear Wiper[11.2010 - 05.2014] NLP121,NSP120 |
85242-42030 |
from US $18.54 |
||
|
85292A
|
85292A
85292-42010 Cover, Rear Wiper Arm[11.2010 - 05.2014] NLP121,NSP120 |
85292-42010 |
from US $5.73 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
