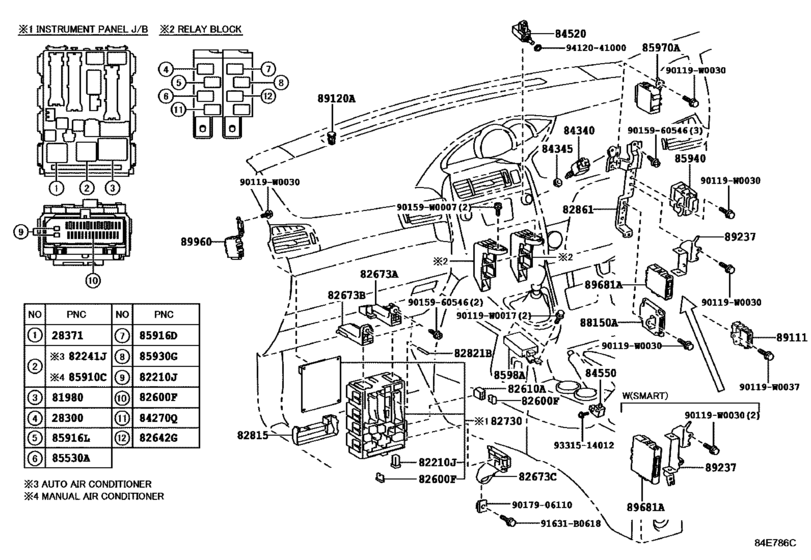

Switch & Relay & Computer ([01.2014 - ] COWL (1401- )WAR20..RHD) Diagram Toyota VERSO
- Year
- 2014 - 2018
- Sales region
- Europe
- Frame
- WAR20
- grade
- E
- ENGINE
- 1WW
- TRANSMISSION
- MTM
- Model
- VERSO
- From
- 01.2014
- Gear Shift Type
- 6F
- Seating Capacity
- 05S
- Vehicle Model
- VERSO
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8598A
|
8598A
8598A-0F010
Battery, Door Control
[01.2016 -] WAR20,ZGR2# |
8598A-0F010 |
— | ||
|
28300
|
28300
28300-21020 Relay Assy, Starter[07.2014 - 03.2015] 1ADFTV,2ADFHV,1WW,1ZRFAE,2ZRFAE..AUR2#,WAR20,ZGR2# |
28300-21020 |
from US $40.58 |
||
|
28300
|
28300
28300-28010
Relay Assy, Starter
[11.2012 - 06.2014] 1ADFTV,2ADFHV,1WW,1ZRFAE,2ZRFAE..AUR2#,WAR20,ZGR2# |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[11.2012 - 06.2014] 1ADFTV,2ADFHV,1WW,1ZRFAE,2ZRFAE..AUR2#,WAR20,ZGR2# |
28300-21020 |
from US $40.58 |
||
|
28371
|
28371
90987-W2001 Relay, Ignition, No.1[11.2012 - 03.2015] 1ADFTV,2ADFHV,1WW,1ZRFAE,2ZRFAE..AUR2#,WAR20,ZGR2# |
90987-W2001 |
US $39.46 |
||
|
81980
|
81980
81980-0D040 Flasher Assy, Turn SignalTURN SIGNAL [11.2012 - 03.2015] AUR2#,WAR20,ZGR2# |
81980-0D040 |
US $62.90 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[03.2015 - 01.2016] WAR20,ZGR2#..LHD..E 30A,TERMINAL:FEMALE,COLD AREA SPEC&HEADLAMP-DISCHARGE & *DRL(LED)&HEADLAMP CLEANER -WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; WAR20,ZGR2#..LHD..E 30A,TERMINAL:FEMALE,COLD AREA SPEC&HEADLAMP-DISCHARGE & *DRL(LED)&HEADL |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[03.2015 -] WAR20,ZGR2# 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82241J
|
82241J
82241-42010 Pin, Short[11.2012 - 03.2015] AUR2#,WAR20,ZGR2#..RHD..E; AUR2#,ZGR2#..LHD..(6F,6FC)..E PACKAGE OPTION 1-HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DR IVER & PASSEN |
82241-42010 |
US $4.80 |
||
|
82600F
|
82600F
90080-82050
Instrument Panel Fuse
[03.2015 - 01.2016] WAR20,ZGR2#..LHD..E 7.5A,MINI FUSE,COLD AREA SPEC&HEADLAMP-DISCHARGE & *DRL(LED)&HEADLAMP CLEANER-WITH &DAYTIME RUNNING LIGHT SYSTEM-WITH; WAR20,ZGR2#..LHD..E 7.5A,MINI FUSE,COLD AREA SPEC&HEADLAMP-DISCHARGE & *DRL(LED)&HEADLAMP CLEANE |
90080-82050 |
— | ||
|
82600F
|
82600F
90080-82051 Instrument Panel Fuse[03.2015 - 01.2016] WAR20,ZGR2#..LHD..E 10A,MINI FUSE,COLD AREA SPEC&HEADLAMP-DISCHARGE & *DRL(LED)&HEADLAMP CLEANER-WITH& DAYTIME RUNNING LIGHT SYSTEM-WITH; WAR20,ZGR2#..LHD..E 10A,MINI FUSE,COLD AREA SPEC&HEADLAMP-DISCHARGE & *DRL(LED)&HEADLAMP CLEANER- |
90080-82051 |
US $1.46 |
||
|
82600F
|
82600F
90080-82052
Instrument Panel Fuse
[11.2012 - 03.2015] AUR2#,WAR20,ZGR2# 15A,MINI FUSE |
90080-82052 |
— | ||
|
82600F
|
82600F
90080-82053
Instrument Panel Fuse
[11.2012 - 03.2015] AUR2#,WAR20,ZGR2# 20A,MINI FUSE |
90080-82053 |
— | ||
|
82600F
|
82600F
90080-82054 Instrument Panel Fuse[11.2012 - 03.2015] AUR2#,WAR20,ZGR2# 30A,MINI FUSE |
90080-82054 |
US $1.60 |
||
|
82600F
|
82600F
90080-82055
Instrument Panel Fuse
[11.2012 - 03.2015] AUR2#,WAR20,ZGR2# 25A,MINI FUSE |
90080-82055 |
— | ||
|
82610A
|
82610A
82610-52010 Block Assy, Fuse[11.2012 - 03.2015] WAR20;AUR21..6FC;ZGR21..LHD..CVT;AUR20,ZGR2#..RHD;AUR20,ZGR20..LHD..ENTRY |
82610-52010 |
US $3.06 |
||
|
82642G
|
82642G
90080-87021
Relay, Lamp Cut
[11.2012 - 03.2015] AUR2#,WAR20,ZGR2#..LHD..E PACKAGE OPTION 1-HIGH PACKAGE&HEADLAMP-DISCHARGE & *DRL(LED)&LIGHT CONTROL SYSTEM- WITH(AUTO)&DAYTIME RUNNING LIGHT SYSTEM-WITH; AUR2#,WAR20,ZGR2#..E HEADLAMP-HALOGEN & *DRL(BULB)&DAYTIME RUNNING LIGHT SYSTEM- |
90080-87021 |
— | ||
|
82673A
|
82673A
82673-12200 Bracket, Junction Block[11.2012 - 03.2015] AUR2#,WAR20,ZGR2#..RHD |
82673-12200 |
US $11.07 |
||
|
82673B
|
82673B
82673-12210 Bracket, Junction Block[11.2012 - 03.2015] AUR2#,WAR20,ZGR2#..RHD |
82673-12210 |
US $9.90 |
||
|
82673C
|
82673C
82673-12220 Bracket, Junction Block[11.2012 - 03.2015] AUR2#,WAR20,ZGR2#..RHD |
82673-12220 |
US $8.74 |
||
|
82730
|
82730
82730-0F770
Block Assy, Instrument Panel Junction
[01.2014 - 03.2015] WAR20..RHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
82730-0F770 |
— | ||
|
82730
|
82730
82730-0F780
Block Assy, Instrument Panel Junction
[01.2014 - 03.2015] WAR20..RHD |
82730-0F780 |
— | ||
|
82730
|
82730
82730-0F790
Block Assy, Instrument Panel Junction
[01.2014 - 03.2015] WAR20..RHD..E PACKAGE OPTION 1-HIGH PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH |
82730-0F790 |
— | ||
|
82730
|
82730
82730-0F800
Block Assy, Instrument Panel Junction
[01.2014 - 03.2015] WAR20..RHD..E PACKAGE OPTION 1-HIGH PACKAGE |
82730-0F800 |
— | ||
|
82730
|
82730
82730-0F810
Block Assy, Instrument Panel Junction
[01.2014 - 03.2015] WAR20..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
82730-0F810 |
— | ||
|
82730
|
82730
82730-0F820
Block Assy, Instrument Panel Junction
[01.2014 - 03.2015] WAR20..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL) |
82730-0F820 |
— | ||
|
82730
|
82730
82730-0F830
Block Assy, Instrument Panel Junction
[01.2014 - 03.2015] WAR20..RHD..E PACKAGE OPTION 1-HIGH PACKAGE&POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&DAYTI ME RUNNING LIGHT SYSTEM-WITH |
82730-0F830 |
— | ||
|
82730
|
82730
82730-0F840
Block Assy, Instrument Panel Junction
[01.2014 - 03.2015] WAR20..RHD..E PACKAGE OPTION 1-HIGH PACKAGE&POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL) |
82730-0F840 |
— | ||
|
82730
|
82730
82730-0FC10
Block Assy, Instrument Panel Junction
[01.2016 -] WAR20..RHD..ENTRY LIGHT CONTROL SYSTEM-WITH AUTO CUT(W/O *ALC); WAR20..RHD..E LIGHT CONTROL SYSTEM-WITH AUTO CUT(W/O *ALC)&INSIDE REAR VIEW MIRROR-DAY/NIGHT&AI R CONDITIONER-WITHOUT |
82730-0FC10 |
— | ||
|
82730
|
82730
82730-0FC30
Block Assy, Instrument Panel Junction
[01.2016 -] WAR20..RHD..ENTRY POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&LIGHT CONTROL SYSTEM-WITH AUTO CUT( W/O *ALC); WAR20..RHD..E POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&LIGHT CONTROL SYSTEM-WITH AUTO CUT( W/O *ALC)&INSIDE REAR VIEW MIRROR |
82730-0FC30 |
— | ||
|
82730
|
82730
82730-0FC90
Block Assy, Instrument Panel Junction
[01.2016 -] WAR20..RHD..E W(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE, W/PRECRASH SYSTEM; WAR20..RHD..E W(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
82730-0FC90 |
— | ||
|
82730
|
82730
82730-0FD10
Block Assy, Instrument Panel Junction
[01.2016 -] WAR20..RHD..E W(SMART ENTRY)&POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&INSIDE REAR VIEW MI RROR-AUTOMATIC ANTI-GLARE; WAR20..RHD..E W(SMART ENTRY)&POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&INSIDE REAR VIEW MI RROR-AUTOMATIC ANTI-GL |
82730-0FD10 |
— | ||
|
82730
|
82730
82730-0FD30
Block Assy, Instrument Panel Junction
[01.2016 -] WAR20..RHD |
82730-0FD30 |
— | ||
|
82730
|
82730
82730-0FD50
Block Assy, Instrument Panel Junction
[01.2016 -] WAR20..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL) |
82730-0FD50 |
— | ||
|
82815
|
82815
82817-12B50 Protector, Wiring Harness[11.2012 - 03.2015] AUR2#,WAR20,ZGR2# |
82817-12B50 |
US $6.26 |
||
|
82821B
|
82821B
82821-52020 Cover, Connector[11.2012 - 03.2015] AUR2#,WAR20,ZGR2# |
82821-52020 |
from US $0.44 |
||
|
82861
|
82861
82861-12010 Bracket, Computer Integration, No.1[01.2014 - 03.2015] AUR2#,WAR20,ZGR2#..RHD |
82861-12010 |
US $19.51 |
||
|
84270Q
|
84270Q
90080-87021
Relay, Lamp Cut
[11.2012 - 03.2015] AUR2#,WAR20,ZGR2# |
90080-87021 |
— | ||
|
84340
|
84340
84340-09100
Switch Assy, Stop Lamp
[11.2012 - 03.2015] AUR2#,WAR20,ZGR2# |
84340-09100 |
— | ||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[11.2012 - 03.2015] AUR2#,WAR20,ZGR2# |
84345-51010 |
from US $3.49 |
||
|
84520
|
84520
84520-42010 Switch Assy, Clutch Start[11.2012 - 03.2015] AUR2#,WAR20,ZGR2#..6F |
84520-42010 |
from US $34.13 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[11.2012 - 03.2015] AUR2#,WAR20,ZGR2#..RHD |
84550-16060 |
from US $17.48 |
||
|
85530A
|
85530A
90080-87021
Relay, Lamp Cut
[11.2012 - 03.2015] AUR2#,WAR20,ZGR2# |
90080-87021 |
— | ||
|
85910C
|
85910C
90080-87031
Relay Assy (For Heater Blower Motor)
[11.2012 - 03.2015] AUR21,ZGR21..LHD;AUR20,WAR20,ZGR20..ENTRY;AUR20,WAR20,ZGR20..LHD..E; AUR20..LHD..E COLD AREA SPEC&ENGINE-1AD-FTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(O N BOARD DIAGNOSIS)&AIR CONDITIONER-AUTO AIR CONDITIONER; AUR20..LHD.. |
90080-87031 |
— | ||
|
85916D
|
85916D
90080-87021
Relay, Lamp Cut
[11.2012 - 03.2015] AUR2#,WAR20,ZGR2# |
90080-87021 |
— | ||
|
85916L
|
85916L
90080-87021
Relay, Lamp Cut
[11.2012 - 03.2015] AUR2#,WAR20,ZGR2# |
90080-87021 |
— | ||
|
85930G
|
85930G
90080-87021
Relay, Lamp Cut
[11.2012 - 03.2015] AUR2#,WAR20,ZGR2# |
90080-87021 |
— | ||
|
85940
|
85940
85940-0F020
Relay Assy, Windshield Wiper
[11.2012 - 03.2015] AUR2#,WAR20,ZGR2#..RHD..E PACKAGE OPTION 1-HIGH PACKAGE |
85940-0F020 |
— | ||
|
85970A
|
85970A
85970-64020
Relay Assy, Double Lock Door Control
[01.2014 - 03.2015] AUR2#,WAR20,ZGR2#..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL) |
85970-64020 |
— | ||
|
85970A
|
85970A
85970-64030
Relay Assy, Double Lock Door Control
[01.2016 -] WAR20,ZGR2#..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL) |
85970-64030 |
— | ||
|
88150A
|
88150A
88150-64020
Computer Assy, Driving Support
[01.2014 - 03.2015] WAR20..RHD..E CRUISE CONTROL-WITH |
88150-64020 |
— | ||
|
89111
|
89111
89100-64020
Computer, Network Gateway
[01.2016 -] WAR20,ZGR2#..RHD |
89100-64020 |
— | ||
|
89120A
|
89120A
89121-12010 Sensor, Automatic Light Control[01.2016 -] WAR20,ZGR2#; WAR20,ZGR2#..ENTRY PRE-COLLISION SYSTEM-WITHOUT; WAR20,ZGR2#..E PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN; WAR20,ZGR2#..E PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB); WAR20,ZGR2#..E PRE-COLLISION SYSTEM-WITHOUT& |
89121-12010 |
from US $129.25 |
||
|
89237
|
89237
896B7-0F020
Bracket, Computer Unit
[01.2014 - 03.2015] AUR2#,WAR20,ZGR2#..RHD |
896B7-0F020 |
— | ||
|
89237
|
89237
896B7-0F040
Bracket, Computer Unit
[01.2014 - 03.2015] WAR20..RHD..E PACKAGE OPTION 1-HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART EN TRY) |
896B7-0F040 |
— | ||
|
89681A
|
89681A
89681-0F030
Computer, Power Management Control
[01.2014 - 03.2015] WAR20 |
89681-0F030 |
— | ||
|
89681A
|
89681A
89681-0F040
Computer, Power Management Control
[01.2014 - 03.2015] WAR20..RHD..E PACKAGE OPTION 1-HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART EN TRY); WAR20..LHD..E CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH (AUTO) |
89681-0F040 |
— | ||
|
89681A
|
89681A
89681-0F080
Computer, Power Management Control
[03.2015 -] WAR20..E WIRELESS DOOR LOCK-W(SMART ENTRY) |
89681-0F080 |
— | ||
|
89960
|
89960
89960-64060
Computer Assy, Headlamp Leveling
[11.2012 - 03.2015] AUR2#,WAR20,ZGR2#..E HEADLAMP-DISCHARGE & *DRL(LED) |
89960-64060 |
— | ||
|
89960
|
89960
89960-64070
Computer Assy, Headlamp Leveling
[11.2012 - 03.2015] AUR2#,WAR20,ZGR2#..E 7SEATS PACKAGE&HEADLAMP-DISCHARGE & *DRL(LED) |
89960-64070 |
— | ||
|
90119W0017
|
90119W0017
90119-W0017
New Genuine Part
|
90119-W0017 |
— | ||
| replacement | |||||
|
90119W0017
|
90119W0017
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
90119W0030
|
90119W0030
90119-W0030
New Genuine Part
|
90119-W0030 |
— | ||
|
90119W0037
|
90119W0037
90119-W0037
Bolt, W/washer
|
90119-W0037 |
— | ||
|
90159W0007
|
90159W0007
90159-W0007
SCREW WWASHER TAPP
|
90159-W0007 |
— | ||
|
91631B0618
|
91631B0618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.82 |
||
|
9015960546
|
9015960546
90159-60546 New Genuine Part |
90159-60546 |
US $0.96 |
||
|
9017906110
|
9017906110
90179-06110 New Genuine Part |
90179-06110 |
US $1.44 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.80 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.78 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
