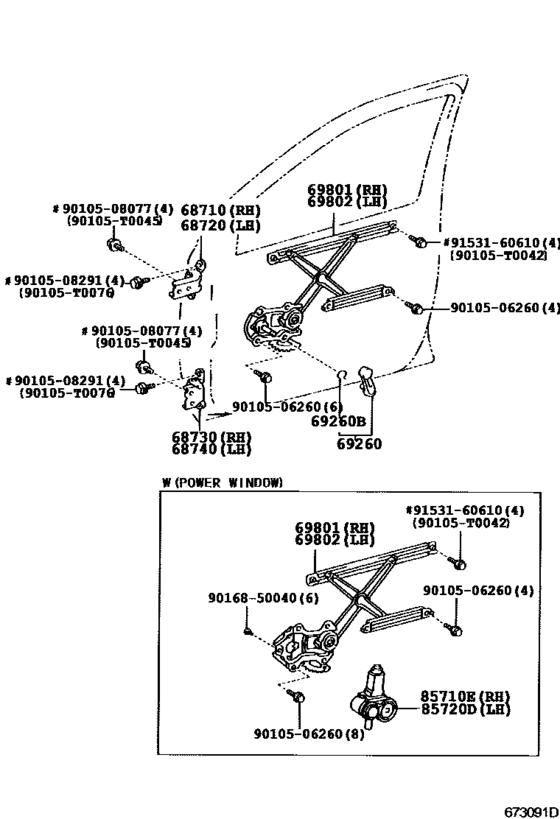

Front Door Window Regulator & Hinge ([12.2002 - ] (0212- )NCP4#) Diagram Toyota VIOS
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- NCP42
- grade
- 15E
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- MA
- Model
- SOLUNA VIOS
- From
- 05.2003
- To
- 08.2007
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-0D030
Hinge Assy, Front Door, Upper Rh
[12.2002 - 03.2006] NCP4# |
68710-0D030 |
— | ||
|
68720
|
68720
68720-0D030
Hinge Assy, Front Door, Upper Lh
[12.2002 - 03.2006] NCP4# |
68720-0D030 |
— | ||
|
68730
|
68730
68730-52010 Hinge Assy, Front Door, Lower Rh[12.2002 - 03.2006] NCP4# |
68730-52010 |
from US $31.16 |
||
|
68740
|
68740
68740-52010 Hinge Assy, Front Door, Lower Lh[12.2002 - 03.2006] NCP4# |
68740-52010 |
from US $28.72 |
||
|
69801
|
69801
69801-52090 Regulator Sub-Assy, Front Door Window, RhFRONT DOOR WINDOW, RH [05.2003 - 03.2006] NCP42..MA,VN W(POWER WINDOW) |
69801-52090 |
US $84.45 |
||
|
69802
|
69802
69802-0D080
Regulator Sub-Assy, Front Door Window, Lh
[05.2003 - 12.2005] NCP42..MA W(POWER WINDOW) |
69802-0D080 |
— | ||
|
85710E
|
85710E
85710-52100
Motor Assy, Power Window Regulator, Rh
[05.2003 - 12.2005] NCP42..MA |
85710-52100 |
— | ||
| replacement | |||||
|
85710E
|
85710E
85710-52101
Motor Assy, Power Window Regulator, Rh
[05.2003 - 12.2005] NCP42..MA |
85710-52101 |
— | ||
|
85710E
|
85710E
85710-52101
Motor Assy, Power Window Regulator, Rh
[03.2006 - 08.2007] NCP42..MA |
85710-52101 |
— | ||
|
85720D
|
85720D
85720-0D080
Motor Assy, Power Window Regulator, Lh
[05.2003 - 12.2005] NCP42..MA |
85720-0D080 |
— | ||
|
90105T0042
|
90105T0042
90105-T0042
New Genuine Part
|
90105-T0042 |
— | ||
| replacement | |||||
|
90105T0042
|
90105T0042
90105-T0069
New Genuine Part
|
90105-T0069 |
— | ||
|
90105T0045
|
90105T0045
90105-T0045
New Genuine Part
|
90105-T0045 |
— | ||
|
90105T0076
|
90105T0076
90105-T0076
BOLT FLANGE
|
90105-T0076 |
— | ||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010508077
|
9010508077
90105-08077 BOLT |
90105-08077 |
US $1.76 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $0.92 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
US $1.12 |
||
|
9153160610
|
9153160610
91531-60610 New Genuine Part |
91531-60610 |
US $1.76 |
||
