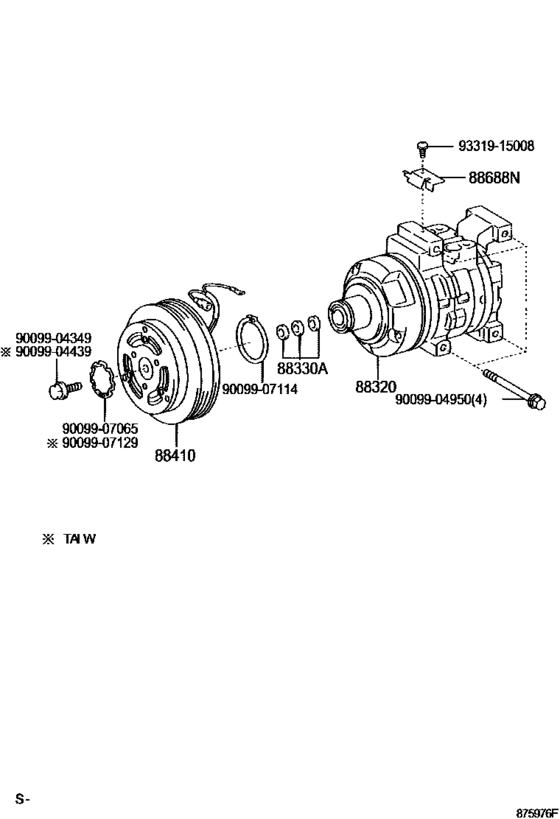

Heating & Air Conditioning - Compressor ([12.2002 - ] (0212- )NCP4#) Diagram Toyota VIOS
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- NCP42
- grade
- 15E
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- MA
- Model
- SOLUNA VIOS
- From
- 05.2003
- To
- 08.2007
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-0D020
Compressor Assy, Cooler
[12.2002 - 03.2006] NCP4#..MA,PHL,TH,VN |
88320-0D020 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[12.2002 - 03.2006] NCP4# |
88335-14020 |
from US $1.25 |
||
|
88410
|
88410
88410-0D070
Clutch Assy, Magnet
[12.2002 - 03.2006] NCP4#..MA,PHL,TH |
88410-0D070 |
— | ||
| replacement | |||||
|
88410
|
88410
88410-0D180
Clutch Assy, Magnet
[12.2002 - 03.2006] NCP4#..MA,PHL,TH |
88410-0D180 |
— | ||
|
88688N
|
88688N
88688-25200
Bracket, Cooler
[12.2002 - 03.2006] NCP42..MA,TAIW,TH,VN |
88688-25200 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904439
|
9009904439
90099-04439
New Genuine Part
|
90099-04439 |
— | ||
|
9009904950
|
9009904950
90099-04950 BOLT |
90099-04950 |
from US $1.89 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.21 |
||
|
9009907129
|
9009907129
90099-07129
New Genuine Part
|
90099-07129 |
— | ||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
