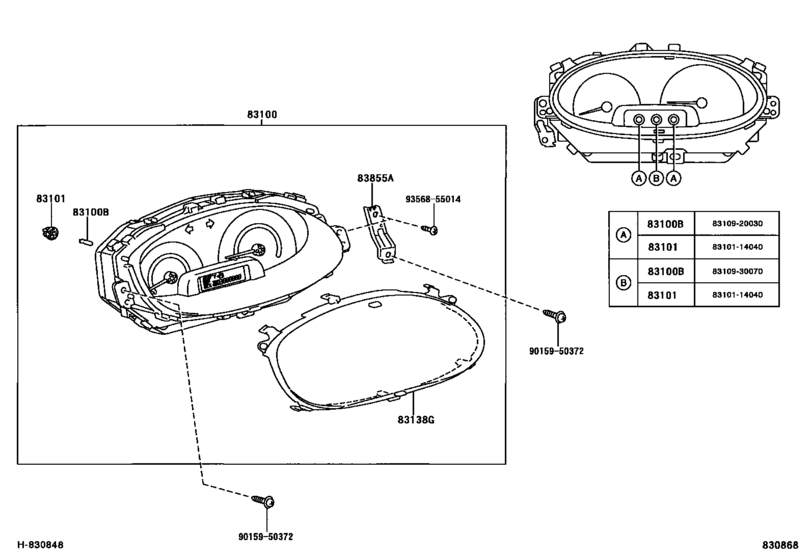

Meter ([12.2002 - ] ANALOG METER (0212- )RHD) Diagram Toyota VIOS
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- NCP42
- grade
- 15E
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- MA
- Model
- SOLUNA VIOS
- From
- 05.2003
- To
- 08.2007
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-0D850
Meter Assy, Combination
[05.2003 - 12.2005] NCP42..15E..MA |
83800-0D850 |
— | ||
|
83100
|
83100
83800-0DA50
Meter Assy, Combination
[12.2005 - 08.2007] NCP42..15E..MA |
83800-0DA50 |
— | ||
|
83100B
|
83100B
83109-20030
Bulb, Combination Meter, No.1
[12.2002 - 12.2005] NCP42..MA 12V 1.4W,BLUE CAP,TYPE A:REFER ILLUST. |
83109-20030 |
— | ||
|
83100B
|
83100B
83109-30070 Bulb, Combination Meter, No.1[12.2002 - 12.2005] NCP42..MA 14V 2.0W,W/O SOCKET,TYPE B:REFER ILLUST. |
83109-30070 |
US $2.45 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[12.2002 - 12.2005] NCP42..MA |
83101-14040 |
US $2.98 |
||
|
83138G
|
83138G
83852-0D080
Glass, Combination Meter
[12.2002 - 12.2005] NCP42..MA |
83852-0D080 |
— | ||
|
83855A
|
83855A
83855-0D260
Bracket, Combination Meter, No.1
[12.2002 - 12.2005] NCP42..MA |
83855-0D260 |
— | ||
|
9015950372
|
9015950372
90159-50372 Screw |
90159-50372 |
US $0.96 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
