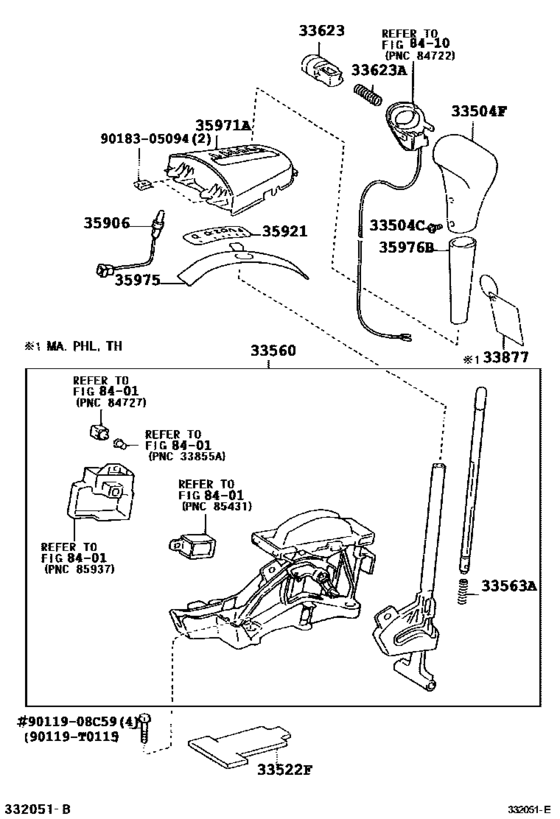

Shift Lever & Retainer ([12.2002 - ] (0212- )NCP42..ATM) Diagram Toyota VIOS
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- NCP42
- grade
- 15E
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- MA
- Model
- SOLUNA VIOS
- From
- 05.2003
- To
- 08.2007
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504C
|
33504C
90159-40221 Screw (For Shift Lever Knob Setting)[12.2002 - 12.2005] NCP42..ATM |
90159-40221 |
from US $1.05 |
||
|
33504F
|
33504F
33542-0D010-B0
Knob Sub-Assy, Shift Lever
[12.2002 - 12.2005] NCP42..RHD..ATM DK.GRAY,TRIM1# |
33542-0D010-B0 |
— | ||
|
33504F
|
33504F
33542-0D010-E0
Knob Sub-Assy, Shift Lever
[10.2005 - 08.2007] NCP42..RHD..ATM..(15E,15S) SANDAL WOOD,TRIM0# |
33542-0D010-E0 |
— | ||
|
33522F
|
33522F
33522-52010 Seat, Shift Lever Plate (For Floor Shift)SHIFT LEVER PLATE (FOR FLOOR SHIFT) [12.2002 - 12.2005] NCP42..ATM |
33522-52010 |
US $4.80 |
||
|
33560
|
33560
33560-0D010
Unit Assy, Shift Lock Control
[12.2002 - 12.2005] NCP42..RHD..ATM |
33560-0D010 |
— | ||
|
33563A
|
33563A
90080-50356
Spring, Compression (For Shift Lock Release Button)
[12.2002 - 12.2005] NCP42..ATM |
90080-50356 |
— | ||
|
33623
|
33623
33623-0D010-B0
Button, Shift Lever Knob
[12.2002 - 12.2005] NCP42..RHD..ATM..(15E,15J) DK.GRAY,TRIM1# |
33623-0D010-B0 |
— | ||
|
33623
|
33623
33623-0D030-E0
Button, Shift Lever Knob
[10.2005 - 08.2007] NCP42..RHD..ATM..(15E,15S) SANDAL WOOD,TRIM0# |
33623-0D030-E0 |
— | ||
|
33623A
|
33623A
90080-50355
Spring, Compression (For Shift Lever Knob Button)
[12.2002 - 12.2005] NCP42..ATM |
90080-50355 |
— | ||
|
33877
|
33877
33877-02010
Label, Shift Lock Information, No.1
[12.2002 - 12.2005] NCP42..ATM..(MA,PHL,TH) |
33877-02010 |
— | ||
|
35906
|
35906
35906-0D010
Wire Sub-Assy, Indicator Lamp
[12.2002 - 12.2005] NCP42..RHD..ATM |
35906-0D010 |
— | ||
|
35921
|
35921
35921-0D010
Plate, Control Position Indicator
[12.2002 - 12.2005] NCP42..RHD..ATM |
35921-0D010 |
— | ||
|
35971A
|
35971A
35971-0D010
Housing, Position Indicator, Upper
[12.2002 - 12.2005] NCP42..RHD..ATM..(15E,15J) |
35971-0D010 |
— | ||
|
35971A
|
35971A
35971-0D060
Housing, Position Indicator, Upper
[10.2005 - 08.2007] NCP42..RHD..ATM..(15E,15S) WOOD GRAIN |
35971-0D060 |
— | ||
|
35975
|
35975
35975-0D010
Cover, Slide (For Position Indicator)
[12.2002 - 12.2005] NCP42..RHD..ATM |
35975-0D010 |
— | ||
|
35976B
|
35976B
35976-0D010-B0
Cover, Shift Lever Knob (For Floor Shift)
[12.2002 - 12.2005] NCP42..RHD..ATM..(15E,15J) DK.GRAY,TRIM1# |
35976-0D010-B0 |
— | ||
|
35976B
|
35976B
35976-0D030
Cover, Shift Lever Knob (For Floor Shift)
[10.2005 - 08.2007] NCP42..RHD..ATM..(15E,15G,15S) CHROME PLATED |
35976-0D030 |
— | ||
|
90119T0115
|
90119T0115
90119-T0115
New Genuine Part
|
90119-T0115 |
— | ||
|
9011908C59
|
9011908C59
90119-08C59 New Genuine Part |
90119-08C59 |
US $1.28 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
