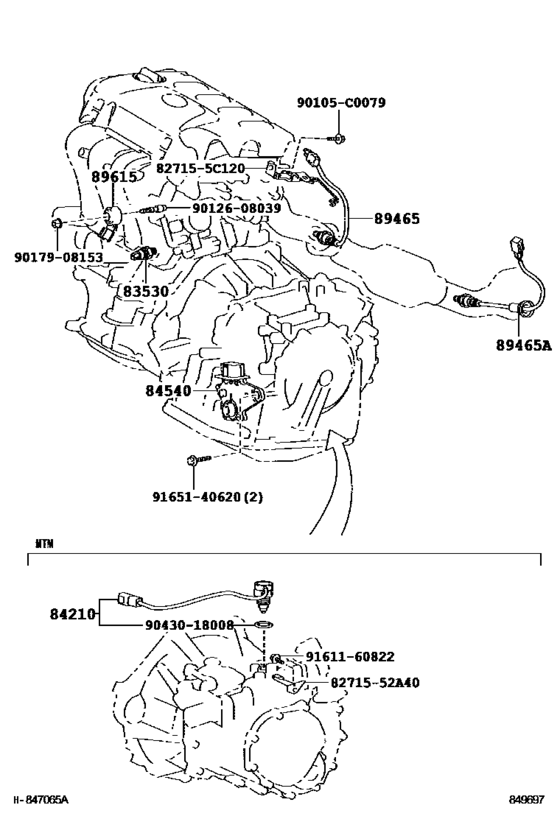

Switch & Relay & Computer ([02.2008 - ] ENGINE & TRANSMISSION (0802- )NCP92) Diagram Toyota VIOS
- Year
- 2008 - 2013
- Sales region
- General
- Frame
- NCP92
- grade
- GLI
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- Model
- VIOS (CHINA)
- From
- 02.2008
- To
- 07.2013
- Gear Shift Type
- 4FC
- Vehicle Model
- VIOS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [02.2008 - 08.2010] NCP92,ZSP92 |
83530-60020 |
from US $25.43 |
||
|
84540
|
84540
84540-46010 Switch Assy, Neutral Start[02.2008 - 08.2010] NCP92..4FC |
84540-46010 |
from US $122.85 |
||
|
89465
|
89465
89465-52380 Sensor, OxygenOXYGEN NO.2 [02.2008 - 08.2010] NCP92 |
89465-52380 |
from US $128.76 |
||
|
89465
|
89465
89467-12210
Sensor, Oxygen
[08.2010 -] NCP92 EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(ON BOARD DIAGNOSIS) |
89467-12210 |
— | ||
|
89465A
|
89465A
89465-52370 Sensor, OxygenOXYGEN [02.2008 - 08.2010] NCP92 |
89465-52370 |
from US $151.20 |
||
|
89465A
|
89465A
89465-52480 Sensor, Oxygen[08.2010 -] NCP92 EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(ON BOARD DIAGNOSIS) |
89465-52480 |
US $149.76 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[02.2008 - 08.2010] NCP92,ZSP92 |
89615-20090 |
from US $36.02 |
||
|
90105C0079
|
90105C0079
90105-C0079
New Genuine Part
|
90105-C0079 |
— | ||
|
827155C120
|
827155C120
82715-5C120
Bracket,wiring Harness Clamp
|
82715-5C120 |
— | ||
|
8271552A40
|
8271552A40
82715-52A40
Bracket,wiring Harness Clamp
|
82715-52A40 |
— | ||
|
9012608039
|
9012608039
90126-08039 Bolt, Stud(For Oil Pan) |
90126-08039 |
US $3.84 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
