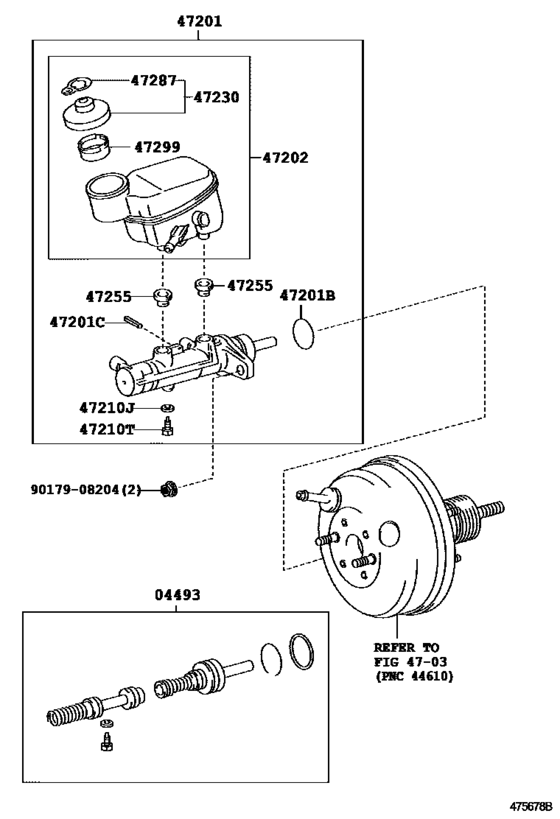

Brake Master Cylinder ([08.2007 - ] (0708- )LHD) Diagram Toyota VIOS
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- NCP93
- grade
- LIMO
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- VN
- Model
- LIMO
- From
- 09.2007
- To
- 01.2014
- Vehicle Model
- LIMO
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-52070 Cylinder Kit, Brake MasterBRAKE MASTER [08.2007 - 04.2010] NCP9#..LHD..(13E,13J,LIMO) |
04493-52070 |
US $76.75 |
||
|
47201
|
47201
47201-52330 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [08.2007 - 04.2010] NCP9#..LHD..(13E,13J,LIMO) |
47201-52330 |
from US $269.36 |
||
|
47201B
|
47201B
90029-20059 Ring, O(For Brake Master Cylinder)[08.2007 - 04.2010] NCP9#..LHD |
90029-20059 |
from US $3.20 |
||
|
47201C
|
47201C
90029-15804 Ring Pin, Brake Master Cylinder[08.2007 - 04.2010] NCP9#..LHD |
90029-15804 |
US $4.02 |
||
|
47202
|
47202
47220-52170 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [08.2007 - 04.2010] NCP9#..LHD..MTM |
47220-52170 |
US $88.82 |
||
|
47210J
|
47210J
90029-43001 Gasket(For Master Cylinder)[08.2007 - 04.2010] NCP9#..LHD |
90029-43001 |
US $1.40 |
||
|
47210T
|
47210T
90109-06077 Bolt(For Brake Master Cylinder)[08.2007 - 04.2010] NCP9#..LHD |
90109-06077 |
from US $2.56 |
||
|
47230
|
47230
47230-28240 Cap Assy, Brake Master Cylinder Reservoir Filler[08.2007 - 04.2010] NCP9#..LHD |
47230-28240 |
from US $8.23 |
||
|
47255
|
47255
31417-35010 Grommet[08.2007 - 04.2010] NCP9#..LHD |
31417-35010 |
from US $2.08 |
||
|
47287
|
47287
47287-20010 Label, Brake Fluid Information[02.2007 - 04.2010] NCP9#..MA,PH,VN |
47287-20010 |
US $2.08 |
||
|
47299
|
47299
47299-25010 Strainer, Master Cylinder Reservoir[08.2007 - 04.2010] NCP9#..LHD |
47299-25010 |
US $5.42 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
