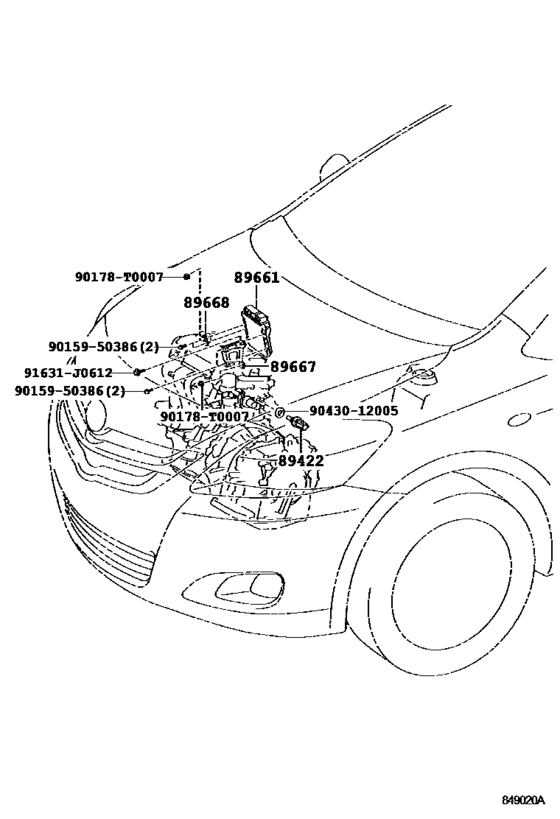

Electronic Fuel Injection System ([08.2007 - ] (0708- )LHD) Diagram Toyota VIOS
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- NCP93
- grade
- LIMO
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- VN
- Model
- LIMO
- From
- 09.2007
- To
- 01.2014
- Vehicle Model
- LIMO
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[02.2007 - 04.2010] NCP9#..MA,PH,VN |
89422-33030 |
from US $36.63 |
||
|
89661
|
89661
89661-0DA50
Computer, Engine Control
[02.2007 - 07.2008] NCP93..MTM |
89661-0DA50 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-0DA52
Computer, Engine Control
[02.2007 - 07.2008] NCP93..MTM |
89661-0DA52 |
— | ||
|
89661
|
89661
89661-0DA51
Computer, Engine Control
[08.2008 - 04.2010] NCP93..MTM..(MA,PH,VN) |
89661-0DA51 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-0DA52
Computer, Engine Control
[08.2008 - 04.2010] NCP93..MTM..(MA,PH,VN) |
89661-0DA52 |
— | ||
|
89661
|
89661
89661-0DA52
Computer, Engine Control
[12.2011 - 03.2014] NCP93..MTM |
89661-0DA52 |
— | ||
|
89667
|
89667
89667-52200
Bracket, Engine Control Computer
[08.2007 - 04.2010] NCP9#..LHD |
89667-52200 |
— | ||
|
89668
|
89668
89668-52220
Bracket, Engine Control Computer, No.2
[08.2007 - 04.2010] NCP9#..LHD |
89668-52220 |
— | ||
|
90178T0007
|
90178T0007
90178-T0007 NUT FLANGE |
90178-T0007 |
from US $0.20 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9015950386
|
9015950386
90159-50386 New Genuine Part |
90159-50386 |
US $0.96 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.90 |
||
