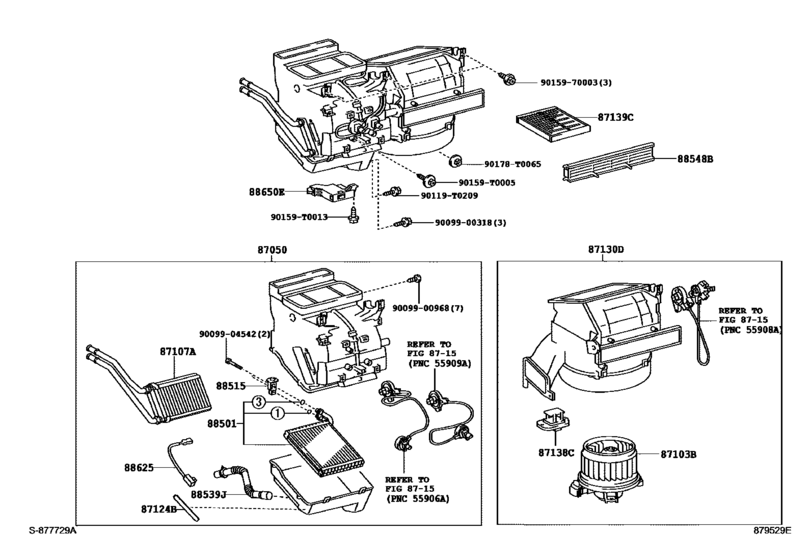

Heating & Air Conditioning - Cooler Unit ([09.2007 - ] MANUAL AIR CONDITIONER (0709- )VN) Diagram Toyota VIOS
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- NCP93
- grade
- LIMO
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- VN
- Model
- LIMO
- From
- 09.2007
- To
- 01.2014
- Vehicle Model
- LIMO
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-0D160
Radiator Assy, Air Conditioner
[09.2007 - 04.2010] NCP93..VN |
87050-0D160 |
— | ||
|
87103B
|
87103B
87103-0D160
Motor Sub-Assy, Blower W/fan
[08.2007 - 04.2010] NCP9#..LHD |
87103-0D160 |
— | ||
| replacement | |||||
|
87103B
|
87103B
87103-0D161
Motor Sub-Assy, Blower W/fan
[08.2007 - 04.2010] NCP9#..LHD |
87103-0D161 |
— | ||
|
87103B
|
87103B
87103-0D161
Motor Sub-Assy, Blower W/fan
[10.2010 - 03.2014] NCP9#..LHD |
87103-0D161 |
— | ||
|
87107A
|
87107A
87107-0D090
Unit Sub-Assy, Heater Radiator
[09.2007 - 04.2010] NCP93..VN |
87107-0D090 |
— | ||
|
87124B
|
87124B
87124-0D010
Clamp, Heater
[08.2007 - 04.2010] NCP9#..LHD |
87124-0D010 |
— | ||
|
87130D
|
87130D
87130-0D140
Blower Assy
[08.2007 - 04.2010] NCP9#..LHD |
87130-0D140 |
— | ||
|
87138C
|
87138C
87138-0D090
Resistor, Blower
[08.2007 - 04.2010] NCP9#..LHD |
87138-0D090 |
— | ||
|
87139C
|
87139C
87139-06080 Filter, Clean AirCLEAN AIR [04.2010 - 03.2014] NCP93..VN STANDARD |
87139-06080 |
US $50.10 |
||
|
87139C
|
87139C
87139-50100 Clean Air Filter (Charcoal type)[04.2010 - 03.2014] NCP93..VN *DPF |
87139-50100 |
from US $60.80 |
||
|
88501
|
88501
88501-0D140
Evaporator Sub-Assy, Cooler, No.1
[08.2007 - 04.2010] NCP9#..LHD |
88501-0D140 |
— | ||
|
88515
|
88515
88515-0D090
Valve, Cooler Expansion
[08.2007 - 04.2010] NCP9#..LHD |
88515-0D090 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-0K130
Valve, Cooler Expansion
[08.2007 - 04.2010] NCP9#..LHD |
88515-0K130 |
— | ||
|
88515
|
88515
88515-0D190
Valve, Cooler Expansion
[08.2011 - 03.2014] NCP92..MTM;NCP93..LHD |
88515-0D190 |
— | ||
|
88515
|
88515
88515-0K130
Valve, Cooler Expansion
[04.2010 - 07.2011] NCP92..MTM;NCP93..LHD |
88515-0K130 |
— | ||
|
88539J
|
88539J
88539-0D100
Hose, Drain Cooler
[08.2007 - 04.2010] NCP9#..LHD |
88539-0D100 |
— | ||
| replacement | |||||
|
88539J
|
88539J
88539-0D210
Hose, Drain Cooler
[08.2007 - 04.2010] NCP9#..LHD |
88539-0D210 |
— | ||
|
88539J
|
88539J
88539-0D210
Hose, Drain Cooler
[01.2011 - 03.2014] NCP9#..LHD |
88539-0D210 |
— | ||
|
88548B
|
88548B
88548-0D080
Case, Air Filter
[02.2007 - 04.2010] NCP9#..LHD |
88548-0D080 |
— | ||
|
88625
|
88625
88620-02110 Thermistor, Cooler, No.1COOLER, NO.1 [03.2010 - 03.2014] NCP9# |
88620-02110 |
US $10.20 |
||
|
88625
|
88625
88625-02110 Thermistor, Cooler, No.1COOLER, NO.1 [05.2008 - 04.2010] NCP9#..MA,PH,VN |
88625-02110 |
US $9.17 |
||
|
88625
|
88625
88625-26090 Thermistor, Cooler, No.1[02.2007 - 04.2008] NCP9# |
88625-26090 |
from US $8.04 |
||
| replacement | |||||
|
88625
|
88625
88620-02110 Thermistor, Cooler, No.1COOLER, NO.1 [02.2007 - 04.2008] NCP9# |
88620-02110 |
US $10.20 |
||
|
88650E
|
88650E
88650-0D230
Amplifier Assy, Air Conditioner, No.1
[09.2007 - 04.2010] NCP93..VN |
88650-0D230 |
— | ||
|
90119T0209
|
90119T0209
90119-T0209
BOLT WWASHER
|
90119-T0209 |
— | ||
|
90159T0005
|
90159T0005
90159-T0005 New Genuine Part |
90159-T0005 |
US $0.87 |
||
|
90159T0013
|
90159T0013
90159-T0013
New Genuine Part
|
90159-T0013 |
— | ||
|
90178T0065
|
90178T0065
90178-T0065
New Genuine Part
|
90178-T0065 |
— | ||
|
9009900318
|
9009900318
90099-00318
New Genuine Part
|
90099-00318 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.84 |
||
|
9009904542
|
9009904542
90099-04542 Bolt(For Cooler Expansion Valve) |
90099-04542 |
from US $1.92 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
