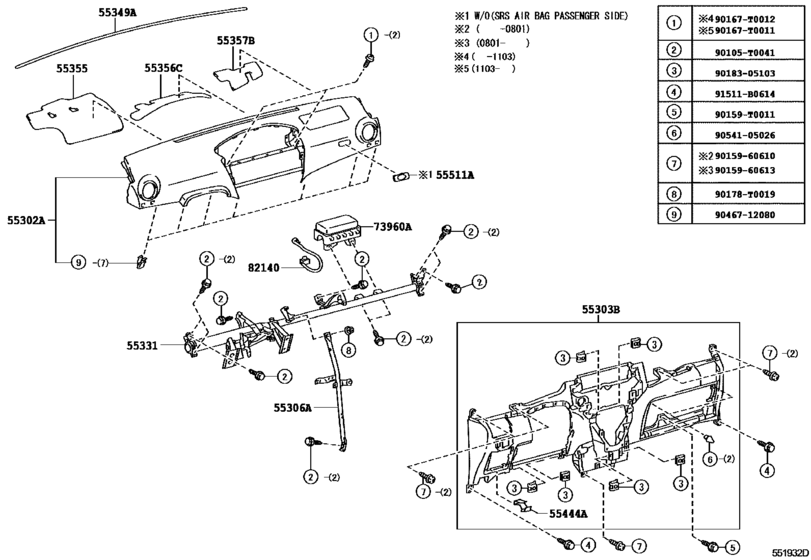

Instrument Panel & Glove Compartment ([08.2007 - ] (0708- )LHD) Diagram Toyota VIOS
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- NCP93
- grade
- LIMO
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- VN
- Model
- LIMO
- From
- 09.2007
- To
- 01.2014
- Vehicle Model
- LIMO
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55302A
|
55302A
55302-0D090-B0
Panel Sub-Assy, Instrument, Upper
[09.2012 - 03.2014] NCP9#..LHD..(13E,13J,LIMO) DK.GRAY,TRIM1# |
55302-0D090-B0 |
— | ||
|
55302A
|
55302A
55302-0D100-B0
Panel Sub-Assy, Instrument, Upper
[08.2007 - 04.2010] NCP9#..LHD..(13E,13J,LIMO) DK.GRAY,TRIM1# |
55302-0D100-B0 |
— | ||
|
55303B
|
55303B
55303-0D110-B0
Panel Sub-Assy, Instrument, Lower
[08.2007 - 04.2010] NCP9#..LHD..(13E,13J,15G,E,LIMO) DK.GRAY,TRIM1# |
55303-0D110-B0 |
— | ||
|
55303B
|
55303B
55303-0D110-E0
Panel Sub-Assy, Instrument, Lower
[09.2007 - 04.2010] NCP93..VN GREGE,TRIM4# |
55303-0D110-E0 |
— | ||
|
55306A
|
55306A
55306-52160 Brace Sub-Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [08.2007 - 04.2010] NCP9#..LHD |
55306-52160 |
US $20.82 |
||
|
55331
|
55331
55330-0D300
Reinforcement, Instrument Panel
[09.2012 - 03.2014] NCP9#..LHD..(13E,13J,LIMO) |
55330-0D300 |
— | ||
|
55331
|
55331
55330-0D310
Reinforcement, Instrument Panel
[08.2007 - 04.2010] NCP9#..LHD..(13E,13J,LIMO) |
55330-0D310 |
— | ||
|
55349A
|
55349A
55349-0D070
Cushion, Instrument Panel
[02.2007 - 04.2010] NCP9#..MA,PH,VN |
55349-0D070 |
— | ||
|
55444A
|
55444A
55444-52260 Spring, Instrument Panel Box[02.2007 - 04.2010] NCP9# |
55444-52260 |
US $2.27 |
||
|
55511A
|
55511A
55511-0D060-B0
Plate, Instrument Panel, Name
[05.2007 - 04.2010] NCP93..LIMO DK.GRAY,TRIM1# |
55511-0D060-B0 |
— | ||
| replacement | |||||
|
55511A
|
55511A
55511-0D050-B0
Plate, Instrument Panel, Name
[05.2007 - 04.2010] NCP93..LIMO DK.GRAY,TRIM1# |
55511-0D050-B0 |
— | ||
|
73960A
|
73960A
73960-0D050
Air Bag Assy, Instrument Panel Passenger W/o Door
[09.2012 - 03.2014] NCP93..MTM..15E;NCP9#..13E,13J,15J,LIMO; NCP93..LIMO SRS AIR BAG-WITHOUT |
73960-0D050 |
— | ||
|
82140
|
82140
82140-0D020
Wire, Instrument Panel, No.2
[09.2012 - 03.2014] NCP93..MTM..15E;NCP9#..13E,13J,15J,LIMO; NCP93..LIMO SRS AIR BAG-WITHOUT |
82140-0D020 |
— | ||
|
90105T0041
|
90105T0041
90105-T0041
New Genuine Part
|
90105-T0041 |
— | ||
|
90159T0011
|
90159T0011
90159-T0011
New Genuine Part
|
90159-T0011 |
— | ||
|
90167T0011
|
90167T0011
90167-T0011
New Genuine Part
|
90167-T0011 |
— | ||
|
90167T0012
|
90167T0012
90167-T0012
Direct
|
90167-T0012 |
— | ||
| replacement | |||||
|
90167T0012
|
90167T0012
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.82 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9015960610
|
9015960610
90159-60610 New Genuine Part |
90159-60610 |
US $0.73 |
||
|
9015960613
|
9015960613
90159-60613 New Genuine Part |
90159-60613 |
US $0.96 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.76 |
||
|
9054105026
|
9054105026
90541-05026 Cushion(For Glove Compartment) |
90541-05026 |
US $1.31 |
||
