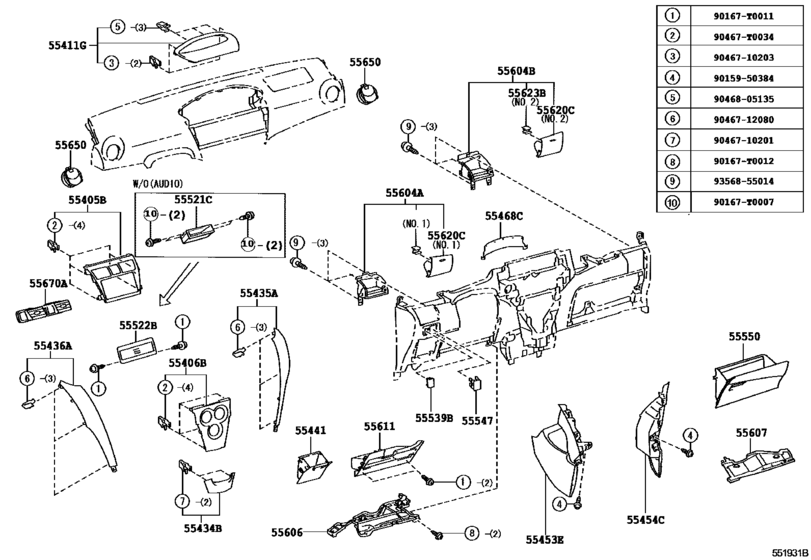

Instrument Panel & Glove Compartment ([08.2007 - ] (0708- )LHD) Diagram Toyota VIOS
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- NCP93
- grade
- LIMO
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- VN
- Model
- LIMO
- From
- 09.2007
- To
- 01.2014
- Vehicle Model
- LIMO
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55405B
|
55405B
55405-0D360
Panel Sub-Assy, Instrument Cluster Finish, Center
[02.2007 - 04.2010] NCP9#..(13J,J,LIMO)..(MA,PH,VN) |
55405-0D360 |
— | ||
|
55406B
|
55406B
55406-0D270
Panel Sub-Assy, Instrument Cluster Finish, Lower Center
[02.2007 - 04.2010] NCP9#..(13E,13J,J,LIMO)..(MA,PH,VN) |
55406-0D270 |
— | ||
|
55411G
|
55411G
55411-0D110-B0
Panel, Instrument Cluster Finish, No.1
[02.2007 - 04.2010] NCP93..PH;NCP9#..13E,13J,15S DK.GRAY,TRIM1#; NCP93..MTM..VN;NCP93..RHD..(15E,15G,15J,E,G,J,LIMO,S) DK.GRAY,TRIM1#,4# |
55411-0D110-B0 |
— | ||
|
55434B
|
55434B
55434-0D060-B2
Panel, Instrument Panel Finish, Lower Center
[02.2007 - 04.2010] NCP93..(15G,E,G)..(IDN,MA,VN) DK.GRAY,TRIM4#; NCP93..PH;NCP93..15E..IDN;NCP9#..13E,13J,15J,15S,J,LIMO,S DK.GRAY,TRIM1# |
55434-0D060-B2 |
— | ||
|
55434B
|
55434B
55434-0D070-C0
Panel, Instrument Panel Finish, Lower Center
[03.2010 - 03.2014] NCP9#..13J,15J,J,LIMO BLACK,TRIM1# |
55434-0D070-C0 |
— | ||
|
55435A
|
55435A
55435-0D060-B2
Panel, Instrument Panel Finish, End Rh
[02.2007 - 04.2010] NCP93..PH;NCP93..15E..IDN;NCP9#..13E,13J,15J,15S,J,LIMO,S DK.GRAY,TRIM1#; NCP93..E,G;NCP93..MTM..15G..IDN DK.GRAY,TRIM4# |
55435-0D060-B2 |
— | ||
|
55435A
|
55435A
55435-0D080-C0
Panel, Instrument Panel Finish, End Rh
[03.2010 - 03.2014] NCP9#..13J,15J,J,LIMO BLACK,TRIM1# |
55435-0D080-C0 |
— | ||
|
55436A
|
55436A
55436-0D060-B2
Panel, Instrument Panel Finish, End Lh
[02.2007 - 04.2010] NCP93..(15G,E,G)..(IDN,MA,VN) DK.GRAY,TRIM4#; NCP93..PH;NCP93..15E..IDN;NCP9#..13E,13J,15J,15S,J,LIMO,S DK.GRAY,TRIM1# |
55436-0D060-B2 |
— | ||
|
55436A
|
55436A
55436-0D080-C0
Panel, Instrument Panel Finish, End Lh
[03.2010 - 03.2014] NCP9#..13J,15J,J,LIMO BLACK,TRIM1# |
55436-0D080-C0 |
— | ||
|
55441
|
55441
55441-52120-B0
Box, Instrument Panel
[08.2007 - 04.2010] NCP9#..LHD..(13E,13J,15G,E,LIMO) DK.GRAY,TRIM1# |
55441-52120-B0 |
— | ||
|
55441
|
55441
55441-52120-E0 Box, Instrument PanelINSTRUMENT PANEL [09.2007 - 04.2010] NCP93..VN GREGE,TRIM4# |
55441-52120-E0 |
US $34.32 |
||
|
55453E
|
55453E
55480-0D020-B0
Pad, Instrument, Lower Rh
[08.2007 - 04.2010] NCP9#..LHD..(13E,13J,15G,LIMO) DK.GRAY,TRIM1# |
55480-0D020-B0 |
— | ||
|
55454C
|
55454C
55470-0D020-B0
Pad, Instrument, Lower Lh
[08.2007 - 04.2010] NCP9#..LHD..(13E,13J,15G,LIMO) DK.GRAY,TRIM1# |
55470-0D020-B0 |
— | ||
|
55468C
|
55468C
55468-0D040
Seal, Instrument Cluster Finish Panel, No.1
[02.2007 - 04.2010] NCP9#..MA,PH,VN |
55468-0D040 |
— | ||
|
55521C
|
55521C
55521-0A010
Cover, Radio Tuner Opening
[08.2007 - 04.2010] NCP9#..LHD..(13J,LIMO) |
55521-0A010 |
— | ||
|
55539B
|
55539B
55539-52060-B0 Cover, Spare Switch Hole[08.2007 - 04.2010] NCP9#..(13E,13J,15G,J,LIMO,S)..(MA,PH,VN) DK.GRAY,TRIM1# |
55539-52060-B0 |
from US $3.71 |
||
|
55547
|
55547
55547-0D010-B1
Cover, Remote Control Mirror Hole
[02.2007 - 04.2010] NCP9#..13E,13J,15J,J,LIMO DK.GRAY,TRIM1# |
55547-0D010-B1 |
— | ||
|
55547
|
55547
55547-0D010-E0
Cover, Remote Control Mirror Hole
[02.2007 - 04.2008] NCP93..LIMO..VN;NCP93..RHD..(15J,E,J,LIMO) GREGE,TRIM4# |
55547-0D010-E0 |
— | ||
|
55550
|
55550
55550-0D110-B0
Door Assy, Glove Compartment
[08.2007 - 04.2010] NCP9#..LHD..(13E,13J,15G,LIMO) DK.GRAY,TRIM1# |
55550-0D110-B0 |
— | ||
|
55604A
|
55604A
55618-0D040-B0
Holder Sub-Assy, Instrument Panel Cup
[08.2007 - 04.2010] NCP9#..LHD..(13E,13J,15G,LIMO) DK.GRAY,TRIM1# |
55618-0D040-B0 |
— | ||
|
55604B
|
55604B
55619-0D040-B0
Holder Sub-Assy, Instrument Panel Cup
[08.2007 - 04.2010] NCP9#..LHD..(13E,13J,15G,LIMO) DK.GRAY,TRIM1# |
55619-0D040-B0 |
— | ||
|
55611
|
55611
55611-0D140-B0
Tray, Instrument Panel Under
[08.2007 - 04.2010] NCP9#..LHD..(13E,13J,15G,LIMO) DK.GRAY,TRIM1# |
55611-0D140-B0 |
— | ||
|
55620C
|
55620C
55620-0D030-B0
Holder, Instrument Panel Cup
[08.2007 - 04.2010] NCP9#..LHD..(13E,13J,15G,LIMO) DK.GRAY,TRIM1#,NO.1 |
55620-0D030-B0 |
— | ||
|
55620C
|
55620C
55620-0D040-B0
Holder, Instrument Panel Cup
[08.2007 - 04.2010] NCP9#..LHD..(13E,13J,15G,LIMO) DK.GRAY,TRIM1#,NO.2 |
55620-0D040-B0 |
— | ||
|
55623B
|
55623B
55623-52040
Spring, Instrument Panel Cup Holder
[08.2007 - 04.2010] NCP9#..LHD NO.1 |
55623-52040 |
— | ||
|
55623B
|
55623B
55623-52050 Spring, Instrument Panel Cup HolderINSTRUMENT PANEL CUP HOLDER [08.2007 - 04.2010] NCP9#..LHD NO.2 |
55623-52050 |
US $1.31 |
||
|
55650
|
55650
55650-0D080-B0
Register Assy, Instrument Panel, No.1
[02.2007 - 04.2010] NCP93..PH;NCP9#..13E,13J,15S DK.GRAY,TRIM1#; NCP93..MTM..VN;NCP93..RHD..(15E,15G,15J,E,G,J,LIMO,S) DK.GRAY,TRIM1#,4# |
55650-0D080-B0 |
— | ||
|
55650
|
55650
55650-52140-B0 Register Assy, Instrument Panel, No.1[12.2011 - 03.2014] NCP92;NCP93..MTM..(15G,LIMO)..IDN;NCP93..ATM..(15E,15G,15J,E,J,S);NCP93..MTM..(15E ,15G,15J,J,LIMO)..(MA,PH,TH,VN) DK.GRAY,TRIM1#,(J) |
55650-52140-B0 |
US $29.99 |
||
|
55670A
|
55670A
55670-0D030
Register Assy, Instrument Panel, Center
[02.2007 - 04.2010] NCP9# |
55670-0D030 |
— | ||
| replacement | |||||
|
55670A
|
55670A
55670-0D090
Register Assy, Instrument Panel, Center
[02.2007 - 04.2010] NCP9# |
55670-0D090 |
— | ||
|
55670A
|
55670A
55670-0D090
Register Assy, Instrument Panel, Center
[05.2010 - 03.2014] NCP93..LIMO..IDN;NCP9#..(13E,13J,15E,15J,E,J,LIMO,S)..(MA,PH,TH,VN) |
55670-0D090 |
— | ||
|
90167T0007
|
90167T0007
90167-T0007 Screw,pan Tapping |
90167-T0007 |
US $0.52 |
||
|
90167T0011
|
90167T0011
90167-T0011
New Genuine Part
|
90167-T0011 |
— | ||
|
90167T0012
|
90167T0012
90167-T0012
Direct
|
90167-T0012 |
— | ||
| replacement | |||||
|
90167T0012
|
90167T0012
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
90467T0034
|
90467T0034
90467-T0034
Clip (For Quarter Panel Garnish)
|
90467-T0034 |
— | ||
|
9015950384
|
9015950384
90159-50384 SCREW WWASHER |
90159-50384 |
US $1.02 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.96 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.96 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
