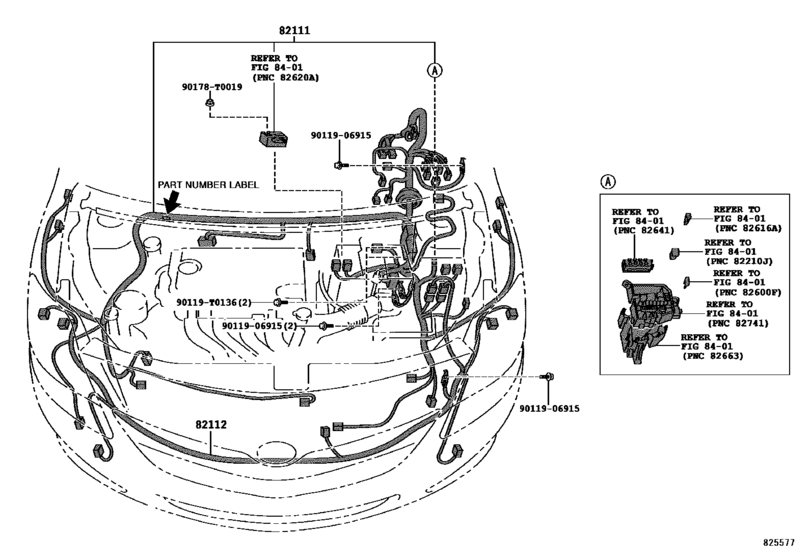

Wiring & Clamp ([08.2007 - 04.2010] ENGINE ROOM (0708-1004)LHD) Diagram Toyota VIOS
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- NCP93
- grade
- LIMO
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- VN
- Model
- LIMO
- From
- 09.2007
- To
- 01.2014
- Vehicle Model
- LIMO
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-0DK10
Wire, Engine Room Main
[09.2007 - 04.2010] NCP93..LIMO..VN |
82111-0DK10 |
— | ||
|
82111
|
82111
82111-0DT60
Wire, Engine Room Main
[09.2012 - 03.2014] NCP93..LIMO..VN |
82111-0DT60 |
— | ||
|
82111
|
82111
82111-0DT70
Wire, Engine Room Main
[04.2010 - 09.2012] NCP93..LIMO..VN |
82111-0DT70 |
— | ||
|
82112
|
82112
82112-0D100
Wire, Engine Room, No.2
[02.2007 - 04.2010] NCP9#..(13E,13J,J,LIMO)..(MA,PH,VN) |
82112-0D100 |
— | ||
|
90119T0136
|
90119T0136
90119-T0136
New Genuine Part
|
90119-T0136 |
— | ||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.82 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.70 |
