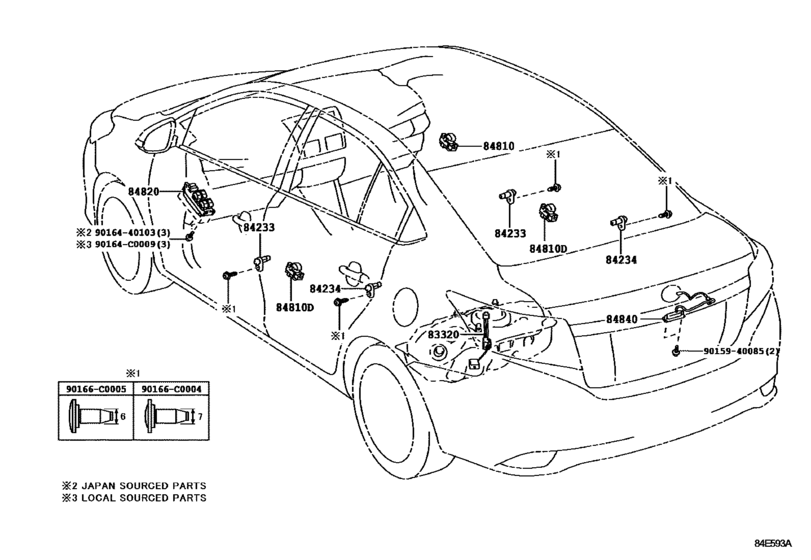

Switch & Relay & Computer ([11.2013 - ] DOOR,ROOF,FLOOR & LUGGAGE (1311- )4D) Diagram Toyota VIOS
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- NSP151
- grade
- MID
- body
- SED
- ENGINE
- 5NRFE
- TRANSMISSION
- MTM
- Model
- VIOS (CHINA)
- From
- 11.2013
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- VIOS
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-0D140
Gage Assy, Fuel Sender
[11.2013 - 09.2016] NSP15# |
83320-0D140 |
— | ||
|
84233
|
84233
84231-0D110
Switch Assy, Courtesy Lamp (For Front Door)
[11.2013 - 09.2016] NSP15# |
84231-0D110 |
— | ||
|
84234
|
84234
84231-0D110
Switch Assy, Courtesy Lamp (For Front Door)
[11.2013 - 09.2016] NSP15# |
84231-0D110 |
— | ||
|
84810
|
84810
84810-0D080
Switch Assy, Power Window Regulator
[11.2013 - 09.2016] NSP15# |
84810-0D080 |
— | ||
|
84810D
|
84810D
84810-0D080
Switch Assy, Power Window Regulator
[11.2013 - 09.2016] NSP15# |
84810-0D080 |
— | ||
|
84820
|
84820
84820-0D230
Master Switch Assy, Power Window Regulator
[11.2013 - 09.2016] NSP15# |
84820-0D230 |
— | ||
|
90164C0009
|
90164C0009
90164-C0009
New Genuine Part
|
90164-C0009 |
— | ||
|
90166C0004
|
90166C0004
90166-C0004
New Genuine Part
|
90166-C0004 |
— | ||
|
90166C0005
|
90166C0005
90166-C0005
New Genuine Part
|
90166-C0005 |
— | ||
|
9015940085
|
9015940085
90159-40085 SCREW |
90159-40085 |
from US $0.74 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
