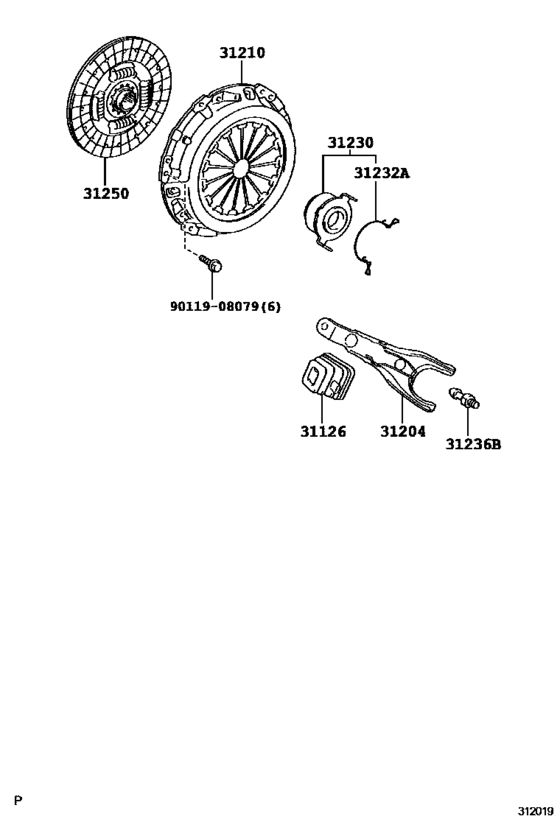

Clutch & Release Fork ([02.2008 - ] (0802- )5F) Diagram Toyota VIOS
- Year
- 2008 - 2013
- Sales region
- General
- Frame
- ZSP92
- grade
- GLI
- ENGINE
- 1ZRFE
- TRANSMISSION
- MTM
- Model
- VIOS (CHINA)
- From
- 02.2008
- To
- 07.2013
- Gear Shift Type
- 5F
- Vehicle Model
- VIOS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[02.2008 - 08.2010] NCP92,ZSP92..5F |
31126-12051 |
from US $10.08 |
||
|
31204
|
31204
31204-52010 Fork Sub-Assy, Clutch Release[02.2008 - 08.2010] NCP92,ZSP92..5F |
31204-52010 |
from US $21.58 |
||
|
31210
|
31210
31210-02260
Cover Assy, Clutch
[02.2008 - 08.2010] ZSP92..5F |
31210-02260 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-02340
Cover Assy, Clutch
[02.2008 - 08.2010] ZSP92..5F |
31210-02340 |
— | ||
|
31230
|
31230
31230-12180
Bearing Assy, Clutch Release
[02.2008 - 12.2008] NCP92,ZSP92..5F |
31230-12180 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-12181 Bearing Assy, Clutch Release[02.2008 - 12.2008] NCP92,ZSP92..5F |
31230-12181 |
from US $35.84 |
||
|
31230
|
31230
31230-12181 Bearing Assy, Clutch Release[12.2008 - 08.2010] NCP92,ZSP92..5F |
31230-12181 |
from US $35.84 |
||
|
31232A
|
31232A
31232-12080 Clip, Release Bearing Hub[02.2008 - 08.2010] NCP92,ZSP92..5F |
31232-12080 |
US $2.08 |
||
|
31236B
|
31236B
31236-12020 Support, Release Fork[02.2008 - 08.2010] NCP92,ZSP92..5F |
31236-12020 |
US $8.16 |
||
|
31250
|
31250
31250-02201
Disc Assy, Clutch
[02.2008 - 08.2010] ZSP92..5F |
31250-02201 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-02300
Disc Assy, Clutch
[02.2008 - 08.2010] ZSP92..5F |
31250-02300 |
— | ||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
