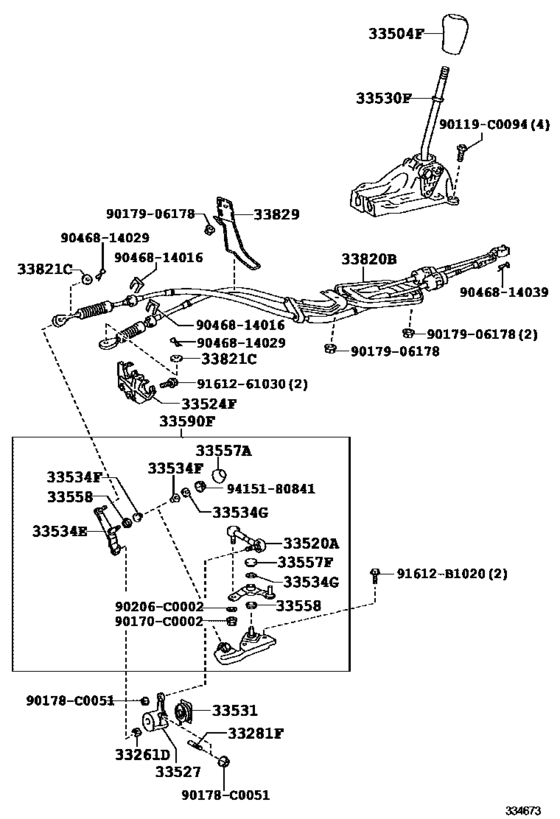

Shift Lever & Retainer ([02.2008 - ] (0802- )5F) Diagram Toyota VIOS
- Year
- 2008 - 2013
- Sales region
- General
- Frame
- ZSP92
- grade
- GLI
- ENGINE
- 1ZRFE
- TRANSMISSION
- MTM
- Model
- VIOS (CHINA)
- From
- 02.2008
- To
- 07.2013
- Gear Shift Type
- 5F
- Vehicle Model
- VIOS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33261D
|
33261D
33557-0D010
Bush (For Shift & Select Lever)
[02.2008 - 08.2010] NCP92,ZSP92..5F |
33557-0D010 |
— | ||
| replacement | |||||
|
33261D
|
33261D
33557-0D041
Bush (For Shift & Select Lever)
[02.2008 - 08.2010] NCP92,ZSP92..5F |
33557-0D041 |
— | ||
|
33281F
|
33281F
33281-16020 Pin, Lever Lock (For Shift Outer Lever)[02.2008 - 08.2010] NCP92,ZSP92..5F |
33281-16020 |
from US $1.40 |
||
|
33504F
|
33504F
33504-13010-B0 Knob Sub-Assy, Shift Lever[02.2008 - 08.2010] NCP92,ZSP92..5F DK.GRAY,TRIM4# |
33504-13010-B0 |
from US $77.93 |
||
|
33504F
|
33504F
33504-13010-E1
Knob Sub-Assy, Shift Lever
[08.2010 - 07.2013] NCP92,ZSP92..5F ASH BROWN,TRIM4# |
33504-13010-E1 |
— | ||
|
33520A
|
33520A
33520-52050 Shaft Assy, Floor Shift Control[02.2008 - 08.2010] NCP92,ZSP92..5F |
33520-52050 |
US $23.24 |
||
|
33524F
|
33524F
33524-02030
Bracket, Control Lever Housing Support (For Floor Shift)
[02.2008 - 08.2010] NCP92,ZSP92..5F |
33524-02030 |
— | ||
|
33527
|
33527
33527-0D010
Lever, Control Shift (For Floor Shift)
[02.2008 - 08.2010] NCP92,ZSP92..5F |
33527-0D010 |
— | ||
|
33530F
|
33530F
33530-0D060
Lever Assy, Shift (For Floor Shift)
[05.2011 - 07.2013] NCP92,ZSP92..5F |
33530-0D060 |
— | ||
|
33530F
|
33530F
33530-52210 Lever Assy, Shift (For Floor Shift)[02.2008 - 08.2010] NCP92,ZSP92..5F |
33530-52210 |
US $47.35 |
||
|
33531
|
33531
33531-0D030
Boot, Dust (For Control Shift Lever)
[02.2008 - 08.2010] NCP92,ZSP92..5F |
33531-0D030 |
— | ||
|
33534E
|
33534E
33534-0D010
Crank, Selecting Bell, No.2
[02.2008 - 08.2010] NCP92,ZSP92..5F |
33534-0D010 |
— | ||
|
33534F
|
33534F
90386-C0001
Bush (For Selecting Bellcrank No.2)
[02.2008 - 08.2010] NCP92,ZSP92..5F |
90386-C0001 |
— | ||
| replacement | |||||
|
33534F
|
33534F
90386-C0002
Bush (For Selecting Bellcrank No.2)
[02.2008 - 08.2010] NCP92,ZSP92..5F |
90386-C0002 |
— | ||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[02.2008 - 08.2010] NCP92,ZSP92..5F |
90201-08028 |
US $0.96 |
||
|
33557A
|
33557A
33557-0D030
Cover, Selecting Bellcrank Dust, No.1
[02.2008 - 08.2010] NCP92,ZSP92..5F |
33557-0D030 |
— | ||
| replacement | |||||
|
33557A
|
33557A
33557-0D031
Cover, Selecting Bellcrank Dust, No.1
[02.2008 - 08.2010] NCP92,ZSP92..5F |
33557-0D031 |
— | ||
|
33557F
|
33557F
33557-0D020
Bush (For Shift & Select Lever)
[02.2008 - 08.2010] NCP92,ZSP92..5F |
33557-0D020 |
— | ||
|
33558
|
33558
33558-0D010
Cover, Selecting Bellcrank Dust, No.2
[02.2008 - 08.2010] NCP92,ZSP92..5F |
33558-0D010 |
— | ||
| replacement | |||||
|
33558
|
33558
33558-0D011
Cover, Selecting Bellcrank Dust, No.2
[02.2008 - 08.2010] NCP92,ZSP92..5F |
33558-0D011 |
— | ||
|
33590F
|
33590F
33590-0D010
Crank Assy, Selecting Bell (For Floor Shift)
[02.2008 - 08.2010] NCP92,ZSP92..5F |
33590-0D010 |
— | ||
|
33820B
|
33820B
33820-0D220
Cable Assy, Transmission Control
[02.2008 - 08.2010] ZSP92..5F |
33820-0D220 |
— | ||
|
33821C
|
33821C
90201-08267 Washer, Plate (For Transfer Control Cable)[02.2008 - 08.2010] NCP92,ZSP92..5F OD=28 |
90201-08267 |
from US $0.92 |
||
|
33829
|
33829
33829-52092 Support, Transmission Control Cable[02.2008 - 03.2008] NCP92,ZSP92..5F; NCP92..4FC NO.2 |
33829-52092 |
US $6.12 |
||
|
90119C0094
|
90119C0094
90119-C0094
New Genuine Part
|
90119-C0094 |
— | ||
|
90170C0002
|
90170C0002
90170-C0002
New Genuine Part
|
90170-C0002 |
— | ||
|
90178C0051
|
90178C0051
90178-C0051
New Genuine Part
|
90178-C0051 |
— | ||
|
90206C0002
|
90206C0002
90206-C0002
New Genuine Part
|
90206-C0002 |
— | ||
|
91612B1020
|
91612B1020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814029
|
9046814029
90468-14029 CLIP |
90468-14029 |
US $0.70 |
||
|
9046814039
|
9046814039
90468-14039 CLIP |
90468-14039 |
US $1.28 |
||
|
9161261030
|
9161261030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9415180841
|
9415180841
94151-80841 FLANGE NUT |
94151-80841 |
from US $0.92 |
||
