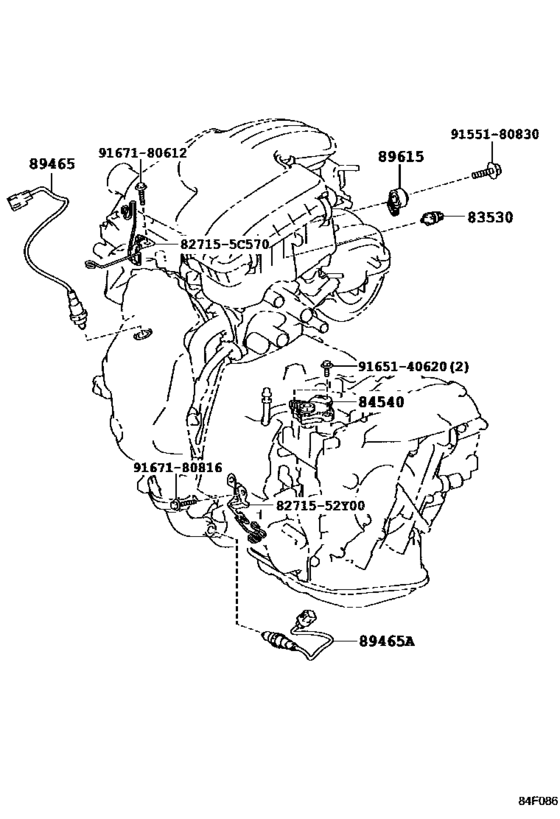

Switch & Relay & Computer ([04.2014 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (1404- )KSP130) Diagram Toyota VITZ
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- KSP130
- grade
- JEWL
- ENGINE
- 1KRFE
- TRANSMISSION
- CVT
- From
- 12.2010
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU ＤＥＮＳＯ |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU ＤＥＮＳＯ |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU ＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU ＹＡＺＡＫＩ |
83530-60020 |
from US $25.55 |
||
|
84540
|
84540
84540-52070 Switch Assy, Neutral Start[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CVT..CBU |
84540-52070 |
from US $112.48 |
||
|
89465
|
89465
89465-0H030 Sensor, Oxygen[04.2014 - 01.2017] KSP130..CBU |
89465-0H030 |
US $125.80 |
||
|
89465
|
89465
89467-52140
Sensor, Oxygen
[12.2010 - 05.2012] KSP130..CBU |
89467-52140 |
— | ||
| replacement | |||||
|
89465
|
89465
89467-52180 Sensor, Oxygen[12.2010 - 05.2012] KSP130..CBU |
89467-52180 |
US $228.96 |
||
|
89465
|
89465
89467-52180 Sensor, Oxygen[06.2012 - 04.2014] KSP130..CBU |
89467-52180 |
US $228.96 |
||
|
89465A
|
89465A
89465-52690 Sensor, Oxygen No.2[12.2010 - 04.2014] KSP130..CBU |
89465-52690 |
US $149.76 |
||
|
89465A
|
89465A
89465-52800
Sensor, Oxygen No.2
[04.2014 - 06.2016] KSP130..CBU |
89465-52800 |
— | ||
| replacement | |||||
|
89465A
|
89465A
89465-52840 Sensor, Oxygen No.2[04.2014 - 06.2016] KSP130..CBU |
89465-52840 |
US $101.34 |
||
|
89465A
|
89465A
89465-52860
Sensor, Oxygen No.2
[07.2016 - 01.2017] KSP130..CBU |
89465-52860 |
— | ||
| replacement | |||||
|
89465A
|
89465A
89465-52840 Sensor, Oxygen No.2[07.2016 - 01.2017] KSP130..CBU |
89465-52840 |
US $101.34 |
||
|
89615
|
89615
89615-0H010 Sensor, Knock ControlKNOCK CONTROL [04.2014 - 01.2017] KSP130..CBU |
89615-0H010 |
US $142.69 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
89615-20090 |
from US $36.02 |
||
|
827155C570
|
827155C570
82715-5C570 Bracket,wiring Harness Clamp |
82715-5C570 |
US $3.93 |
||
|
8271552Y00
|
8271552Y00
82715-52Y00 Bracket,wiring Harness Clamp |
82715-52Y00 |
US $7.13 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.92 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.84 |
||
