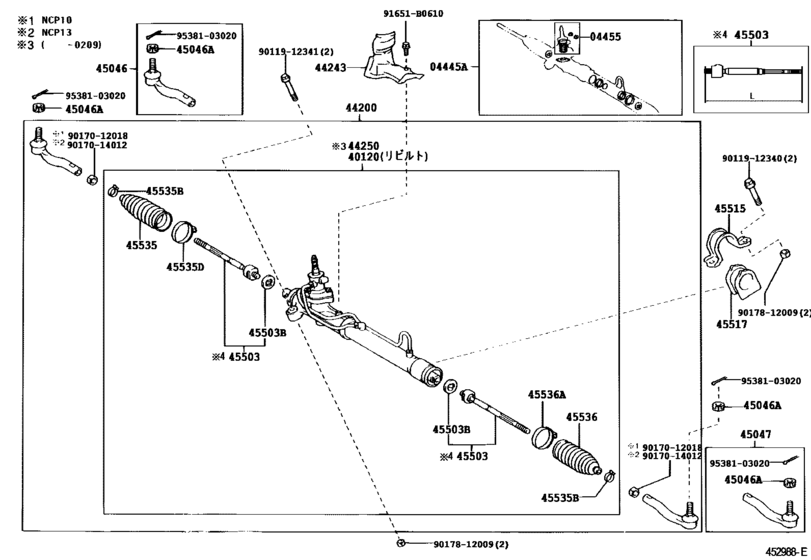

Front Steering Gear & Link ([12.2001 - ] ｱﾘ(ﾕｱﾂｼｷ ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) (0112- )NCP10,13) Diagram Toyota VITZ
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- NCP10
- grade
- CLA
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- From
- 09.1999
- To
- 12.2002
- Gear Shift Type
- 4FC
- No.of Doors
- 3D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-52020 Gasket Kit, Power Steering Gear(For Rack & Pinion)[08.1999 - 12.2001] NCP10,13,SCP10 |
04445-52020 |
US $75.24 |
||
|
04455
|
04455
04455-52010 Gasket Kit, Power Steering Control Valve Overhole[01.1999 - 12.2001] NCP10,13,SCP10 |
04455-52010 |
US $28.83 |
||
|
40120
|
40120
40120-52041 Gear Assy,power Steering,rebuilt[08.1999 - 12.2001] NCP10,SCP10..B,CLA,F,U |
40120-52041 |
US $960.96 |
||
|
40120
|
40120
40120-52100 Gear Assy,power Steering,rebuilt[12.2001 - 12.2002] NCP10,SCP10..CLA,F,U ｱﾘ(175/65R14) |
40120-52100 |
US $666.85 |
||
|
44200
|
44200
44200-52041
Link Assy, Power Steering
[08.1999 - 12.2001] NCP10,SCP10..B,CLA,F,U |
44200-52041 |
— | ||
|
44200
|
44200
44200-52130 Link Assy, Power Steering[12.2001 - 12.2002] SCP10..F ｱﾘ(175/65R14); NCP10,SCP10..CLA,F,U ｱﾘ(175/65R14) |
44200-52130 |
US $1,030.85 |
||
|
44243
|
44243
44243-52030 Insulator, Power Steering Rack Housing Heat[09.1999 - 09.2001] NCP10,13 |
44243-52030 |
US $19.36 |
||
| replacement | |||||
|
44243
|
44243
44243-52032 Insulator, Power Steering Rack Housing Heat[09.1999 - 09.2001] NCP10,13 |
44243-52032 |
US $13.25 |
||
|
44243
|
44243
44243-52031 Insulator, Power Steering Rack Housing Heat[09.2001 - 12.2001] NCP10,13 |
44243-52031 |
US $19.36 |
||
| replacement | |||||
|
44243
|
44243
44243-52032 Insulator, Power Steering Rack Housing Heat[09.2001 - 12.2001] NCP10,13 |
44243-52032 |
US $13.25 |
||
|
44243
|
44243
44243-52032 Insulator, Power Steering Rack Housing Heat[07.2002 - 12.2002] NCP10,13 |
44243-52032 |
US $13.25 |
||
|
44250
|
44250
44250-52041 Gear Assy, Power Steering(For Rack & Pinion)[08.1999 - 12.2001] NCP10,SCP10..B,CLA,F,U |
44250-52041 |
US $1,368.64 |
||
| replacement | |||||
|
44250
|
44250
44200-52041
Link Assy, Power Steering
[08.1999 - 12.2001] NCP10,SCP10..B,CLA,F,U |
44200-52041 |
— | ||
|
44250
|
44250
44250-52100
Gear Assy, Power Steering(For Rack & Pinion)
[12.2001 - 09.2002] SCP10..F ｱﾘ(175/65R14); NCP10,SCP10..CLA,F,U ｱﾘ(175/65R14) |
44250-52100 |
— | ||
| replacement | |||||
|
44250
|
44250
44200-52130 Link Assy, Power Steering[12.2001 - 09.2002] SCP10..F ｱﾘ(175/65R14); NCP10,SCP10..CLA,F,U ｱﾘ(175/65R14) |
44200-52130 |
US $1,030.85 |
||
|
45046
|
45046
45046-59025
End Sub-Assy, Tie Rod, Rh
[01.1999 - 11.1999] NCP10,SCP10 |
45046-59025 |
— | ||
| replacement | |||||
|
45046
|
45046
45046-59026 End Sub-Assy, Tie Rod, Rh[01.1999 - 11.1999] NCP10,SCP10 |
45046-59026 |
from US $47.58 |
||
|
45046
|
45046
45046-59026 End Sub-Assy, Tie Rod, Rh[11.1999 - 12.2001] NCP10,SCP10 |
45046-59026 |
from US $47.58 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[01.1999 - 12.2001] NCP1#,SCP10 |
90171-12028 |
from US $1.38 |
||
|
45047
|
45047
45047-59025
End Sub-Assy, Tie Rod, Rh
[01.1999 - 11.1999] NCP10,SCP10 |
45047-59025 |
— | ||
| replacement | |||||
|
45047
|
45047
45047-59026 End Sub-Assy, Tie Rod, Rh[01.1999 - 11.1999] NCP10,SCP10 |
45047-59026 |
from US $50.04 |
||
|
45047
|
45047
45047-59026 End Sub-Assy, Tie Rod, Rh[11.1999 - 12.2001] NCP10,SCP10 |
45047-59026 |
from US $50.04 |
||
|
45503
|
45503
45503-59045 End Sub-Assy, Steering Rack[01.1999 - 11.1999] NCP1#,SCP10 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ),L=256:ｲﾗｽﾄｻﾝｼｮｳ |
45503-59045 |
from US $77.28 |
||
|
45503B
|
45503B
90214-14010 Washer, Claw(For Steering Rack End)[01.1999 - 12.2001] NCP10,13,SCP10 外径＝３４ |
90214-14010 |
US $2.18 |
||
|
45515
|
45515
45515-52010 Bracket, Steering Rack Housing, No.2[01.1999 - 12.2001] NCP10,13,SCP10 |
45515-52010 |
US $9.09 |
||
|
45517
|
45517
45517-52010 Grommet, Steering Rack Housing, No.2[09.1999 - 12.2001] NCP10,13 |
45517-52010 |
US $20.52 |
||
|
45535
|
45535
45535-52040 Boot, Steering Rack, No.1[09.1999 - 12.2001] NCP10 |
45535-52040 |
US $19.46 |
||
|
45535B
|
45535B
90466-17002 Clip(For Steering Rack Boot)[09.1999 - 12.2001] NCP10 |
90466-17002 |
US $1.92 |
||
|
45535D
|
45535D
90460-55016 Clamp(For Power Steering Rack Boot)[01.1999 - 12.2001] NCP10,13,SCP10 |
90460-55016 |
from US $3.84 |
||
|
45536
|
45536
45535-52040 Boot, Steering Rack, No.1[09.1999 - 12.2001] NCP10 |
45535-52040 |
US $19.46 |
||
|
45536A
|
45536A
90460-55016 Clamp(For Power Steering Rack Boot)[01.1999 - 12.2001] NCP10,13,SCP10 |
90460-55016 |
from US $3.84 |
||
|
91651B0610
|
91651B0610
91651-B0610 BOLTWWASHER |
91651-B0610 |
from US $1.92 |
||
|
9011912340
|
9011912340
90119-12340 BOLT WWASHER |
90119-12340 |
from US $3.84 |
||
|
9011912341
|
9011912341
90119-12341 New Genuine Part |
90119-12341 |
US $5.07 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $1.28 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.09 |
||
|
9017812009
|
9017812009
90178-12009 Nut(For Suspension Lower Arm Shaft) |
90178-12009 |
from US $1.74 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
