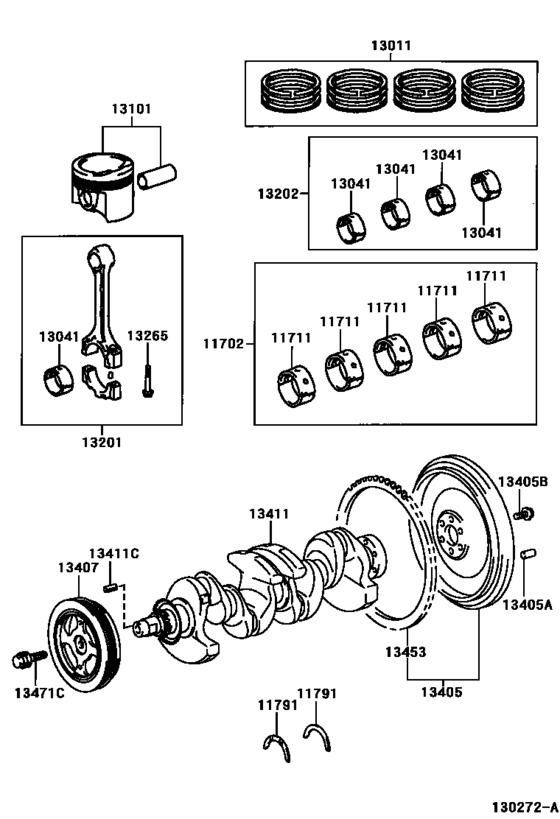

Crankshaft & Piston ([08.1999 - ] (9908- )1NZFE,2NZFE) Diagram Toyota VITZ
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- NCP15
- grade
- CLA
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- From
- 09.1999
- To
- 12.2002
- Gear Shift Type
- 4FC
- No.of Doors
- 3D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11702
|
11702
11704-21010
Bearing Set, Crankshaft
[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# Ｕ／Ｓ ０．２５ |
11704-21010 |
— | ||
| replacements | |||||
|
11702
|
11702
11704-21032 Bearing Set, Crankshaft[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# Ｕ／Ｓ ０．２５ |
11704-21032 |
from US $100.62 |
||
|
11702
|
11702
11704-21020 Bearing Set, Crankshaft[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# Ｕ／Ｓ ０．２５ |
11704-21020 |
from US $91.67 |
||
|
11711
|
11711
11701-21010-01
Bearing, Crankshaft
[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
11701-21010-01 |
— | ||
| replacements | |||||
|
11711
|
11711
11701-21032-01 Bearing, Crankshaft[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
11701-21032-01 |
from US $16.81 |
||
|
11711
|
11711
11701-21020-01 Bearing, CrankshaftCRANKSHAFT [08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
11701-21020-01 |
from US $15.83 |
||
|
11711
|
11711
11701-21010-02
Bearing, Crankshaft
[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
11701-21010-02 |
— | ||
| replacements | |||||
|
11711
|
11711
11701-21032-02 Bearing, Crankshaft[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
11701-21032-02 |
from US $15.83 |
||
|
11711
|
11711
11701-21020-02 Bearing, CrankshaftCRANKSHAFT [08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
11701-21020-02 |
from US $17.30 |
||
|
11711
|
11711
11701-21010-03
Bearing, Crankshaft
[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
11701-21010-03 |
— | ||
| replacements | |||||
|
11711
|
11711
11701-21032-03 Bearing, Crankshaft[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
11701-21032-03 |
from US $16.81 |
||
|
11711
|
11711
11701-21020-03 Bearing, CrankshaftCRANKSHAFT [08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
11701-21020-03 |
from US $16.98 |
||
|
11711
|
11711
11701-21010-04
Bearing, Crankshaft
[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# MARK 4:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
11701-21010-04 |
— | ||
| replacements | |||||
|
11711
|
11711
11701-21032-04 Bearing, Crankshaft[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# MARK 4:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
11701-21032-04 |
from US $16.81 |
||
|
11711
|
11711
11701-21020-04 Bearing, CrankshaftCRANKSHAFT [08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# MARK 4:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
11701-21020-04 |
US $41.93 |
||
|
11791
|
11791
11791-21010
Washer, Crankshaft Thrust, Upper
[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# ＳＴＤ |
11791-21010 |
— | ||
| replacement | |||||
|
11791
|
11791
11791-22020 Washer, Crankshaft Thrust, Upper[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# ＳＴＤ |
11791-22020 |
from US $16.91 |
||
|
11791
|
11791
11791-22020 Washer, Crankshaft Thrust, Upper[12.2001 - 12.2002] 1NZFE,2NZFE..NCP1# ＳＴＤ |
11791-22020 |
from US $16.91 |
||
|
11791
|
11791
11792-21010
Washer, Crankshaft Thrust, Upper
[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# Ｏ／Ｓ ０．１２５ |
11792-21010 |
— | ||
| replacement | |||||
|
11791
|
11791
11792-22020 Washer, Crankshaft Thrust, Upper[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# Ｏ／Ｓ ０．１２５ |
11792-22020 |
US $25.92 |
||
|
11791
|
11791
11793-21010
Washer, Crankshaft Thrust, Upper
[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# Ｏ／Ｓ ０．２５ |
11793-21010 |
— | ||
| replacement | |||||
|
11791
|
11791
11793-22020 Washer, Crankshaft Thrust, Upper[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# Ｏ／Ｓ ０．２５ |
11793-22020 |
US $25.92 |
||
|
13011
|
13011
13011-21050 Ring Set, Piston[08.1999 - 12.2001] 2NZFE..NCP10,15 ＳＴＤ |
13011-21050 |
from US $92.06 |
||
|
13041
|
13041
13041-21030-01 Bearing, Connecting Rod[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
13041-21030-01 |
from US $11.45 |
||
|
13041
|
13041
13041-21030-02 Bearing, Connecting Rod[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
13041-21030-02 |
from US $10.49 |
||
|
13041
|
13041
13041-21030-03 Bearing, Connecting Rod[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
13041-21030-03 |
US $16.89 |
||
|
13101
|
13101
13101-21040 Piston Sub-Assy, W/pin[08.1999 - 12.2001] 2NZFE..NCP10,15 ＳＴＤ |
13101-21040 |
from US $53.55 |
||
|
13101
|
13101
13101-21080 Piston Sub-Assy, W/pin[08.2002 - 12.2002] 2NZFE..NCP10,15 ＳＴＤ |
13101-21080 |
from US $45.55 |
||
|
13201
|
13201
13201-29115 Rod Sub-Assy, Connecting[08.1999 - 12.2001] 2NZFE..NCP10,15 |
13201-29115 |
US $136.86 |
||
| replacement | |||||
|
13201
|
13201
13201-29717 Rod Sub-Assy, Connecting[08.1999 - 12.2001] 2NZFE..NCP10,15 |
13201-29717 |
from US $72.45 |
||
|
13202
|
13202
13204-21030
Bearing Set, Connecting Rod
[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# Ｕ／Ｓ ０．２５ |
13204-21030 |
— | ||
|
13265
|
13265
13265-21020 Bolt, Connecting Rod[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# |
13265-21020 |
US $4.80 |
||
|
13407
|
13407
13407-21020 Damper Sub-Assy, Crankshaft[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# |
13407-21020 |
US $220.32 |
||
|
13411
|
13411
13401-21030 Crankshaft[08.1999 - 12.2001] 2NZFE..NCP10,15 |
13401-21030 |
US $645.01 |
||
|
13411C
|
13411C
90254-03025
Pin, Straight(For Crankshaft)
[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# |
90254-03025 |
— | ||
| replacement | |||||
|
13411C
|
13411C
90250-03095 Pin, Straight(For Crankshaft)[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# |
90250-03095 |
from US $0.55 |
||
|
13471C
|
13471C
90119-12345 Bolt(For Crankshaft Pulley Set)[08.1999 - 12.2001] 1NZFE,2NZFE..NCP1# |
90119-12345 |
US $3.84 |
||
