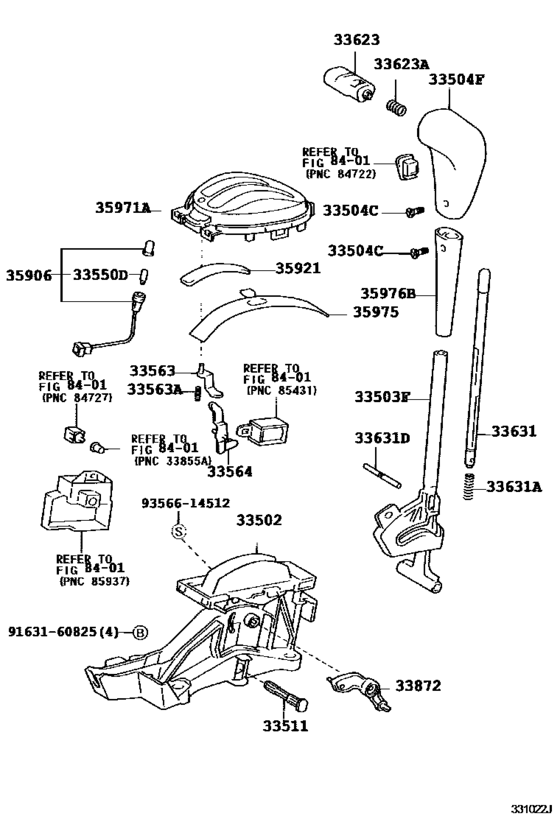

Shift Lever & Retainer ([01.1999 - 12.2001] (9901-0112)4FC) Diagram Toyota VITZ
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- NCP15
- grade
- CLA
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- From
- 09.1999
- To
- 12.2002
- Gear Shift Type
- 4FC
- No.of Doors
- 3D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33502
|
33502
33521-52011 Plate Sub-Assy, Shift Lever[01.1999 - 12.2001] NCP1#,SCP10..4FC |
33521-52011 |
US $77.17 |
||
|
33503F
|
33503F
33055-52010 Lever Sub-Assy, Shift(For Floor Shift)[01.1999 - 12.2001] NCP1#,SCP10..4FC |
33055-52010 |
US $39.89 |
||
|
33504C
|
33504C
90159-40221 Screw (For Shift Lever Knob Setting)[01.1999 - 12.2001] NCP1#,SCP10..4FC |
90159-40221 |
from US $1.05 |
||
|
33504F
|
33504F
33542-52010-B0 Knob Sub-Assy, Shift Lever[01.1999 - 12.2001] NCP10,15,SCP10..4FC..(B,CLA,F,U) BLUE GRAY,TRIM1# |
33542-52010-B0 |
US $72.80 |
||
|
33504F
|
33504F
33542-52010-B4 Knob Sub-Assy, Shift Lever[12.2001 - 12.2002] NCP10,13..4FC..RS DK.GRAY,TRIM9#; NCP10,15,SCP10..4FC..(B,CLA,F,U) DK.GRAY,TRIM1# |
33542-52010-B4 |
US $76.35 |
||
|
33511
|
33511
33511-16060 Shaft, Control (For Floor Shift)[01.1999 - 12.2001] NCP1#,SCP10..4FC |
33511-16060 |
US $8.59 |
||
|
33550D
|
33550D
90981-11014 Bulb, Position Indicator Lamp[01.1999 - 12.2001] NCP1#,SCP10..4FC １４Ｖ １．４Ｗ |
90981-11014 |
from US $1.92 |
||
|
33563
|
33563
33563-52010 Button, Shift Lock Release[01.1999 - 12.2001] NCP1#,SCP10..4FC |
33563-52010 |
US $3.93 |
||
|
33563
|
33563
33563-52030 Button, Shift Lock Release[12.2001 - 12.2002] NCP1#,SCP10..4FC |
33563-52030 |
US $2.48 |
||
|
33563A
|
33563A
90501-05055 Spring, Compression (For Shift Lock Release Button)[01.1999 - 12.2001] NCP1#,SCP10..4FC |
90501-05055 |
US $1.16 |
||
|
33564
|
33564
33564-52010 Link, Shift Lock Release, No.1[01.1999 - 12.2001] NCP1#,SCP10..4FC |
33564-52010 |
US $2.48 |
||
|
33623
|
33623
33623-52010-B0 Button, Shift Lever Knob[01.1999 - 12.2001] NCP10,15,SCP10..4FC..(B,CLA,F,U) BLUE GRAY,TRIM1# |
33623-52010-B0 |
US $19.36 |
||
|
33623
|
33623
33623-52040-B1
Button, Shift Lever Knob
[12.2001 - 12.2002] NCP10,13..4FC..RS ｱﾘ(ﾉﾌﾞ=ﾒﾂｷ),DK.GRAY,TRIM9#; NCP10,15,SCP10..4FC..(CLA,U) ｱﾘ(ﾉﾌﾞ=ﾒﾂｷ),DK.GRAY,TRIM1#; NCP15,SCP10..4FC..F ｱﾘ(ﾉﾌﾞ=ﾒﾂｷ),DK.GRAY,TRIM1# |
33623-52040-B1 |
— | ||
|
33623A
|
33623A
90501-06082 Spring, Compression (For Shift Lever Knob Button)[01.1999 - 12.2001] NCP1#,SCP10..4FC |
90501-06082 |
US $0.87 |
||
|
33631
|
33631
33631-52010 Rod, Detent[01.1999 - 12.2001] NCP1#,SCP10..4FC |
33631-52010 |
US $13.10 |
||
|
33631A
|
33631A
90501-09105 Spring, Compression (For Detent Rod)[01.1999 - 12.2001] NCP1#,SCP10..4FC |
90501-09105 |
US $1.31 |
||
|
33631D
|
33631D
33632-52010 Pin, Grooved (For Detent Rod)[01.1999 - 12.2001] NCP1#,SCP10..4FC |
33632-52010 |
US $2.33 |
||
|
33872
|
33872
33872-52010 Link, Shift Lock Release, No.2[01.1999 - 12.2001] NCP1#,SCP10..4FC |
33872-52010 |
US $5.82 |
||
|
35906
|
35906
35906-52010 Wire Sub-Assy, Indicator Lamp[01.1999 - 12.2001] NCP1#,SCP10..4FC |
35906-52010 |
US $10.63 |
||
|
35921
|
35921
35921-52010 Plate, Control Position Indicator[01.1999 - 12.2001] NCP1#,SCP10..4FC |
35921-52010 |
US $18.85 |
||
|
35971A
|
35971A
35971-52050 Housing, Position Indicator, Upper[09.1999 - 12.2001] NCP10,15..4FC..CLA |
35971-52050 |
US $20.09 |
||
|
35971A
|
35971A
35971-52130 Housing, Position Indicator, Upper[12.2001 - 12.2002] NCP10,15..4FC..CLA |
35971-52130 |
US $20.09 |
||
|
35975
|
35975
35975-52010
Cover, Slide (For Position Indicator)
[01.1999 - 12.2001] NCP1#,SCP10..4FC |
35975-52010 |
— | ||
|
35975
|
35975
35975-52030 Cover, Slide (For Position Indicator)[12.2001 - 12.2002] NCP1#,SCP10..4FC |
35975-52030 |
US $6.81 |
||
|
35976B
|
35976B
35976-52010-B0 Cover, Shift Lever Knob (For Floor Shift)[01.1999 - 12.2001] NCP10,15,SCP10..4FC..(B,CLA,F,U) BLUE GRAY,TRIM1# |
35976-52010-B0 |
US $59.55 |
||
|
35976B
|
35976B
35976-52010-B4 Cover, Shift Lever Knob (For Floor Shift)[12.2001 - 12.2002] NCP10,13..4FC..RS DK.GRAY,TRIM9#; NCP10,15,SCP10..4FC..(B,CLA,F,U) DK.GRAY,TRIM1# |
35976-52010-B4 |
US $62.38 |
||
|
9163160825
|
9163160825
91631-60825 BOLT WWASHER |
91631-60825 |
from US $0.80 |
||
|
9356614512
|
9356614512
93566-14512
SCREW
|
93566-14512 |
— | ||
| replacement | |||||
|
9356614512
|
9356614512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
