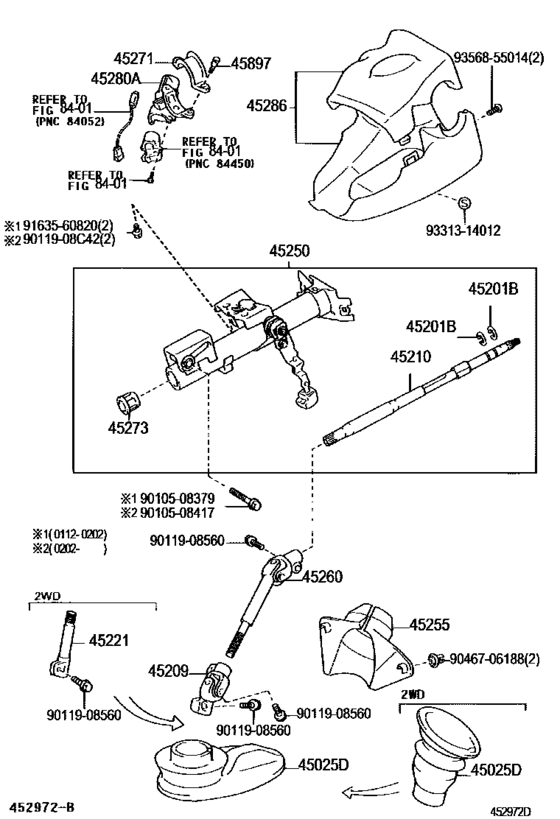

Steering Column & Shaft ([12.2001 - ] (0112- )NCP1#) Diagram Toyota VITZ
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- NCP15
- grade
- CLA
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- From
- 09.1999
- To
- 12.2002
- Gear Shift Type
- 4FC
- No.of Doors
- 3D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-52050 Cover Sub-Assy, Steering Column Hole, No.1[08.1999 - 12.2001] NCP15 |
45025-52050 |
US $15.29 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[01.1999 - 12.2001] NCP1#,SCP10 厚さ＝１．２０,下側 |
90520-17042 |
from US $0.86 |
||
|
45201B
|
45201B
90520-17269 Ring, Shaft Snap(For Steering Main Shaft)[01.1999 - 12.2001] NCP1#,SCP10 厚さ＝１．２０,上側 |
90520-17269 |
US $1.92 |
||
|
45209
|
45209
45209-52020 Yoke Sub-Assy, Steering Sliding[01.1999 - 12.2001] NCP1#,SCP10 |
45209-52020 |
US $100.64 |
||
|
45210
|
45210
45210-52010 Shaft Assy, Steering Main[01.1999 - 12.2001] NCP1#,SCP10 |
45210-52010 |
US $192.19 |
||
|
45250
|
45250
45250-52010 Column Assy, Steering[12.2001 - 12.2002] NCP1#,SCP10 |
45250-52010 |
US $272.27 |
||
|
45255
|
45255
45255-52030 Plate, Steering Column Hole Cover[08.1999 - 12.2001] NCP15 |
45255-52030 |
US $14.12 |
||
|
45260
|
45260
45260-52020 Shaft Assy, Steering Intermediate, No.2[08.1999 - 12.2001] NCP15 |
45260-52020 |
US $136.86 |
||
|
45271
|
45271
45271-16020 Clamp, Steering Column, Upper[01.1999 - 12.2001] NCP1#,SCP10 |
45271-16020 |
US $8.32 |
||
|
45273
|
45273
45273-33030 Bush, Steering Main Shaft[01.1999 - 12.2001] NCP1#,SCP10 |
45273-33030 |
from US $8.91 |
||
|
45280A
|
45280A
45280-52030 Bracket Assy, Steering Column, Upper[01.1999 - 12.2001] NCP1#,SCP10..4FC |
45280-52030 |
US $144.14 |
||
|
45286
|
45286
45286-52900-B0 Cover, Steering Column[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
45286-52900-B0 |
US $52.42 |
||
| replacement | |||||
|
45286
|
45286
45286-52900-B3 Cover, Steering Column[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
45286-52900-B3 |
US $42.46 |
||
|
45286
|
45286
45286-52900-B2 Cover, Steering Column[12.2001 - 12.2002] NCP15,SCP10..B,F;NCP15..5D..4FC..(CLA,U) SHADOW GRAY,TRIM1#; NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
45286-52900-B2 |
US $52.42 |
||
| replacement | |||||
|
45286
|
45286
45286-52900-B3 Cover, Steering Column[12.2001 - 12.2002] NCP15,SCP10..B,F;NCP15..5D..4FC..(CLA,U) SHADOW GRAY,TRIM1#; NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
45286-52900-B3 |
US $42.46 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[01.1999 - 12.2001] NCP1#,SCP10 |
45897-12020 |
from US $2.81 |
||
|
9011908C42
|
9011908C42
90119-08C42 New Genuine Part |
90119-08C42 |
US $1.28 |
||
|
9010508379
|
9010508379
90105-08379 New Genuine Part |
90105-08379 |
US $1.75 |
||
|
9010508417
|
9010508417
90105-08417 New Genuine Part |
90105-08417 |
US $1.46 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
US $2.56 |
||
|
9163560820
|
9163560820
91635-60820 BOLTWWASHER |
91635-60820 |
US $1.75 |
||
| replacement | |||||
|
9163560820
|
9163560820
91631-B0818 BOLTWWASHER |
91631-B0818 |
US $2.08 |
||
|
9331314012
|
9331314012
93313-14012 SCREW |
93313-14012 |
US $0.96 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
