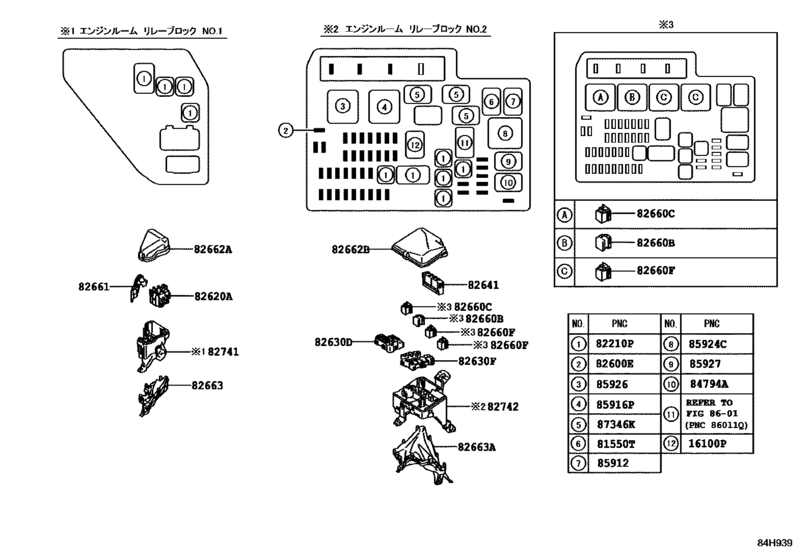

Switch & Relay & Computer ([01.2017 - ] ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ (1701- )NHP130) Diagram Toyota VITZ
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- NHP130
- grade
- U
- ENGINE
- 1NZFXE
- TRANSMISSION
- CVT
- From
- 01.2017
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100P
|
16100P
90987-02027 Relay[01.2017 -] 1NZFXE..NHP130..CBU |
90987-02027 |
from US $44.54 |
||
|
81550T
|
81550T
90987-02027 Relay[01.2017 -] NHP130..CBU |
90987-02027 |
from US $44.54 |
||
|
82210P
|
82210P
90982-08246 Fusible Link[01.2017 -] NHP130..CBU １００Ａ，オス端子 |
90982-08246 |
from US $7.04 |
||
|
82210P
|
82210P
90982-08294 Fusible Link[01.2017 -] KSP130,NHP130,NSP13#..CBU ４０Ａ，メス端子 |
90982-08294 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[01.2017 -] NHP130..CBU ３０Ａ，メス端子 |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[01.2017 -] KSP130,NHP130,NSP13#..CBU ５０Ａ，メス端子 |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08300 Fusible Link[01.2017 -] KSP130,NHP130,NSP13#..CBU ５０Ａ−３０Ａ−３０Ａ，メス端子 |
90982-08300 |
from US $6.24 |
||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[01.2017 -] KSP130,NHP130,NSP13#..CBU ５Ａ，ミニ ヒューズ |
90982-09019 |
from US $0.84 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[01.2017 -] KSP130,NHP130,NSP13#..CBU ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.92 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[01.2017 -] KSP130,NHP130,NSP13#..CBU １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[01.2017 -] KSP130,NHP130,NSP13#..CBU １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[01.2017 -] KSP130,NHP130,NSP13#..CBU ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[01.2017 -] KSP130,NHP130,NSP13#..CBU ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.92 |
||
|
82620A
|
82620A
82620-52091 Block Assy, Fusible Link[01.2017 -] NHP130..CBU |
82620-52091 |
US $37.09 |
||
|
82630D
|
82630D
82631-52050 Holder, Fuse[01.2017 -] NHP130..CBU |
82631-52050 |
US $28.10 |
||
|
82630F
|
82630F
82631-52060 Holder, Fuse[01.2017 -] NHP130..CBU |
82631-52060 |
US $29.12 |
||
|
82641
|
82641
82641-47020 Relay, Integration No.1[01.2017 -] NHP130..CBU |
82641-47020 |
from US $79.92 |
||
|
82660B
|
82660B
82660-0H070 Block Assy, Relay[01.2017 -] KSP130,NHP130,NSP13#..CBU |
82660-0H070 |
US $6.99 |
||
|
82660C
|
82660C
82660-26270 Block Assy, Relay, Engine Room[01.2017 -] NHP130..CBU |
82660-26270 |
US $8.48 |
||
|
82660F
|
82660F
82660-52010 Block Assy, Relay[01.2017 -] NHP130..CBU |
82660-52010 |
US $7.13 |
||
|
82661
|
82661
82661-52030 Cover, Relay Block, No.1[01.2017 -] NHP130..CBU |
82661-52030 |
US $7.68 |
||
|
82662A
|
82662A
82662-52820 Cover, Relay Block, Upper, No.1[01.2017 -] NHP130..CBU |
82662-52820 |
US $13.98 |
||
|
82662B
|
82662B
82662-52810 Cover, Relay Block, Upper, No.2[01.2017 -] NHP130..CBU |
82662-52810 |
US $23.41 |
||
|
82663
|
82663
82663-52100 Cover, Relay Block, Lower[01.2017 -] NHP130..CBU |
82663-52100 |
US $18.09 |
||
|
82663A
|
82663A
82663-52110 Cover, Relay Block, Lower, No.2[01.2017 -] NHP130..CBU |
82663-52110 |
US $28.88 |
||
|
82741
|
82741
82741-52090 Block, Engine Room Relay[01.2017 -] NHP130..CBU |
82741-52090 |
US $37.70 |
||
|
82742
|
82742
82741-52100 Block, Engine Room Relay[01.2017 -] NHP130..CBU |
82741-52100 |
US $56.54 |
||
|
84794A
|
84794A
90987-02027 Relay[01.2017 -] NHP130..CBU 寒冷地仕様 |
90987-02027 |
from US $44.54 |
||
|
85912
|
85912
90987-02027 Relay[01.2017 -] KSP130,NHP130,NSP13#..CBU |
90987-02027 |
from US $44.54 |
||
|
85916P
|
85916P
90987-02025 Relay[01.2017 -] NHP130..CBU;KSP130,NSP13#..(JEWL,U)..CBU; KSP130,NSP13#..F..CBU Ｔｏｙｏｔａ Ｓａｆｅｔｙ Ｓｅｎｓｅ−有り; KSP130,NSP13#..F..CBU Ｔｏｙｏｔａ Ｓａｆｅｔｙ Ｓｅｎｓｅ−有り＆ヘッドランプ−Ｂｉ−Ｂｅａｍ ＬＥＤ （メッキ ＋ 塗装）; KSP130,NSP13#..F..CBU ヘッドランプ−Ｂｉ−Ｂｅａｍ ＬＥＤ（メッキ ＋ 塗装） |
90987-02025 |
from US $44.54 |
||
|
85924C
|
85924C
90987-02025 Relay[01.2017 -] NHP130..CBU |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-04010 Relay Assy (For Heater Blower Motor)[01.2017 -] NHP130..CBU;KSP130,NSP13#..(JEWL,U)..CBU; KSP130,NSP13#..F..CBU Ｔｏｙｏｔａ Ｓａｆｅｔｙ Ｓｅｎｓｅ−有り; KSP130,NSP13#..F..CBU Ｔｏｙｏｔａ Ｓａｆｅｔｙ Ｓｅｎｓｅ−有り＆ヘッドランプ−Ｂｉ−Ｂｅａｍ ＬＥＤ （メッキ ＋ 塗装）; KSP130,NSP13#..F..CBU ヘッドランプ−Ｂｉ−Ｂｅａｍ ＬＥＤ（メッキ ＋ 塗装） |
90987-04010 |
from US $42.71 |
||
|
85927
|
85927
90987-02027 Relay[01.2017 -] KSP130,NHP130,NSP13#..CBU |
90987-02027 |
from US $44.54 |
||
|
87346K
|
87346K
90987-02027 Relay[01.2017 -] NHP130..CBU 寒冷地仕様 |
90987-02027 |
from US $44.54 |
