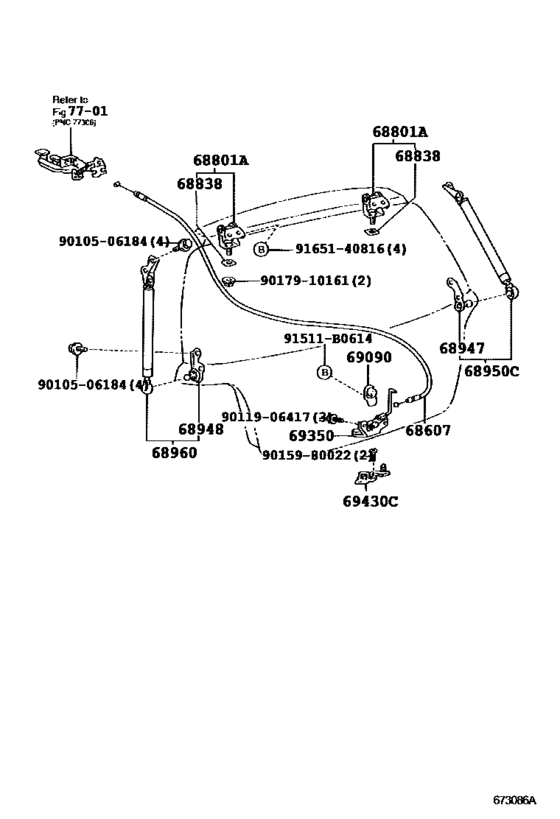

Back Door Lock & Handle ([12.2002 - ] (0212- )B) Diagram Toyota VITZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP10
- grade
- B
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 01.1999
- To
- 01.2005
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68607
|
68607
64607-52010 Cable Sub-Assy, Back Door Lock Control[01.1999 - 12.2001] NCP1#,SCP10 |
64607-52010 |
from US $21.84 |
||
|
68801A
|
68801A
68801-52010 Hinge Sub-Assy, Back Door, Upper Rh[01.1999 - 12.2001] NCP1#,SCP10 |
68801-52010 |
US $20.44 |
||
|
68838
|
68838
68838-10020 Pad, Back Door Hinge[01.1999 - 12.2001] SCP10 |
68838-10020 |
US $2.91 |
||
|
68838
|
68838
68838-52010 Pad, Back Door Hinge[12.2001 - 12.2002] NCP1#,SCP10 厚さ＝０．５ |
68838-52010 |
US $2.91 |
||
|
68947
|
68947
68947-52010 Bracket, Back Door Damper Stay, Lower Rh[01.1999 - 12.2001] NCP1#,SCP10 |
68947-52010 |
US $4.54 |
||
|
68948
|
68948
68948-52010 Bracket, Back Door Damper Stay, Lower Lh[01.1999 - 12.2001] NCP1#,SCP10 |
68948-52010 |
US $4.54 |
||
|
68950C
|
68950C
68950-59015 Stay Assy, Back Door, Rh[01.1999 - 11.1999] SCP10..B |
68950-59015 |
US $138.32 |
||
| replacement | |||||
|
68950C
|
68950C
68950-59055
Stay Assy, Back Door, Rh
[01.1999 - 11.1999] SCP10..B |
68950-59055 |
— | ||
|
68950C
|
68950C
68950-59025 Stay Assy, Back Door, Rh[01.1999 - 11.1999] SCP10 ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
68950-59025 |
US $138.32 |
||
| replacement | |||||
|
68950C
|
68950C
68950-59066 Stay Assy, Back Door, Rh[01.1999 - 11.1999] SCP10 ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
68950-59066 |
US $139.12 |
||
|
68950C
|
68950C
68950-59055
Stay Assy, Back Door, Rh
[11.1999 - 12.2001] SCP10..B |
68950-59055 |
— | ||
|
68950C
|
68950C
68950-59056 Stay Assy, Back Door, Rh[06.2002 - 12.2002] SCP10..B |
68950-59056 |
US $126.67 |
||
|
68950C
|
68950C
68950-59065 Stay Assy, Back Door, Rh[11.1999 - 12.2001] NCP10,15..CLA,F,U; SCP10..F,U;NCP10,13..RS; SCP10..B ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
68950-59065 |
US $138.32 |
||
| replacement | |||||
|
68950C
|
68950C
68950-59066 Stay Assy, Back Door, Rh[11.1999 - 12.2001] NCP10,15..CLA,F,U; SCP10..F,U;NCP10,13..RS; SCP10..B ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
68950-59066 |
US $139.12 |
||
|
68950C
|
68950C
68950-59066 Stay Assy, Back Door, Rh[06.2002 - 12.2002] NCP1#; SCP10..F,U; SCP10..B ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
68950-59066 |
US $139.12 |
||
|
68960
|
68960
68960-59015 Stay Assy, Back Door, Lh[01.1999 - 12.2001] SCP10..B |
68960-59015 |
US $83.52 |
||
|
68960
|
68960
68960-59016 Stay Assy, Back Door, Lh[06.2002 - 12.2002] SCP10..B |
68960-59016 |
US $126.67 |
||
|
68960
|
68960
68960-59025 Stay Assy, Back Door, Lh[01.1999 - 12.2001] SCP10..F,U; SCP10..B ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
68960-59025 |
US $138.32 |
||
| replacement | |||||
|
68960
|
68960
68960-59026 Stay Assy, Back Door, Lh[01.1999 - 12.2001] SCP10..F,U; SCP10..B ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
68960-59026 |
US $139.12 |
||
|
68960
|
68960
68960-59026 Stay Assy, Back Door, Lh[06.2002 - 12.2002] NCP1#; SCP10..F,U; SCP10..B ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
68960-59026 |
US $139.12 |
||
|
69090
|
69090
69090-52010 Handle Assy, Back Door, Outside[01.1999 - 12.2001] NCP1#,SCP10 |
69090-52010 |
US $16.16 |
||
| replacement | |||||
|
69090
|
69090
69090-52040 Handle Assy, Back Door, Outside[01.1999 - 12.2001] NCP1#,SCP10 |
69090-52040 |
US $17.06 |
||
|
69090
|
69090
69090-52040 Handle Assy, Back Door, Outside[12.2001 - 12.2002] NCP1#,SCP10 |
69090-52040 |
US $17.06 |
||
|
69350
|
69350
69350-52010 Lock Assy, Back Door[01.1999 - 12.2001] NCP1#,SCP10 |
69350-52010 |
US $78.62 |
||
|
69430C
|
69430C
69430-52010 Striker Assy, Back Door Lock[01.1999 - 12.2001] NCP1#,SCP10 |
69430-52010 |
US $34.65 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9010506184
|
9010506184
90105-06184 BOLT WASHER BASED |
90105-06184 |
US $1.12 |
||
|
9011906417
|
9011906417
90119-06417
New Genuine Part
|
90119-06417 |
— | ||
| replacement | |||||
|
9011906417
|
9011906417
90119-06297 BOLT |
90119-06297 |
US $1.92 |
||
|
9015980022
|
9015980022
90159-80022 New Genuine Part |
90159-80022 |
US $1.60 |
||
|
9017910161
|
9017910161
90179-10161 Nut (For Front Wiper Arm Setting) |
90179-10161 |
US $1.16 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.99 |
||
