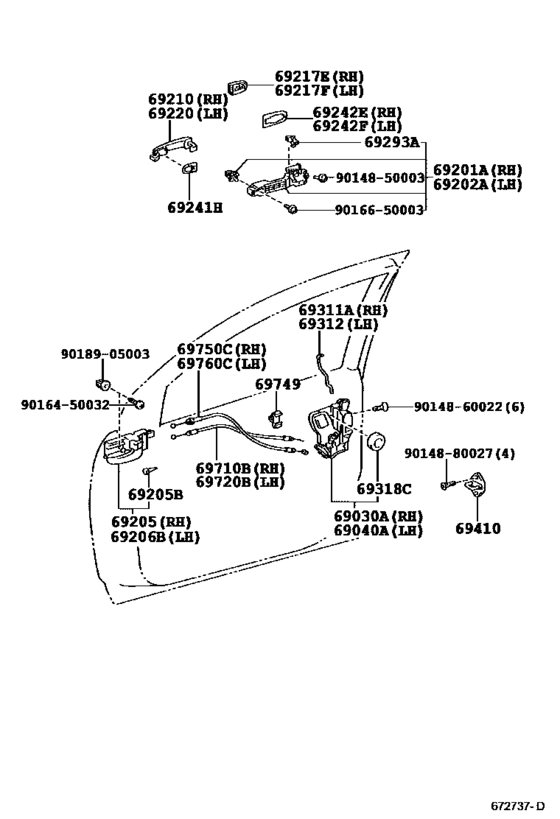

Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402)) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69030A
|
69030A
69030-01031 Lock Assy, Front Door W/motor, Rh[05.2002 - 02.2004] ZZE13# |
69030-01031 |
US $208.21 |
||
|
69040A
|
69040A
69040-01031 Lock Assy, Front Door W/motor, Lh[05.2002 - 02.2004] ZZE13# |
69040-01031 |
US $189.28 |
||
|
69201A
|
69201A
69201-AA010 Frame Sub-Assy, Front Door Outside Handle, Rh[05.2002 - 02.2004] ZZE13# |
69201-AA010 |
US $74.26 |
||
| replacement | |||||
|
69201A
|
69201A
69201-AA011 Frame Sub-Assy, Front Door Outside Handle, Rh[05.2002 - 02.2004] ZZE13# |
69201-AA011 |
US $74.26 |
||
|
69202A
|
69202A
69202-AA010 Frame Sub-Assy, Front Door Outside Handle, Lh[05.2002 - 02.2004] ZZE13# |
69202-AA010 |
US $74.26 |
||
| replacement | |||||
|
69202A
|
69202A
69202-AA011 Frame Sub-Assy, Front Door Outside Handle, Lh[05.2002 - 02.2004] ZZE13# |
69202-AA011 |
US $74.26 |
||
|
69205
|
69205
69205-02100-B1
Handle Sub-Assy, Front Door Inside, Rh
[05.2002 - 02.2004] ZZE13# DK.GRAY,TRIM13,14 |
69205-02100-B1 |
— | ||
|
69205B
|
69205B
90080-54005
Cushion(For Front Door Inside Handle)
[05.2002 - 02.2004] ZZE13# |
90080-54005 |
— | ||
|
69206B
|
69206B
69206-02100-B1 Handle Sub-Assy, Front Door Inside, Lh[05.2002 - 02.2004] ZZE13# DK.GRAY,TRIM13,14 |
69206-02100-B1 |
US $25.77 |
||
|
69210
|
69210
69211-AA020-A0 Handle Assy, Front Door, Outside Rh[05.2002 - 02.2004] ZZE137 SUPER WHITE 2,040 |
69211-AA020-A0 |
US $31.74 |
||
|
69210
|
69210
69211-AA020-B0 Handle Assy, Front Door, Outside Rh[01.2003 - 02.2004] ZZE137 SILVER ME.,1C8 |
69211-AA020-B0 |
US $45.86 |
||
|
69210
|
69210
69211-AA020-B2 Handle Assy, Front Door, Outside Rh[05.2003 - 02.2004] ZZE13# CHARCOAL GRAY ME.,1E6 |
69211-AA020-B2 |
US $45.86 |
||
|
69210
|
69210
69211-AA020-C1 Handle Assy, Front Door, Outside Rh[05.2002 - 02.2004] ZZE137 BLACK MC.,209 |
69211-AA020-C1 |
US $38 |
||
|
69210
|
69210
69211-AA020-E1 Handle Assy, Front Door, Outside Rh[05.2003 - 02.2004] ZZE13# ORANGE ME.,4R9 |
69211-AA020-E1 |
US $45.86 |
||
|
69210
|
69210
69211-AA020-J2 Handle Assy, Front Door, Outside Rh[05.2003 - 02.2004] ZZE13# DK.BLUE M.M.,8P4 |
69211-AA020-J2 |
US $45.86 |
||
|
69217E
|
69217E
69227-AA010-A0 Cover, Front Door Outside Handle, Rh[05.2002 - 02.2004] ZZE137 SUPER WHITE 2,040 |
69227-AA010-A0 |
US $6.41 |
||
| replacement | |||||
|
69217E
|
69217E
69217-33010-A0 Cover, Front Door Outside Handle, Rh[05.2002 - 02.2004] ZZE137 SUPER WHITE 2,040 |
69217-33010-A0 |
US $5.53 |
||
|
69217E
|
69217E
69227-AA010-B0 Cover, Front Door Outside Handle, Rh[01.2003 - 02.2004] ZZE137 SILVER ME.,1C8 |
69227-AA010-B0 |
US $6.41 |
||
|
69217E
|
69217E
69227-AA010-B2 Cover, Front Door Outside Handle, Rh[05.2003 - 02.2004] ZZE13# CHARCOAL GRAY ME.,1E6 |
69227-AA010-B2 |
US $6.84 |
||
|
69217E
|
69217E
69227-AA010-C1 Cover, Front Door Outside Handle, Rh[05.2002 - 02.2004] ZZE137 BLACK MC.,209 |
69227-AA010-C1 |
US $6.84 |
||
|
69217E
|
69217E
69227-AA010-E1 Cover, Front Door Outside Handle, Rh[05.2003 - 02.2004] ZZE13# ORANGE ME.,4R9 |
69227-AA010-E1 |
US $6.84 |
||
|
69217E
|
69217E
69227-AA010-J2 Cover, Front Door Outside Handle, Rh[05.2003 - 02.2004] ZZE13# DK.BLUE M.M.,8P4 |
69227-AA010-J2 |
US $6.41 |
||
|
69217F
|
69217F
69227-AA010-A0 Cover, Front Door Outside Handle, Rh[05.2002 - 02.2004] ZZE137 SUPER WHITE 2,040 |
69227-AA010-A0 |
US $6.41 |
||
| replacement | |||||
|
69217F
|
69217F
69217-33010-A0 Cover, Front Door Outside Handle, Rh[05.2002 - 02.2004] ZZE137 SUPER WHITE 2,040 |
69217-33010-A0 |
US $5.53 |
||
|
69217F
|
69217F
69227-AA010-B0 Cover, Front Door Outside Handle, Rh[01.2003 - 02.2004] ZZE137 SILVER ME.,1C8 |
69227-AA010-B0 |
US $6.41 |
||
|
69217F
|
69217F
69227-AA010-B2 Cover, Front Door Outside Handle, Rh[05.2003 - 02.2004] ZZE13# CHARCOAL GRAY ME.,1E6 |
69227-AA010-B2 |
US $6.84 |
||
|
69217F
|
69217F
69227-AA010-C1 Cover, Front Door Outside Handle, Rh[05.2002 - 02.2004] ZZE137 BLACK MC.,209 |
69227-AA010-C1 |
US $6.84 |
||
|
69217F
|
69217F
69227-AA010-E1 Cover, Front Door Outside Handle, Rh[05.2003 - 02.2004] ZZE13# ORANGE ME.,4R9 |
69227-AA010-E1 |
US $6.84 |
||
|
69217F
|
69217F
69227-AA010-J2 Cover, Front Door Outside Handle, Rh[05.2003 - 02.2004] ZZE13# DK.BLUE M.M.,8P4 |
69227-AA010-J2 |
US $6.41 |
||
|
69220
|
69220
69211-AA020-A0 Handle Assy, Front Door, Outside Rh[05.2002 - 02.2004] ZZE137 SUPER WHITE 2,040 |
69211-AA020-A0 |
US $31.74 |
||
|
69220
|
69220
69211-AA020-B0 Handle Assy, Front Door, Outside Rh[01.2003 - 02.2004] ZZE137 SILVER ME.,1C8 |
69211-AA020-B0 |
US $45.86 |
||
|
69220
|
69220
69211-AA020-B2 Handle Assy, Front Door, Outside Rh[05.2003 - 02.2004] ZZE13# CHARCOAL GRAY ME.,1E6 |
69211-AA020-B2 |
US $45.86 |
||
|
69220
|
69220
69211-AA020-C1 Handle Assy, Front Door, Outside Rh[05.2002 - 02.2004] ZZE137 BLACK MC.,209 |
69211-AA020-C1 |
US $38 |
||
|
69220
|
69220
69211-AA020-E1 Handle Assy, Front Door, Outside Rh[05.2003 - 02.2004] ZZE13# ORANGE ME.,4R9 |
69211-AA020-E1 |
US $45.86 |
||
|
69220
|
69220
69211-AA020-J2 Handle Assy, Front Door, Outside Rh[05.2003 - 02.2004] ZZE13# DK.BLUE M.M.,8P4 |
69211-AA020-J2 |
US $45.86 |
||
|
69241H
|
69241H
69241-AA020 Pad, Front Door Outside Handle, Front[05.2002 - 02.2004] ZZE13# |
69241-AA020 |
US $5.97 |
||
|
69242E
|
69242E
69238-AA010
Pad, Front Door Outside Handle, Rear
[05.2002 - 02.2004] ZZE13# |
69238-AA010 |
— | ||
|
69242F
|
69242F
69238-AA010
Pad, Front Door Outside Handle, Rear
[05.2002 - 02.2004] ZZE13# |
69238-AA010 |
— | ||
|
69293A
|
69293A
69293-33010 Snap, Front Door Outside Handle[05.2002 - 02.2004] ZZE13# 右側 |
69293-33010 |
US $1.28 |
||
|
69293A
|
69293A
69293-33020 Snap, Front Door Outside Handle[05.2002 - 02.2004] ZZE13# 左側 |
69293-33020 |
US $1.16 |
||
|
69311A
|
69311A
69311-01010 Rod, Front Door Lock Open, Rh[05.2002 - 02.2004] ZZE13# |
69311-01010 |
US $9.32 |
||
|
69312
|
69312
69312-01010 Rod, Front Door Lock Open, Lh[05.2002 - 02.2004] ZZE13# |
69312-01010 |
US $9.46 |
||
|
69318C
|
69318C
69318-AA010 Seal, Door Lock Wiring Harness[05.2002 - 02.2004] ZZE13# |
69318-AA010 |
US $1.60 |
||
|
69410
|
69410
69410-02030 Plate Assy, Front Door Lock Striker[05.2002 - 02.2004] ZZE13# |
69410-02030 |
US $10.19 |
||
|
69710B
|
69710B
69710-01010 Cable Assy, Front Door Lock Remote Control, Rh[05.2002 - 02.2004] ZZE13# |
69710-01010 |
US $21.84 |
||
|
69720B
|
69720B
69710-01010 Cable Assy, Front Door Lock Remote Control, Rh[05.2002 - 02.2004] ZZE13# |
69710-01010 |
US $21.84 |
||
|
69749
|
69749
69749-32040 Clamp, Front Door Lock Link[05.2002 - 02.2004] ZZE13# |
69749-32040 |
US $3.36 |
||
|
69750C
|
69750C
69750-01010
Cable Assy, Front Door Inside Locking, Rh
[05.2002 - 02.2004] ZZE13# |
69750-01010 |
— | ||
|
69760C
|
69760C
69760-01010 Cable Assy, Front Door Inside Locking Lh[05.2002 - 02.2004] ZZE13# |
69760-01010 |
US $22.57 |
||
|
9014850003
|
9014850003
90148-50003 Screw Hex Lobular |
90148-50003 |
from US $0.68 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9016450032
|
9016450032
90164-50032 Screw |
90164-50032 |
US $1.44 |
||
|
9016650003
|
9016650003
90166-50003 New Genuine Part |
90166-50003 |
US $0.73 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.15 |
||
