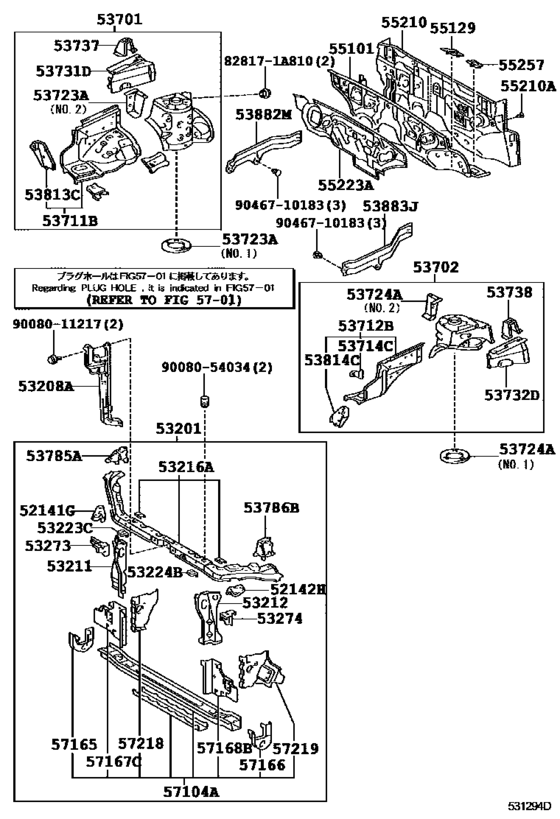

Front Fender Apron & Dash Panel ([05.2002 - ] (0205- )) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52141G
|
52141G
52141-01020 Stay, Front Bumper, Rh[05.2002 -] ZZE13# |
52141-01020 |
US $20.68 |
||
|
52142H
|
52142H
52142-01020 Stay, Front Bumper, Lh[05.2002 -] ZZE13# |
52142-01020 |
US $20.68 |
||
|
53201
|
53201
53201-01070 Support Sub-Assy, Radiator[05.2002 - 02.2004] ZZE13# |
53201-01070 |
US $513.97 |
||
|
53208A
|
53208A
53208-01030 Support Sub-Assy, Hood Lock[05.2002 - 02.2004] ZZE13# |
53208-01030 |
US $41.64 |
||
|
53211
|
53211
53211-01020 Support, Radiator, Rh[05.2002 -] ZZE13# |
53211-01020 |
US $40.91 |
||
|
53212
|
53212
53212-01020 Support, Radiator, Lh[05.2002 -] ZZE13# |
53212-01020 |
US $40.91 |
||
|
53216A
|
53216A
53216-01900 Support, Radiator, Upper[05.2002 -] ZZE13# |
53216-01900 |
US $80.08 |
||
|
53223C
|
53223C
53223-01010 Bracket, Radiator Grille Mounting, Rh[05.2002 -] ZZE13# |
53223-01010 |
US $5.97 |
||
|
53224B
|
53224B
53223-01010 Bracket, Radiator Grille Mounting, Rh[05.2002 -] ZZE13# |
53223-01010 |
US $5.97 |
||
|
53273
|
53273
53273-01020 Bracket, Front Bumper Arm Mounting, Rh[05.2002 -] ZZE13# |
53273-01020 |
US $9.90 |
||
|
53274
|
53274
53274-01020 Bracket, Front Bumper Arm Mounting, Lh[05.2002 -] ZZE13# |
53274-01020 |
US $6.84 |
||
|
53701
|
53701
53701-01030 Apron Sub-Assy, Front Fender, Rh[05.2002 - 02.2004] ZZE13# |
53701-01030 |
US $264.99 |
||
|
53702
|
53702
53702-01030 Apron Sub-Assy, Front Fender, Lh[05.2002 - 02.2004] ZZE13# |
53702-01030 |
US $264.99 |
||
|
53711B
|
53711B
53703-02902 Apron, Front Fender, Front Rh[05.2002 -] ZZE13# |
53703-02902 |
US $87.36 |
||
|
53712B
|
53712B
53704-02902 Apron, Front Fender, Front Lh[05.2002 -] ZZE13# |
53704-02902 |
US $87.36 |
||
|
53714C
|
53714C
53714-02030 Extension, Front Fender Apron, Front Lh[05.2002 -] ZZE13# |
53714-02030 |
US $4.95 |
||
|
53723A
|
53723A
53723-01010 Reinforcement, Front Spring Support, Rh[05.2002 - 01.2003] ZZE13# ＮＯ．１ |
53723-01010 |
US $28.25 |
||
| replacement | |||||
|
53723A
|
53723A
53723-01011 Reinforcement, Front Spring Support, Rh[05.2002 - 01.2003] ZZE13# ＮＯ．１ |
53723-01011 |
US $28.39 |
||
|
53723A
|
53723A
53723-01011 Reinforcement, Front Spring Support, Rh[01.2003 - 02.2004] ZZE13# ＮＯ．１; ZZE137 Ｐ２１５／５０ＺＲ１７ ７Ｊ ＡＬ,ＮＯ．１ |
53723-01011 |
US $28.39 |
||
|
53723A
|
53723A
53723-02020 Reinforcement, Front Spring Support, Rh[05.2002 - 02.2004] ZZE13# ＮＯ．２ |
53723-02020 |
US $13.98 |
||
|
53724A
|
53724A
53723-01010 Reinforcement, Front Spring Support, Rh[05.2002 - 01.2003] ZZE13# ＮＯ．１ |
53723-01010 |
US $28.25 |
||
| replacement | |||||
|
53724A
|
53724A
53723-01011 Reinforcement, Front Spring Support, Rh[05.2002 - 01.2003] ZZE13# ＮＯ．１ |
53723-01011 |
US $28.39 |
||
|
53724A
|
53724A
53723-01011 Reinforcement, Front Spring Support, Rh[01.2003 - 02.2004] ZZE13# ＮＯ．１; ZZE137 Ｐ２１５／５０ＺＲ１７ ７Ｊ ＡＬ,ＮＯ．１ |
53723-01011 |
US $28.39 |
||
|
53724A
|
53724A
53724-02020 Reinforcement, Front Spring Support, Lh[05.2002 - 02.2004] ZZE13# ＮＯ．２ |
53724-02020 |
US $14.41 |
||
|
53731D
|
53731D
53731-02060 Member, Front Apron To Cowl Side, Upper Rh[05.2002 -] ZZE13# |
53731-02060 |
US $22.13 |
||
|
53732D
|
53732D
53732-02050 Member, Front Apron To Cowl Side, Upper Lh[05.2002 -] ZZE13# |
53732-02050 |
US $22.13 |
||
|
53737
|
53737
53737-01020 Plate, Front Apron To Cowl Side Member, Rh[05.2002 -] ZZE13# |
53737-01020 |
US $13.69 |
||
|
53738
|
53738
53738-01020 Plate, Front Apron To Cowl Side Member, Lh[05.2002 -] ZZE13# |
53738-01020 |
US $13.69 |
||
|
53785A
|
53785A
53785-01010 Gusset, Front Fender Apron, Upper Rh[05.2002 -] ZZE13# |
53785-01010 |
US $18.05 |
||
|
53786B
|
53786B
53786-01010 Gusset, Front Fender Apron, Upper Lh[05.2002 -] ZZE13# |
53786-01010 |
US $18.20 |
||
|
53813C
|
53813C
53813-01010 Extension, Front Fender, Rh[05.2002 -] ZZE13# |
53813-01010 |
US $6.99 |
||
|
53814C
|
53814C
53814-01010 Extension, Front Fender, Lh[05.2002 -] ZZE13# |
53814-01010 |
US $5.97 |
||
|
53882M
|
53882M
53882-01020 Seal, Front Fender[05.2002 - 12.2003] ZZE13# |
53882-01020 |
US $21.69 |
||
| replacement | |||||
|
53882M
|
53882M
53882-01021 Seal, Front Fender[05.2002 - 12.2003] ZZE13# |
53882-01021 |
US $21.69 |
||
|
53882M
|
53882M
53882-01021 Seal, Front Fender[12.2003 -] ZZE13# |
53882-01021 |
US $21.69 |
||
|
53883J
|
53883J
53883-01010 Seal, Front Fender, Lh[05.2002 - 12.2003] ZZE13# |
53883-01010 |
US $21.69 |
||
| replacement | |||||
|
53883J
|
53883J
53883-01011 Seal, Front Fender, Lh[05.2002 - 12.2003] ZZE13# |
53883-01011 |
US $21.69 |
||
|
53883J
|
53883J
53883-01011 Seal, Front Fender, Lh[12.2003 -] ZZE13# |
53883-01011 |
US $21.69 |
||
|
55101
|
55101
55101-01150 Panel Sub-Assy, Dash[05.2002 - 02.2004] ZZE136,137..4FC |
55101-01150 |
US $388.75 |
||
|
55129
|
55129
55129-02020 Cover, Dash Panel Hole[05.2002 -] ZZE13# 右側 |
55129-02020 |
US $9.46 |
||
|
55129
|
55129
55139-02010 Cover, Dash Panel Hole[05.2002 -] ZZE13# 左側 |
55139-02010 |
US $9.32 |
||
|
55210
|
55210
55210-01050 Insulator Assy, Dash Panel[05.2002 - 05.2003] ZZE13# |
55210-01050 |
US $334.88 |
||
| replacement | |||||
|
55210
|
55210
55210-01051
Insulator Assy, Dash Panel
[05.2002 - 05.2003] ZZE13# |
55210-01051 |
— | ||
|
55210
|
55210
55210-01051
Insulator Assy, Dash Panel
[05.2003 -] ZZE13# |
55210-01051 |
— | ||
|
55210A
|
55210A
90467-10005-B0 Clip[05.2002 - 02.2004] ZZE13# MD.CHARCOAL,TRIM13,14 |
90467-10005-B0 |
US $3.20 |
||
|
55223A
|
55223A
55223-01010 Insulator, Dash Panel, Outer[05.2002 -] ZZE13# |
55223-01010 |
US $66.10 |
||
|
55257
|
55257
55257-02020 Cover, Dash Panel Opening[05.2002 -] ZZE13# |
55257-02020 |
US $4.95 |
||
|
57104A
|
57104A
57104-02071 Member Sub-Assy, Front Cross[05.2002 - 09.2003] ZZE13# |
57104-02071 |
US $254.80 |
||
| replacement | |||||
|
57104A
|
57104A
57104-02072 Member Sub-Assy, Front Cross[05.2002 - 09.2003] ZZE13# |
57104-02072 |
US $251.89 |
||
|
57104A
|
57104A
57104-02072 Member Sub-Assy, Front Cross[09.2003 -] ZZE13# |
57104-02072 |
US $251.89 |
||
|
57165
|
57165
57165-02040 Reinforcement, Front Crossmember, Lower Rh[05.2002 -] ZZE13# |
57165-02040 |
US $10.63 |
||
|
57166
|
57166
57166-02030 Reinforcement, Front Crossmember, Lower Lh[05.2002 -] ZZE13# |
57166-02030 |
US $10.63 |
||
|
57167C
|
57167C
57167-02040 Gusset, Front Crossmember Side, Rh[05.2002 -] ZZE13# |
57167-02040 |
US $26.50 |
||
|
57168B
|
57168B
57168-02040 Gusset, Front Crossmember Side, Lh[05.2002 -] ZZE13# |
57168-02040 |
US $23.88 |
||
|
57218
|
57218
57218-02030 Gusset, Front Side Member, No.1[05.2002 - 09.2003] ZZE13# |
57218-02030 |
US $18.20 |
||
| replacement | |||||
|
57218
|
57218
57218-02031 Gusset, Front Side Member, No.1[05.2002 - 09.2003] ZZE13# |
57218-02031 |
US $18.05 |
||
|
57218
|
57218
57218-02031 Gusset, Front Side Member, No.1[09.2003 -] ZZE13# |
57218-02031 |
US $18.05 |
||
|
57219
|
57219
57219-02030 Gusset, Front Side Member, No.2[05.2002 - 09.2003] ZZE13# |
57219-02030 |
US $18.93 |
||
| replacement | |||||
|
57219
|
57219
57219-02031 Gusset, Front Side Member, No.2[05.2002 - 09.2003] ZZE13# |
57219-02031 |
US $18.93 |
||
|
57219
|
57219
57219-02031 Gusset, Front Side Member, No.2[09.2003 -] ZZE13# |
57219-02031 |
US $18.93 |
||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.52 |
||
|
9008011217
|
9008011217
90080-11217
New Genuine Part
|
90080-11217 |
— | ||
| replacement | |||||
|
9008011217
|
9008011217
90080-11173
New Genuine Part
|
90080-11173 |
— | ||
|
9008054034
|
9008054034
90080-54034 New Genuine Part |
90080-54034 |
US $4.22 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $0.86 |
||
