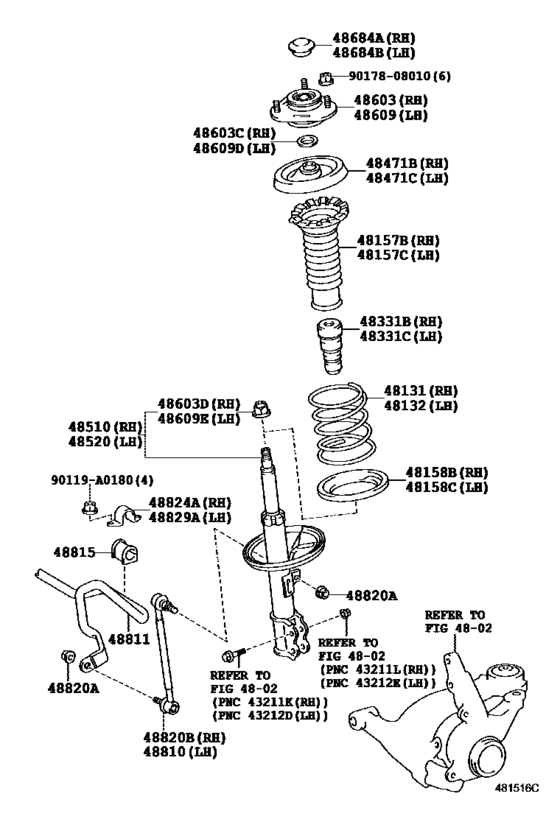

Front Spring & Shock Absorber ([05.2002 - ] (0205- )) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-AG050 Spring, Front Coil, Rh[05.2002 -] ZZE137..4FC |
48131-AG050 |
US $113.57 |
||
|
48132
|
48132
48131-AG050 Spring, Front Coil, Rh[05.2002 -] ZZE137..4FC |
48131-AG050 |
US $113.57 |
||
|
48157B
|
48157B
48157-02070
Insulator, Front Coil Spring, Upper Rh
[05.2002 -] ZZE13# |
48157-02070 |
— | ||
|
48157C
|
48157C
48157-02070
Insulator, Front Coil Spring, Upper Rh
[05.2002 -] ZZE13# |
48157-02070 |
— | ||
|
48158B
|
48158B
48158-02060
Insulator, Front Coil Spring, Lower Rh
[05.2002 -] ZZE13# |
48158-02060 |
— | ||
|
48158C
|
48158C
48158-02060
Insulator, Front Coil Spring, Lower Rh
[05.2002 -] ZZE13# |
48158-02060 |
— | ||
|
48331B
|
48331B
48331-AB010 Bumper, Front Spring, Rh[05.2002 -] ZZE13# |
48331-AB010 |
US $13.80 |
||
|
48331C
|
48331C
48331-AB010 Bumper, Front Spring, Rh[05.2002 -] ZZE13# |
48331-AB010 |
US $13.80 |
||
|
48471B
|
48471B
48044-02050
Seat, Front Coil Spring, Upper Rh
[05.2002 -] ZZE13# |
48044-02050 |
— | ||
|
48471C
|
48471C
48044-02050
Seat, Front Coil Spring, Upper Rh
[05.2002 -] ZZE13# |
48044-02050 |
— | ||
|
48510
|
48510
48510-A9220 Absorber Assy, Shock, Front Rh[05.2002 -] ZZE137 マーク ４８５１０−ＡＧ０４０; ZZE136 マーク ４８５１０−ＡＧ０４０,Ｐ２１５／５０ＺＲ１７ ７Ｊ ＡＬ |
48510-A9220 |
US $330.51 |
||
| replacement | |||||
|
48510
|
48510
48510-A9340 Absorber Assy, Shock, Front Rh[05.2002 -] ZZE137 マーク ４８５１０−ＡＧ０４０; ZZE136 マーク ４８５１０−ＡＧ０４０,Ｐ２１５／５０ＺＲ１７ ７Ｊ ＡＬ |
48510-A9340 |
US $330.51 |
||
|
48520
|
48520
48520-A9140 Absorber Assy, Shock, Front Lh[05.2002 -] ZZE137 マーク ４８５２０−ＡＧ０４０; ZZE136 マーク ４８５２０−ＡＧ０４０,Ｐ２１５／５０ＺＲ１７ ７Ｊ ＡＬ |
48520-A9140 |
US $330.51 |
||
| replacement | |||||
|
48520
|
48520
48520-A9200 Absorber Assy, Shock, Front Lh[05.2002 -] ZZE137 マーク ４８５２０−ＡＧ０４０; ZZE136 マーク ４８５２０−ＡＧ０４０,Ｐ２１５／５０ＺＲ１７ ７Ｊ ＡＬ |
48520-A9200 |
US $330.51 |
||
|
48603
|
48603
48609-01050 Support Sub-Assy, Front Suspension, Rh[05.2002 -] ZZE13# |
48609-01050 |
US $234.26 |
||
|
48603C
|
48603C
90303-22002 Seal, Dust(For Front Suspension Support)[05.2002 -] ZZE13# |
90303-22002 |
US $3.20 |
||
|
48603D
|
48603D
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[05.2002 -] ZZE13# |
90179-14015 |
from US $1.93 |
||
|
48609
|
48609
48609-01050 Support Sub-Assy, Front Suspension, Rh[05.2002 -] ZZE13# |
48609-01050 |
US $234.26 |
||
|
48609D
|
48609D
90303-22002 Seal, Dust(For Front Suspension Support)[05.2002 -] ZZE13# |
90303-22002 |
US $3.20 |
||
|
48609E
|
48609E
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[05.2002 -] ZZE13# |
90179-14015 |
from US $1.93 |
||
|
48684A
|
48684A
48684-01010 Cover, Front Suspension Support Dust, Rh[05.2002 - 01.2003] ZZE13# |
48684-01010 |
US $13.25 |
||
| replacement | |||||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[05.2002 - 01.2003] ZZE13# |
48684-52010 |
US $9.60 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[01.2003 -] ZZE13# |
48684-52010 |
US $9.60 |
||
|
48684B
|
48684B
48684-01010 Cover, Front Suspension Support Dust, Rh[05.2002 - 01.2003] ZZE13# |
48684-01010 |
US $13.25 |
||
| replacement | |||||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[05.2002 - 01.2003] ZZE13# |
48684-52010 |
US $9.60 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[01.2003 -] ZZE13# |
48684-52010 |
US $9.60 |
||
|
48810
|
48810
48820-02030
Front Stabilizer Link Assy
[05.2002 -] ZZE13# |
48820-02030 |
— | ||
|
48811
|
48811
48811-AB010 Bar, Stabilizer, Front[05.2002 -] ZZE136,137 |
48811-AB010 |
US $182 |
||
| replacement | |||||
|
48811
|
48811
48811-AB011 Bar, Stabilizer, Front[05.2002 -] ZZE136,137 |
48811-AB011 |
US $113.57 |
||
|
48815
|
48815
48815-02100
Bush, Front Stabilizer Bar, No.1
[05.2002 -] ZZE13# |
48815-02100 |
— | ||
|
48820A
|
48820A
90179-12151 Nut(For Front Stabilizer Link)[05.2002 -] ZZE13# |
90179-12151 |
from US $0.92 |
||
|
48820B
|
48820B
48820-02030
Front Stabilizer Link Assy
[05.2002 -] ZZE13# |
48820-02030 |
— | ||
|
48824A
|
48824A
48824-02030 Bracket, Front Stabilizer, No.1 Rh[05.2002 -] ZZE13# |
48824-02030 |
US $9.32 |
||
| replacement | |||||
|
48824A
|
48824A
48824-06020
Bracket, Stabilizer, Front
[05.2002 -] ZZE13# |
48824-06020 |
— | ||
|
48829A
|
48829A
48824-02030 Bracket, Front Stabilizer, No.1 Rh[05.2002 -] ZZE13# |
48824-02030 |
US $9.32 |
||
| replacement | |||||
|
48829A
|
48829A
48824-06020
Bracket, Stabilizer, Front
[05.2002 -] ZZE13# |
48824-06020 |
— | ||
|
90119A0180
|
90119A0180
90119-A0180
New Genuine Part
|
90119-A0180 |
— | ||
|
9017808010
|
9017808010
90178-08010 Nut(For Front Suspension Support) |
90178-08010 |
US $2.24 |
||
