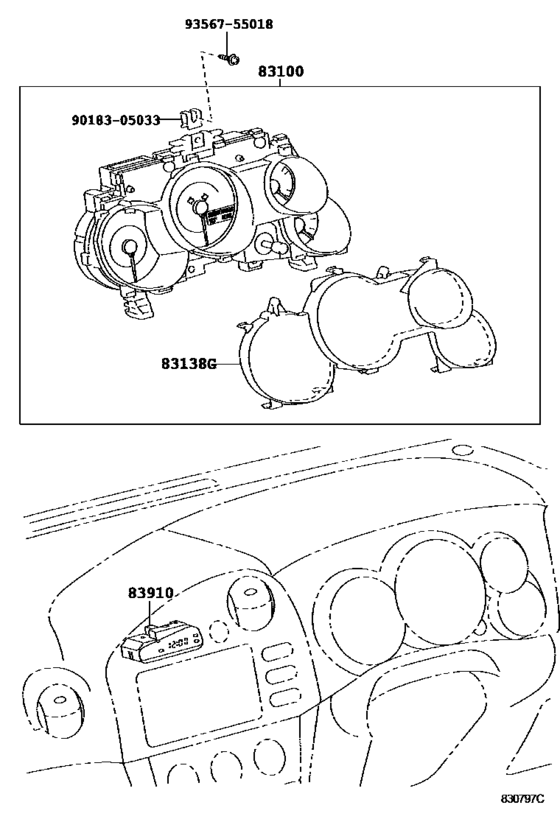

Meter ([05.2002 - ] (0205- )) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-01100 Meter Assy, Combination[05.2002 - 05.2003] ZZE137..4FC |
83800-01100 |
US $1,284.19 |
||
|
83100
|
83100
83800-01170 Meter Assy, Combination[05.2003 -] ZZE137..4FC |
83800-01170 |
US $1,287.10 |
||
|
83138G
|
83138G
83852-01030
Glass, Combination Meter
[05.2002 -] ZZE13# |
83852-01030 |
— | ||
|
83910
|
83910
83910-01010 Clock Assy[05.2002 -] ZZE13# |
83910-01010 |
US $425.15 |
||
|
9018305033
|
9018305033
90183-05033 NUT |
90183-05033 |
US $1.28 |
||
|
9356755018
|
9356755018
93567-55018
New Genuine Part
|
93567-55018 |
— | ||
| replacement | |||||
|
9356755018
|
9356755018
93568-55018 SCREW |
93568-55018 |
from US $0.62 |
||
