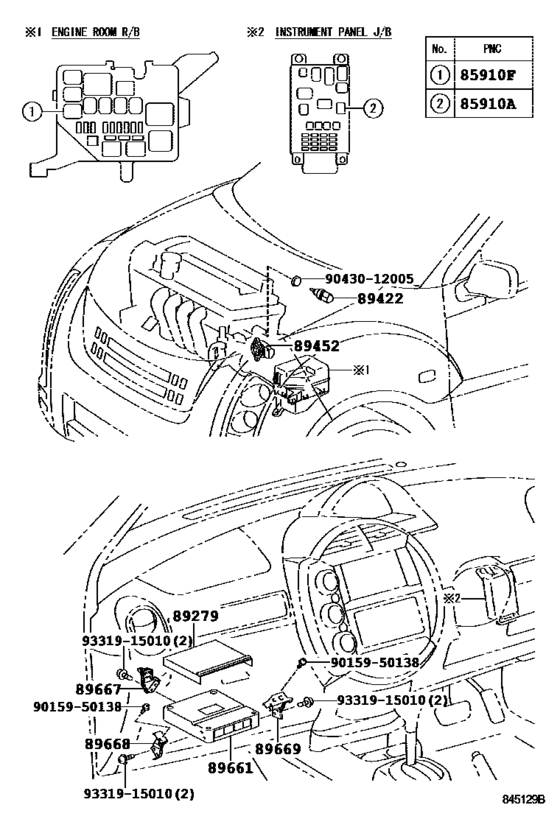

Electronic Fuel Injection System ([09.2002 - ] (0209- )) Diagram Toyota WILL
- Year
- 2002 - 2005
- Sales region
- Japan
- Frame
- NCP75
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- Model
- WILL CYPHA
- From
- 09.2002
- To
- 07.2005
- Vehicle Model
- WILL CYPHA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90987-02012 Relay, Ignition, No.1[09.2002 - 07.2005] NCP7# |
90987-02012 |
from US $27.85 |
||
|
85910F
|
85910F
90987-02022 Relay, Starter Cut[09.2002 - 07.2005] NCP7# |
90987-02022 |
from US $54 |
||
|
89279
|
89279
89279-52100 Cover, Engine Control Computer[09.2002 -] NCP7# |
89279-52100 |
US $3.64 |
||
|
89422
|
89422
89422-16010 Sensor, Water Temperature (For E.f.i.)[09.2002 -] NCP7# ＤＥＮＳＯ |
89422-16010 |
from US $36.63 |
||
|
89422
|
89422
89422-22030 Sensor, Water Temperature (For E.f.i.)[09.2002 -] NCP7# ＮＴＣ |
89422-22030 |
from US $52.51 |
||
|
89452
|
89452
89452-20130 Sensor, Throttle Position (For E.f.i.)[09.2002 - 07.2005] NCP7# |
89452-20130 |
from US $66.88 |
||
|
89661
|
89661
89661-5C090 Computer, Engine Control[09.2002 -] NCP75 |
89661-5C090 |
US $1,499.68 |
||
|
89667
|
89667
89667-52130 Bracket, Engine Control Computer[09.2002 -] NCP7# |
89667-52130 |
US $6.70 |
||
|
89668
|
89668
89668-52140 Bracket, Engine Control Computer, No.2[09.2002 -] NCP7# |
89668-52140 |
US $5.82 |
||
|
89669
|
89669
89669-52090 Bracket, Engine Control Computer, No.3[09.2002 -] NCP7# |
89669-52090 |
US $7.13 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.12 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
